The compression union is highly dependable and an economical choice of fitting within multiple applications including heating and other industrial markets. One-piece brass body provides strength, durability and longer-lasting performance. This fitting features a vibration-resistant construction. It resists mechanical pullout and is designed for high pressure service. Designed for use with potable and non-potable water, instrumentation, hydraulic and pneumatic systems.

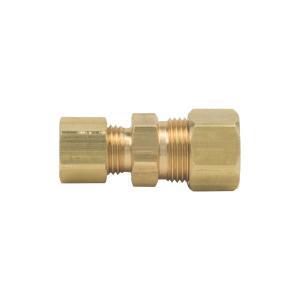

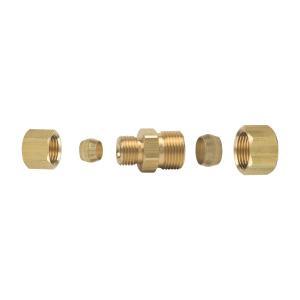

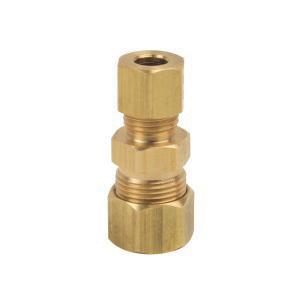

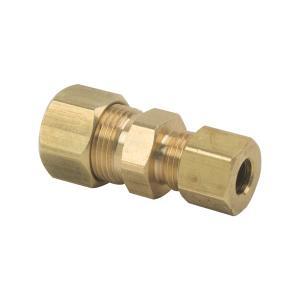

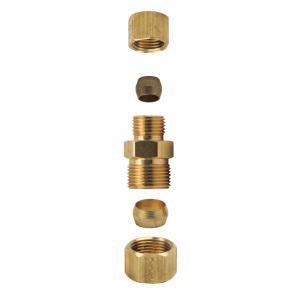

BrassCraft® Compression Reducing Union, 62 Series, Union Fitting, Connection Size 1: 3/8 in, Connection Type 1: OD Tube, Connection Size 2: 1/4 in, Connection Type 2: OD Tube, Tube|Tube Connection, Brass, Material Construction: Brass, Finish: Rough, 1/2 in Hex, For Use With: Aluminum, Copper and Plastic Tubes, 1.46 in L, 200 psi, -65 to 250 deg F, Additional Information: 0.032 in THK Tube Wall
| Additional Information | : | 0.032 in THK Tube Wall |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | OD Tube |
| Connection Type 2 | : | OD Tube |
| Connection Type | : | Tube|Tube |
| Dimensions | : | 1.46 in L |
| Finish | : | Rough |
| Fitting Type | : | Union |
| For Use With | : | Aluminum, Copper and Plastic Tubes |
| Hex Size | : | 1/2 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Series | : | 62 Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 3/8 x 1/4 in |
- One-piece brass body provides strength, durability and longer-lasting performance
- Plastic tubing requires NPT insert and NPT sleeve
- Not intended for steel tubing
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
