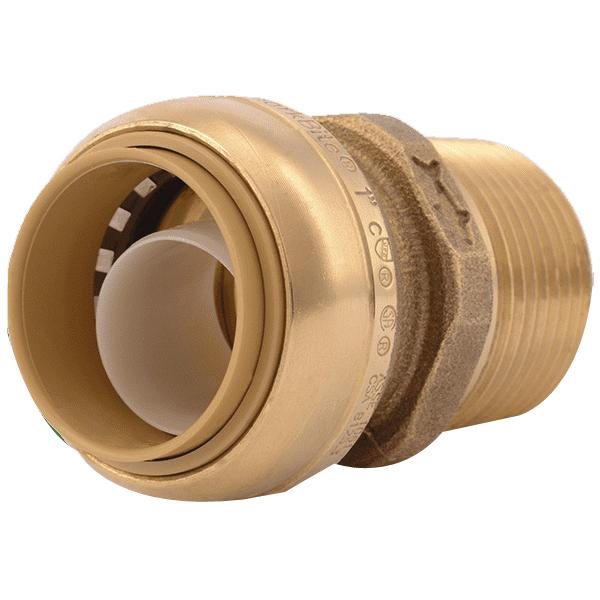

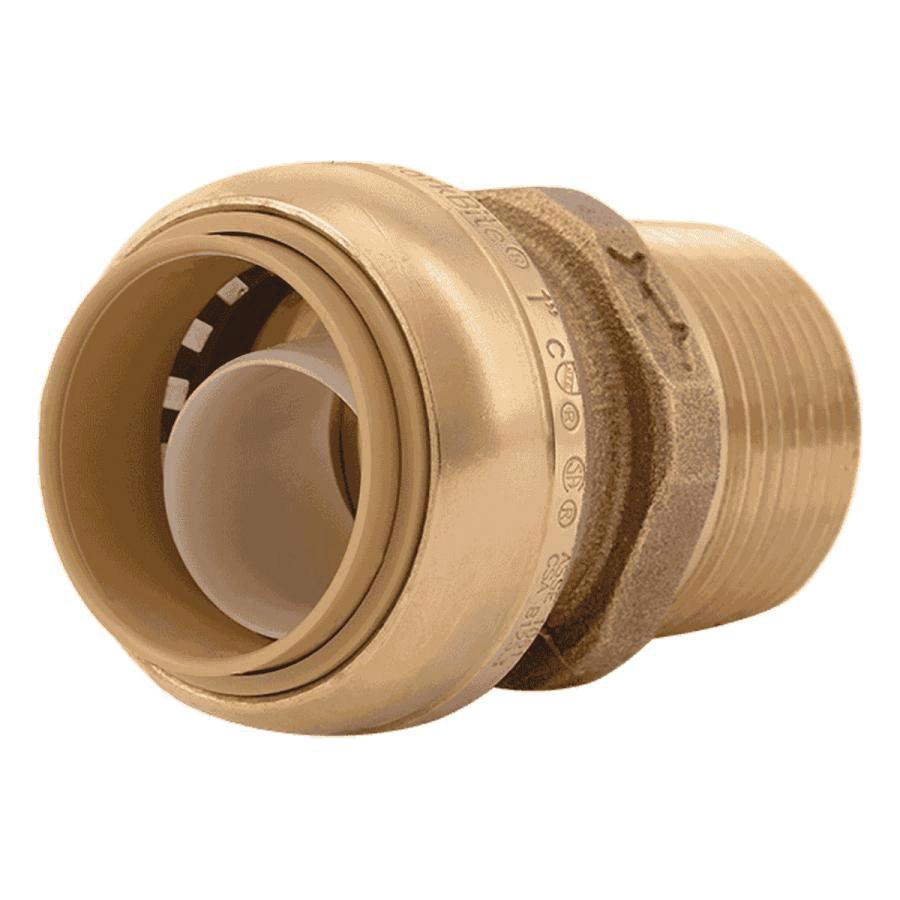

SharkBite™ U140LF 75576
SharkBite™ U140LF Straight Male Adapter, 1 in Push-to-Connect x 1 in MNPT, Brass, Chrome-Plated/Natural Brass
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: SharkBite™
- Part#: 75576
- MPN: U140LF
- UPC: 697285465190
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
Innovative push-to-connect design makes for quick and easy transition between CTS pipe to an FNPT threaded connection. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
SharkBite™ Straight Male Adapter, Adapter Fitting, Connection Size 1: 1 in, Connection Type 1: Push-to-Connect, Connection Size 2: 1 in, Connection Type 2: MNPT, Push-Fit|MNPT Connection, Brass, Material Construction: DZR Lead-Free Brass, Finish: Chrome-Plated/Natural Brass, For Use With: Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes, 2.48 in L, 200 psi, 200 deg F
| Additional Information | : | Domestic |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Push-to-Connect |
| Connection Type 2 | : | MNPT |
| Connection Type | : | Push-Fit|MNPT |
| Dimensions | : | 2.48 in L |
| Finish | : | Chrome-Plated/Natural Brass |
| Fitting Type | : | Adapter |
| For Use With | : | Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes |
| Material Construction | : | DZR Lead-Free Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 200 deg F |
- No special tools, crimping, glue or soldering is needed
- Can be installed on wet lines
- Approved for underground and behind the wall applications with no access panels (wrapping required when burying underground)
- Can be easily removed using a disconnect clip or disconnect tongs (both sold separately)
- Remove using a disconnect clip or disconnect tongs
- Large diameter fittings (1-1/4 to 2 in) require a stiffener when connecting to PEX pipe
