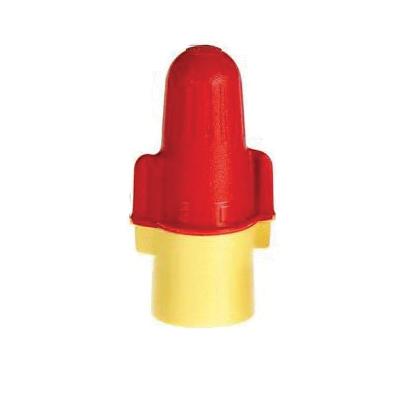

3M™ Performance Plus™ wire connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus™ wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
3M™ Performance Plus™ Wire Connector, 22 to 8 AWG Wire, 600 V, Solid, Stranded Cable, Twist-On Connection Type, Insulated Insulated/Non-Insulated, Polypropylene/Thermoplastic Elastomer Insulation, Plastic, Red/Yellow, 1.43 in Length, 0.76 in Width, 221 deg F
| Cable Type | : | Solid, Stranded |
| Color | : | Red/Yellow |
| Connection Type | : | Twist-On |
| Insulated/Non-Insulated | : | Insulated |
| Insulation Material | : | Polypropylene/Thermoplastic Elastomer |
| Length | : | 1.43 in |
| Material | : | Plastic |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 600 V |
| Width | : | 0.76 in |
| Wire Size | : | 22 to 8 AWG |
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color-coded - one connector does the job of two traditional connectors in the majority of applications
