Innovative push-to-connect design makes for quick and easy installation when connecting two-pieces of different sized pipe. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

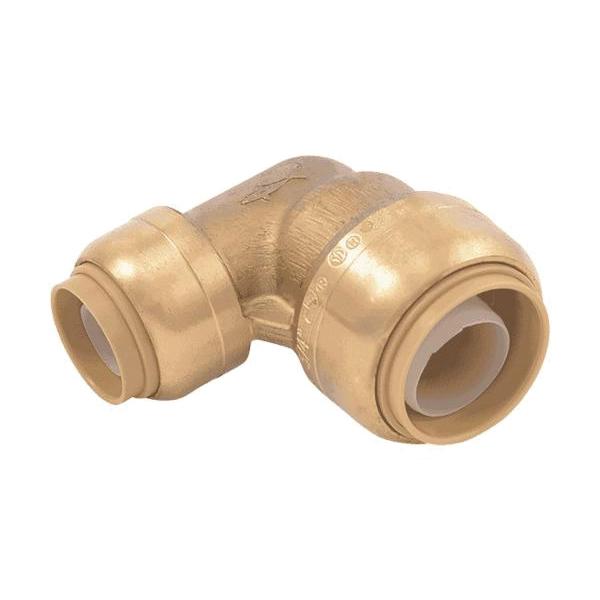

SharkBite™ Reducing Elbow, Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Push-to-Connect, Connection Size 2: 1/2 in, Connection Type 2: Push-to-Connect, Push-Fit|Push-Fit Connection, Brass, Material Construction: DZR Lead-Free Brass, Finish: Chrome-Plated/Natural Brass, For Use With: Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes, 200 psi, 200 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Push-to-Connect |
| Connection Type 2 | : | Push-to-Connect |
| Connection Type | : | Push-Fit|Push-Fit |
| Dimensions | : | 1.37 in L |
| Finish | : | Chrome-Plated/Natural Brass |
| Fitting Type | : | Elbow |
| For Use With | : | Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes |
| Material Construction | : | DZR Lead-Free Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 200 deg F |
- No special tools, crimping, glue or soldering is needed
- Can be installed on wet lines
- Approved for underground and behind the wall applications with no access panels (wrapping required when burying underground)
- Remove using a disconnect clip or disconnect tongs (both sold separately)
