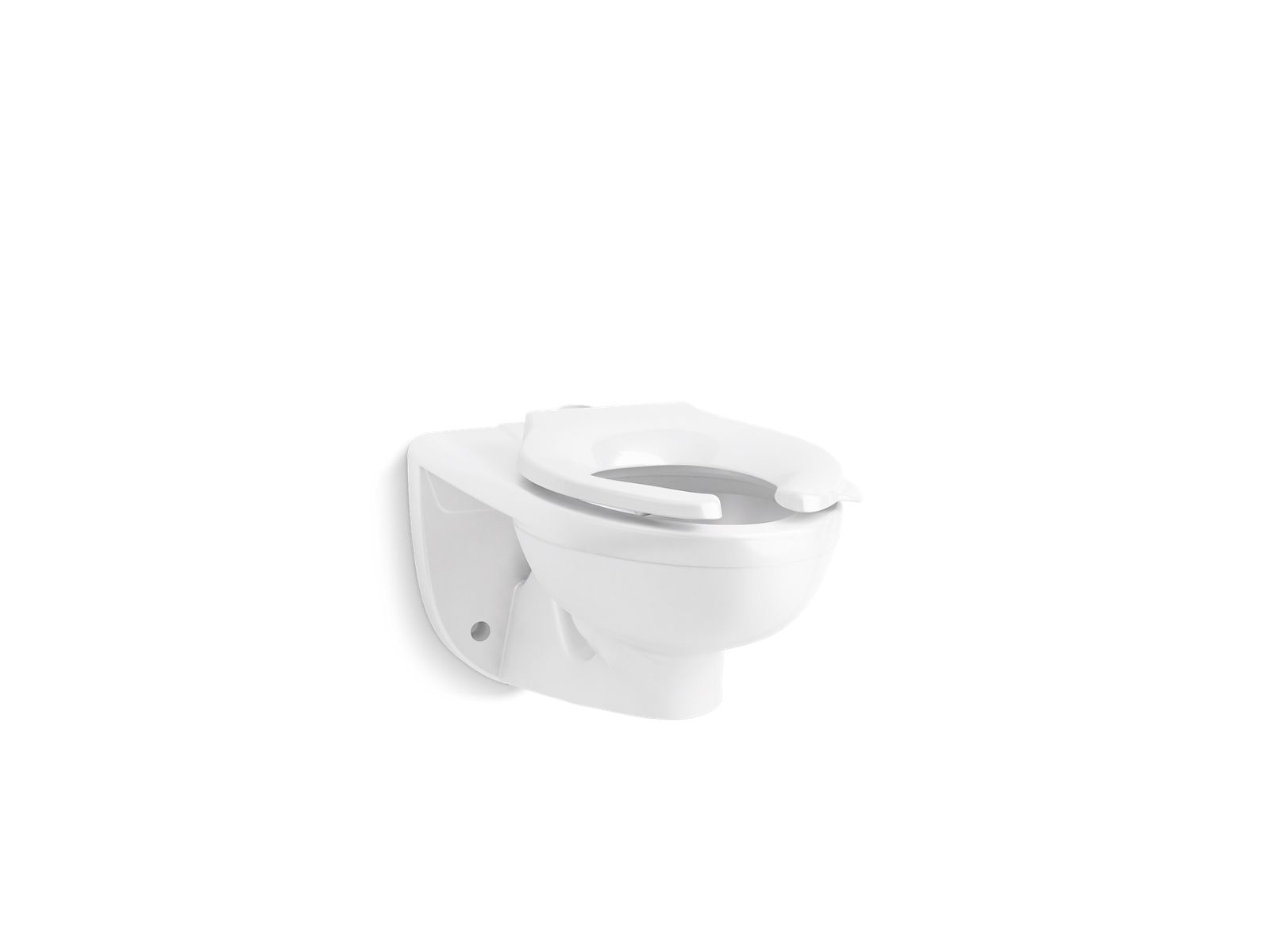

A redesign of the Kingston™ bowl, the Kingston™ Ultra is an all-purpose flushometer bowl with robust flushing capability. The redesign replaces the flushing engine with the Ultra platform, allowing this bowl to operate at 1.0 to 1.6 gpf. This platform delivers strong performance even at lower than anticipated incoming water pressure or flow. This redesign also introduces a more contemporary aesthetic to complement any decor. The toilet's footprint is designed to cover the current Kingston™ footprint and all major wall-mount toilets on the market.
Kohler® Flushometer Bowl, Kingston™ Ultra Collection, Theme/Style: Contemporary, Elongated Shape, Flushometer Valve Siphon Flush, 1.1 to 1.6 gpf Flush Rate, 2-1/8 in Trapway, 11 x 8-1/4 in Water Surface Area, 1-1/2 in Spud, 5-13/16 in Rim Height, Minimum Water Pressure: 25 psi, Wall Mounting, For Use With: Wall Hung Toilets, Vitreous China, White, 26 in L x 15-11/16 in W x 13-7/16 in H, Additional Information: Top Spud
| Additional Information | : | Top Spud |
| Collection | : | Kingston��� Ultra |
| Color | : | White |
| Dimensions | : | 26 in L x 15-11/16 in W x 13-7/16 in H |
| Finish | : | White |
| Flush Rate | : | 1.1 to 1.6 gpf |
| Flush Type | : | Flushometer Valve Siphon |
| Material | : | Vitreous China |
| Minimum Water Pressure | : | 25 psi |
| Mounting Type | : | Wall |
| Rim Height | : | 5-13/16 in |
| Shape | : | Elongated |
| Spud Size | : | 1-1/2 in |
| Suitable For Use With | : | Wall Hung Toilets |
| Theme/Style | : | Contemporary |
| Trapway Size | : | 2-1/8 in |
| Water Surface Area | : | 11 x 8-1/4 in |
- Elongated bowl offers added room and comfort
- Siphon jet
- 1.0 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf), or 1.6 gpf (6.0 lpf) depending on flushometer specified
- 11" x 8-1/4" (279 mm x 210 mm) water surface
- 1-1/2" (38 mm) top spud
Instruction/Installation Manual
