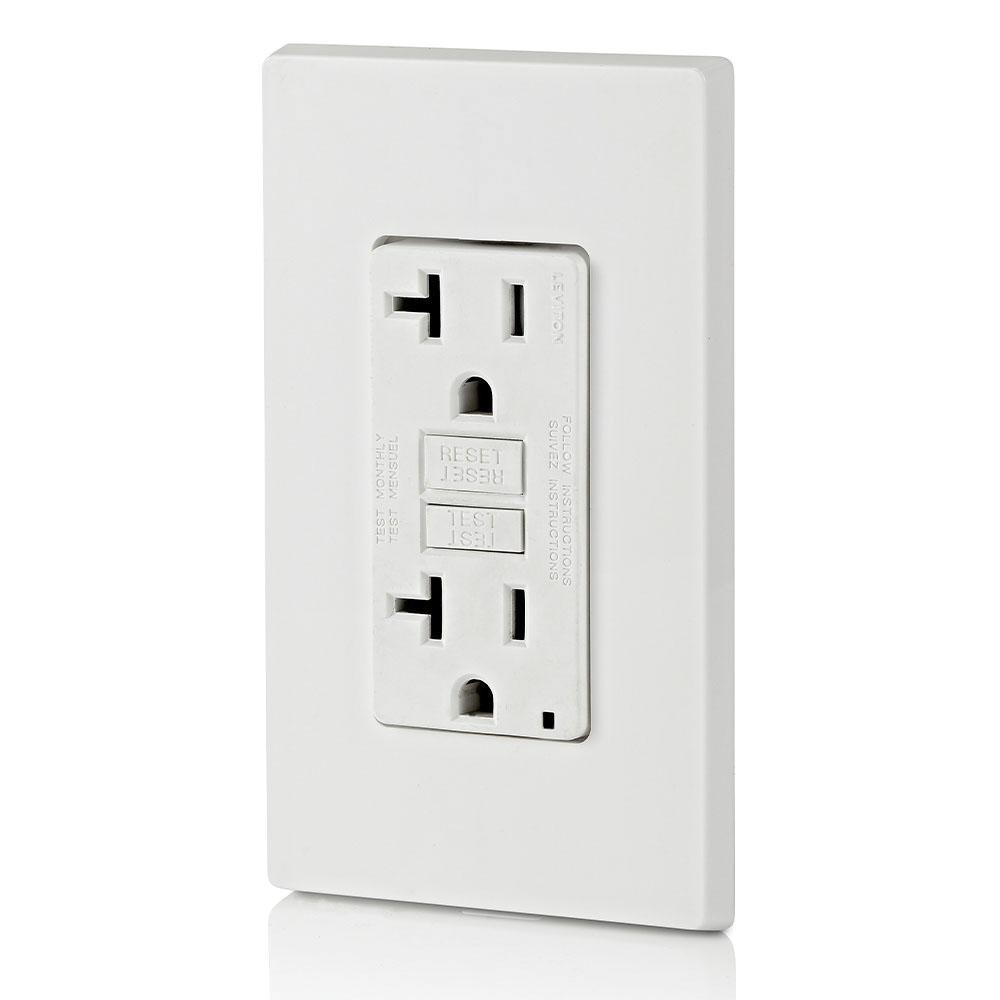

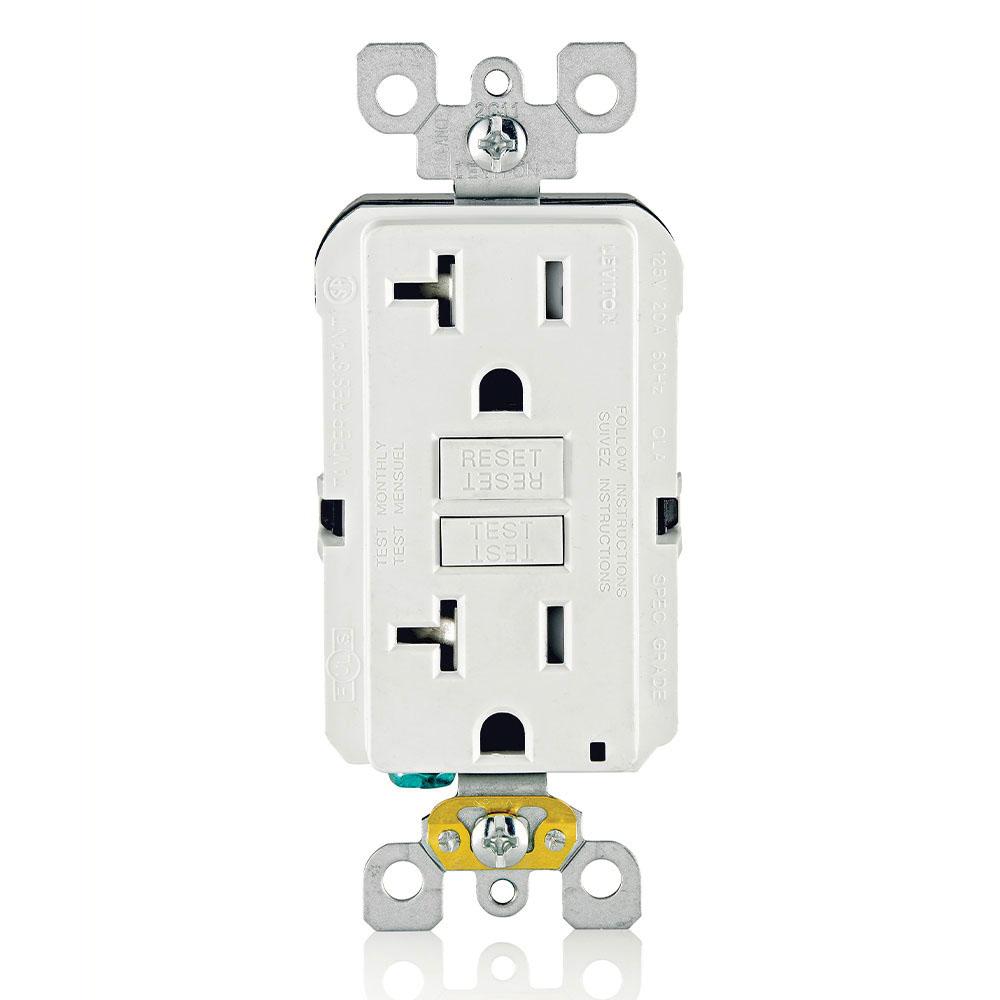

Leviton® GFCI Receptacle Outlet, 125 VAC, 20 A, 1 hp, 10 kA Short Circuit, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA Rating: NEMA 5-20R, Back Wired, Side Wired Terminal, Polycarbonate Body, Brass Contact, White, -35 to 66 deg C
| Amperage Rating | : | 20 A |
| Body Material | : | Polycarbonate |
| Color | : | White |
| Contact Material | : | Brass |
| Grounding | : | Self-Grounding |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Power Rating | : | 1 hp |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Wire Size | : | 14 to 10 AWG |
- Feed through, tamper-resistant, self test SmartlockPro slim GFCI, monochromatic
- Provides continuous ground fault protection detects and trips on actual ground fault even when self test is being conducted
- On initial power up, tests the GFCI within 3 s
- Auto-monitoring exceeds the UL requirement
- Auto-adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options, back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
