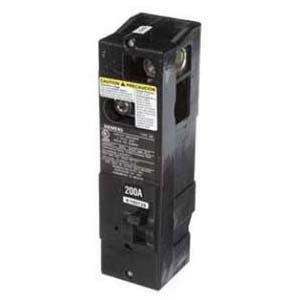

Siemens Molded Case Circuit Breaker, 200 A, 120/240 VAC, 60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, QS Frame, Thermal Magnetic Trip, Load Lug Terminal, 3 AWG to 300 kcmil Wire, Plug-On Mounting, 40 deg C
| Amperage Rating | : | 200 A |
| Frame Type | : | QS |
| Frequency Rating | : | 60 Hz |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug-On |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Temperature Rating | : | 40 deg C |
| Terminal Type | : | Load Lug |
| Trip Type | : | Thermal Magnetic |
| Voltage Rating | : | 120/240 VAC |
| Wire Size | : | 3 AWG to 300 kcmil |
