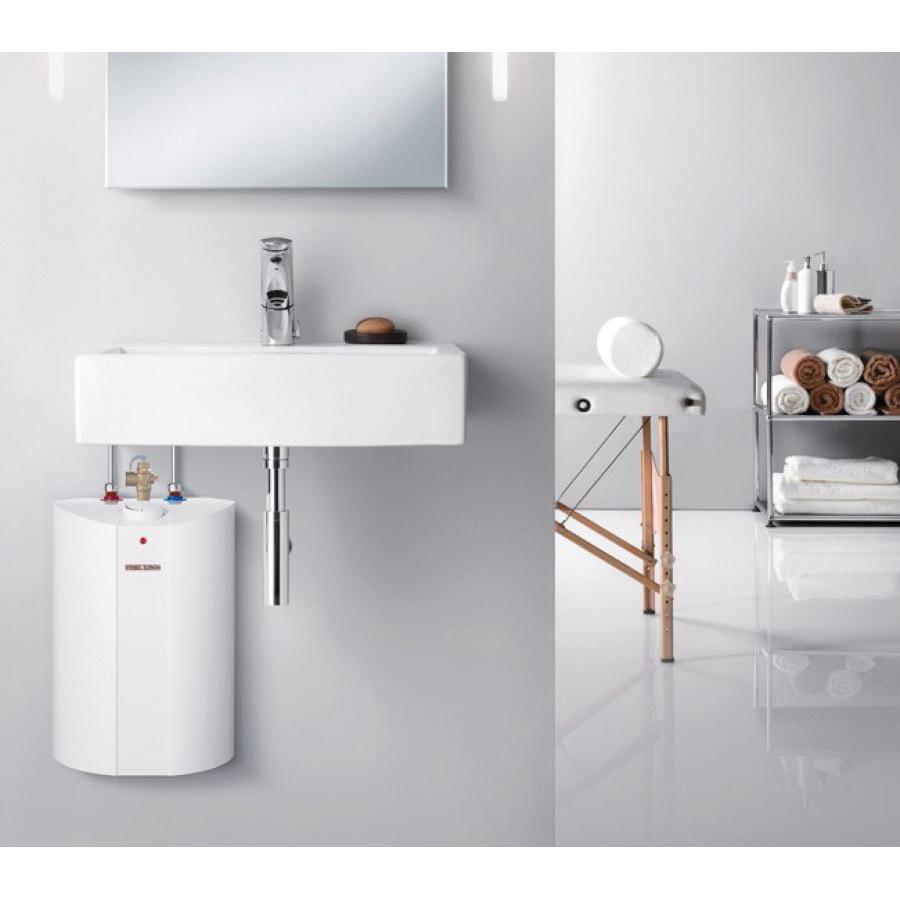

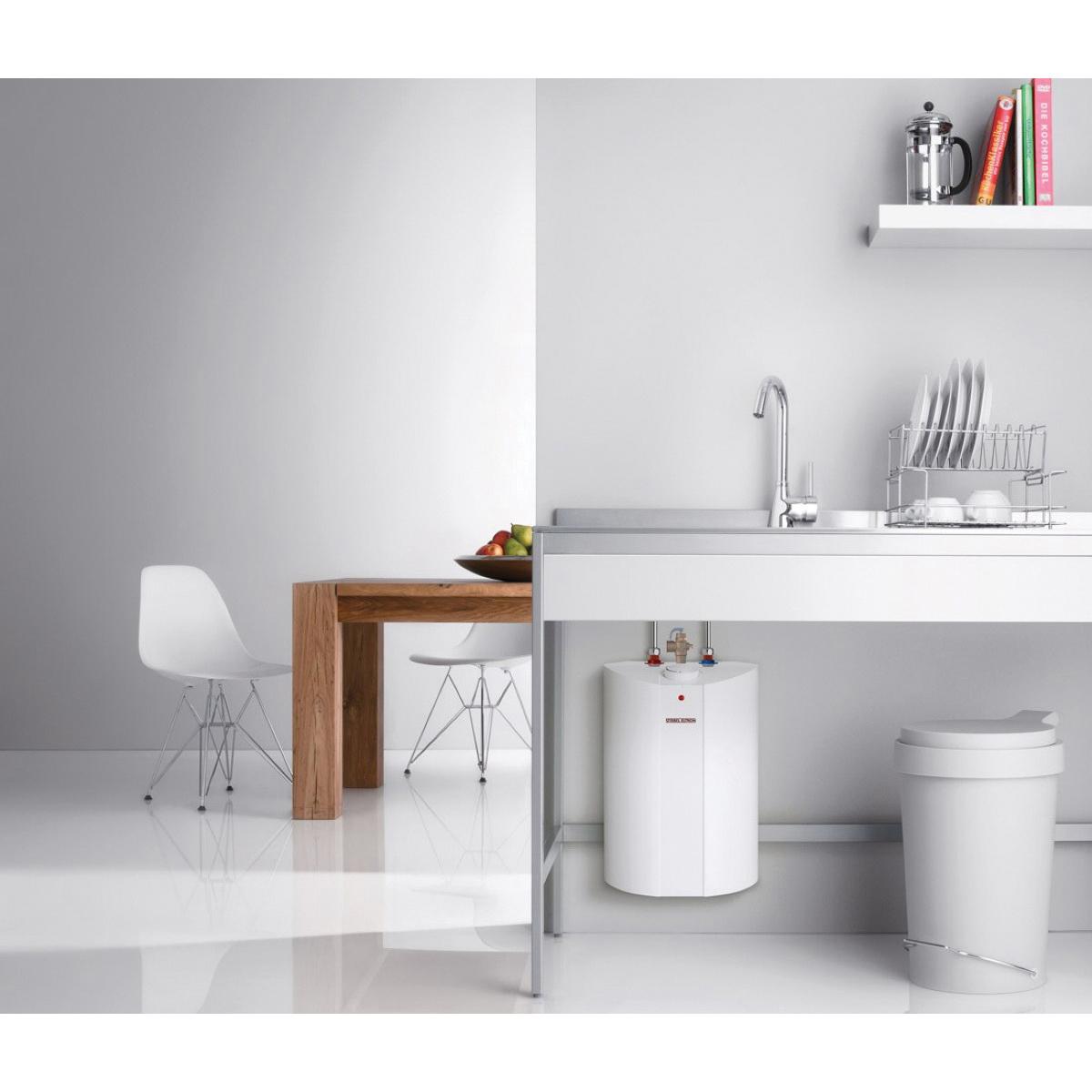

SHC mini tank installs right under or near a sink and provides hot water for hand washing or kitchen-type applications either as a stand alone hot water source or as a booster for remote central tank. Lightweight and compact the SHC-mounts to the wall (bracket included), draws 11.3 A and plugs into a 110 to 120 V outlet.

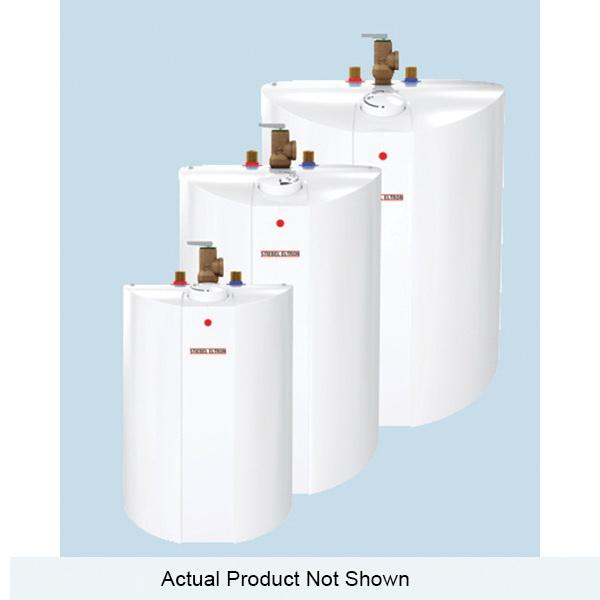

Stiebel Eltron Electric Water Heater, MiniTank™ Series, Model: SHC 4, 4 gal Capacity, 1300 W, 27 min Recovery Rate, 0.39 kW-hr/day Standby Loss, 99 % Efficiency, 11.3 A, 120 V, 50/60 Hz, 1 ph Phase, NPT Connection, 1/2 in Connection, 150 psi, Wall Mounting, Brass/Stainless Steel, Alpine White, Lead-Free, 140 deg F, 19-3/4 in H x 12-5/8 in W x 12-1/2 in D, Domestic/Import: Import
| Amperage Rating | : | 11.3 A |
| Capacity | : | 4 gal |
| Color | : | Alpine White |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Dimensions | : | 19-3/4 in H x 12-5/8 in W x 12-1/2 in D |
| Domestic/Import | : | Import |
| Efficiency | : | 99 % |
| Frequency Rating | : | 50/60 Hz |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Brass/Stainless Steel |
| Model | : | SHC 4 |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 1300 W |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 27 min |
| Series | : | MiniTank™ Series |
| Standby Loss | : | 0.39 kW-hr/day |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 120 V |
- Glass-lined tank
- 1/2 in NPT brass water connection
- Stainless steel dip tube
- Reduces standby losses
