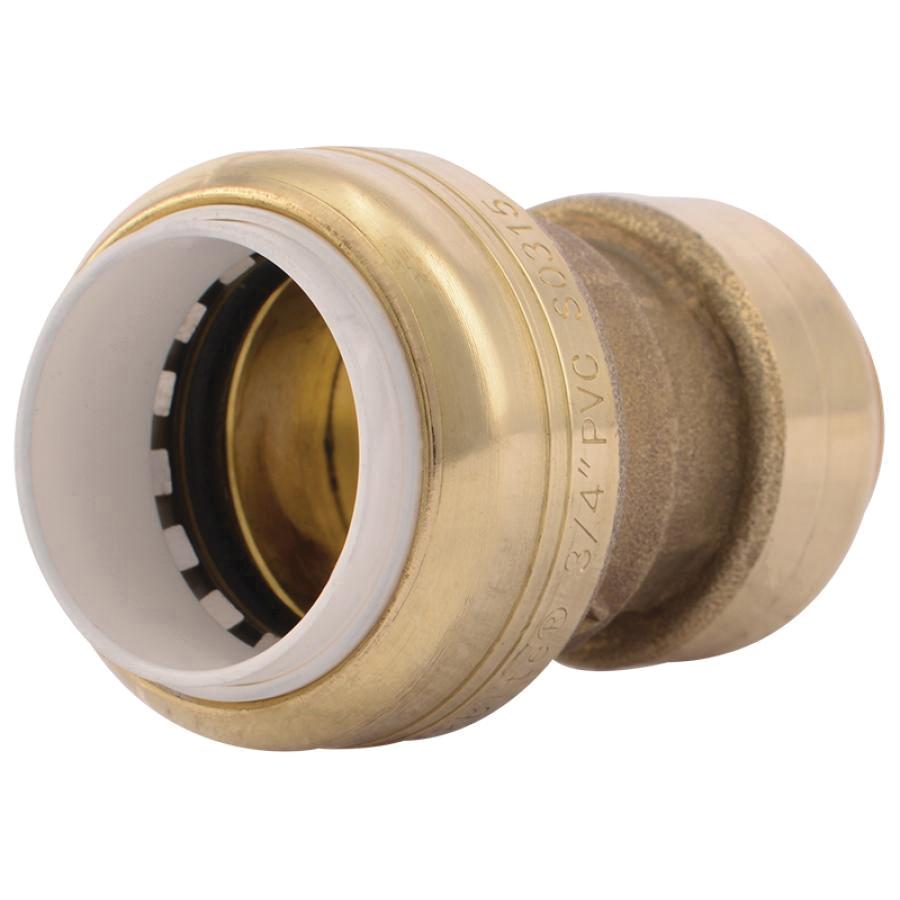

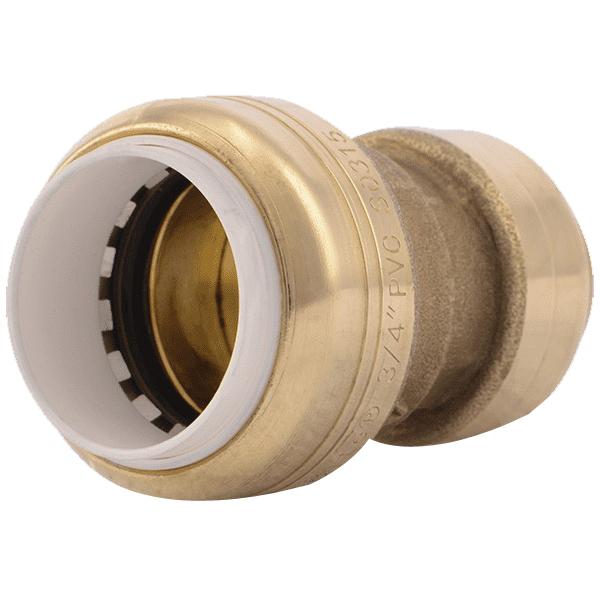

Fitting has color coordinated collars on each end to identify which side goes with which pipe - the white collar end is compatible with SCH 40, 80 and 120 PVC pipe and the tan collar end is compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
SharkBite™ Transition Coupling, Coupling Fitting, Connection Size 1: 3/4 in, Connection Type 1: CTS, Connection Size 2: 3/4 in, Connection Type 2: Push-to-Connect, CTS|Push-Fit Connection, Brass, Material Construction: DZR Lead-Free Brass, Finish: Natural Brass, For Use With: Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes, 2.4 in L, 200 psi, 200 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | CTS |
| Connection Type 2 | : | Push-to-Connect |
| Connection Type | : | CTS|Push-Fit |
| Dimensions | : | 2.4 in L |
| Finish | : | Natural Brass |
| Fitting Type | : | Coupling |
| For Use With | : | Copper, CPVC, PEX, PE-RT and SDR 9 HDPE Pipes |
| Material Construction | : | DZR Lead-Free Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 200 deg F |
- Innovative push-to-connect design makes for quick and easy installation
- No special tools, crimping, glue or soldering is needed
- Can be installed on wet lines
- Remove if needed using disconnect clip (sold separately)
- Approved to be used behind walls without access panels
