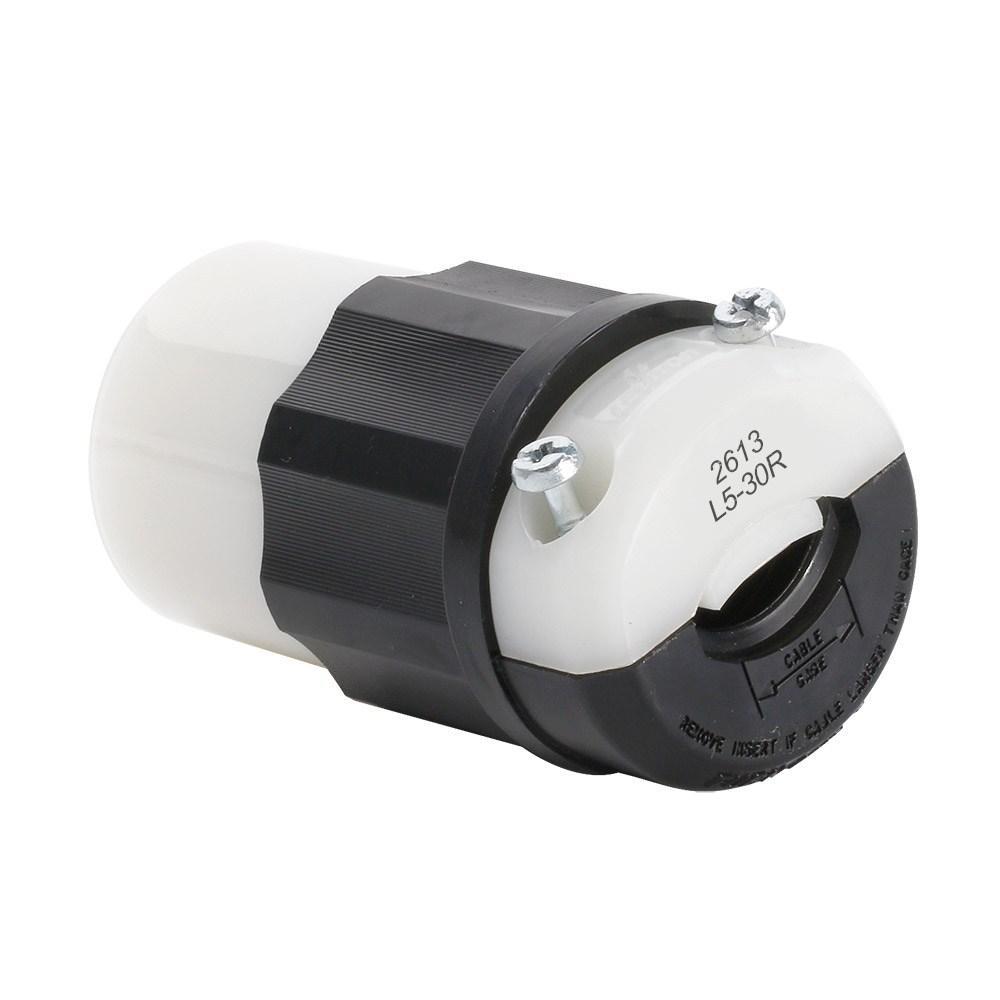

Leviton® Black & White® Locking Connector, 125 VAC, 30 A, 2 Poles, 3 Wires, 1 ph Phase, 16 to 8 AWG Wire, NEMA Rating: NEMA L5-30R, Screw Terminal, 2000 V Dielectric Strength, -40 to 60 deg C, Nylon Housing, Brass Contact, Black/White, 2.08 in Diameter, 3.53 in Height
| Amperage Rating | : | 30 A |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Diameter | : | 2.08 in |
| Dielectric Strength | : | 2000 V |
| Height | : | 3.53 in |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA L5-30R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125 VAC |
| Wire Size | : | 16 to 8 AWG |
- Leviton®'s Black & White® line of industrial-grade connectors offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
