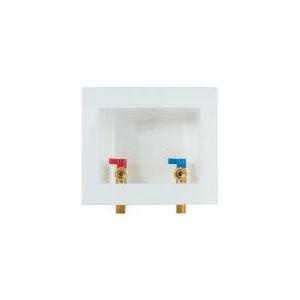

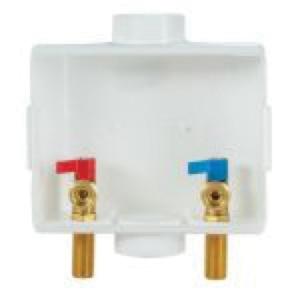

Designed for simple yet versatile installation, the Water-Tite® Econo box center drain washing machine outlet box is thoughtfully constructed to reduce labor for contractors and homeowners. This outlet box comes with pre-installed 1/4-turn brass valves and features a design that can be inverted for top-mount valves with a center drain. Thanks to a one-piece construction that includes a raised drip guard, any potential hose or valve leaks will be contained and sent directly down the drain instead of onto the laundry room wall and floor. The EZ Out test cap is raised for quick removal and the knockouts are oversized, so they won't fall down the drain. Featuring a one-piece design, this washing machine outlet box can be installed more quickly than separate drain and valve boxes. It comes with a snap-on faceplate that measures 10-3/16 in W x 8-13/16 in H and is interchangeable with DU-All outlet box faceplates. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
Water-Tite® Washing Machine Outlet Box, Model: W4700, 1/2 in, Sweat Connection, Top Mounting, For Use With: Dual Drain Washing Machines, Brass, 6-1/8 in H x 8-1/4 in W x 3-3/4 in D, Additional Information: 8-13/16 in H x 10-3/16 in W Faceplate Size
| Additional Information | : | 8-13/16 in H x 10-3/16 in W Faceplate Size |
| Color | : | White |
| Connection Type | : | Sweat |
| Dimensions | : | 6-1/8 in H x 8-1/4 in W x 3-3/4 in D |
| Domestic/Import | : | Domestic |
| Material | : | Brass |
| Model | : | W4700 |
| Mounting Type | : | Top |
| Size | : | 1/2 in |
| Suitable For Use With | : | Dual Drain Washing Machines |
- Box can be inverted for top-mount valves/center drain option
- Textured faceplate for aesthetic finish
- Valves pre-installed
- One-piece construction with raised drip guard contains potential leaks down the drain
- Raised EZ Out test caps allow for EZ removal
- Oversized KO's will not fall down drain
