Leviton®'s line of extra heavy-duty industrial-grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital-grade, etc., these industrial-grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

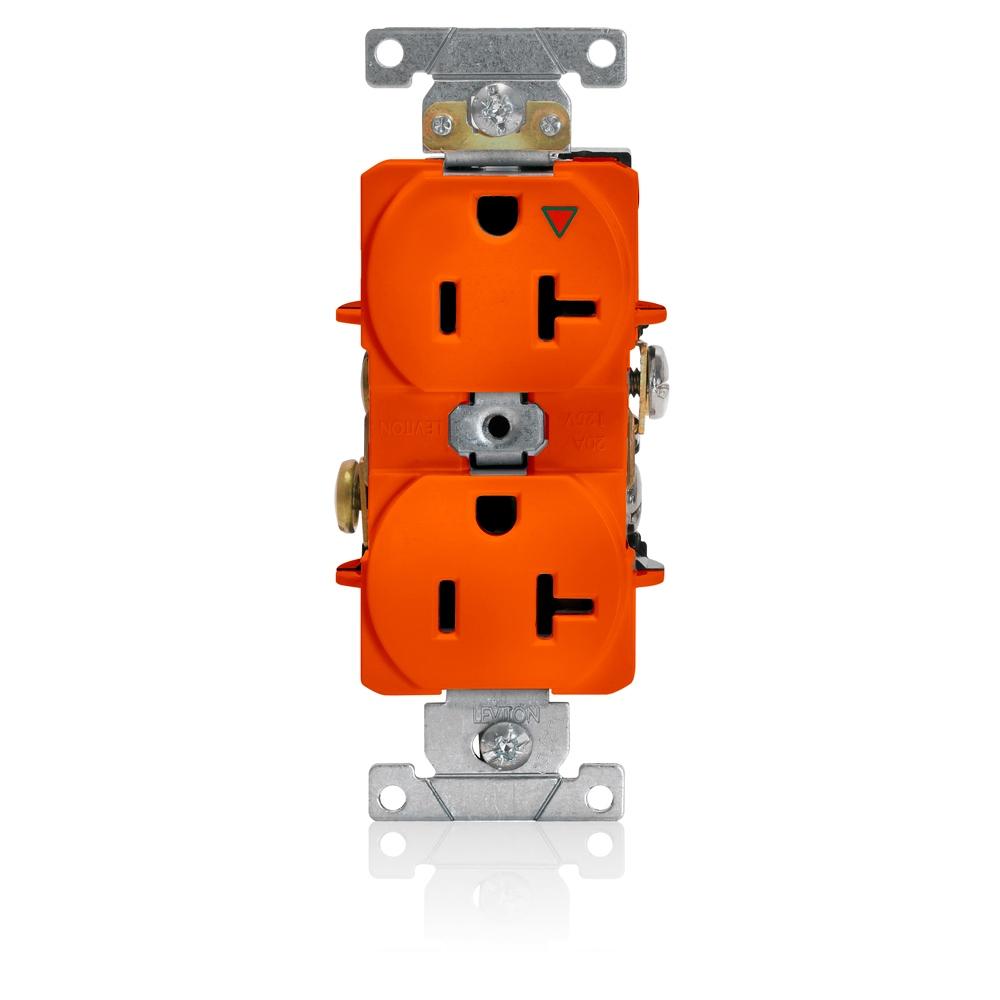

Leviton® Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, 1 ph Phase, 1 Gangs, Industrial, Specification Grade, NEMA Rating: NEMA 5-20R, Non-Indicating Indicators, 2000 V Dielectric Strength, Self-Grounding Grounding, Back Wired, Side Wired Terminal, Solid, Stranded Conductor, 14 to 10 AWG Conductor, Flush Mounting, Thermoplastic Nylon Housing, Phosphor Bronze Contact, Steel Strap, Orange, -40 to 60 deg C, 4.06 in Length, 1.41 in Width, 1.11 in Height
| Amperage Rating | : | 20 A |
| Color | : | Orange |
| Conductor Size | : | 14 to 10 AWG |
| Conductor Type | : | Solid, Stranded |
| Contact Material | : | Phosphor Bronze |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial, Specification |
| Grounding | : | Self-Grounding |
| HP Rating | : | 1 hp |
| Height | : | 1.11 in |
| Housing Material | : | Thermoplastic Nylon |
| Length | : | 4.06 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 5-20R |
| Number of Gangs | : | 1 |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Type of Indicators | : | Non-Indicating |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.41 in |
