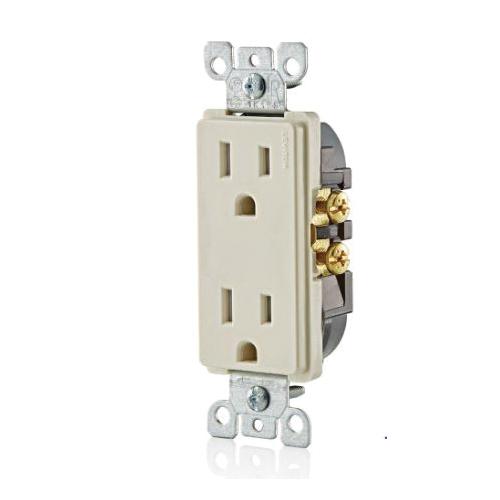

Decora® Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Residential Grade, NEMA Rating: NEMA 5-15R, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Screw Mounting, Thermoplastic Housing, Steel Strap, Light Almond, 0.98 in Length, 1.31 in Width, 4.2 in Height, Additional Information: Thermoplastic Face
| Additional Information | : | Thermoplastic Face |
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Grade | : | Residential |
| Grounding | : | Grounding |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic |
| Length | : | 0.98 in |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Terminal Type | : | Quick Wire Push-In Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.31 in |
- Quick wire push in and side wiring for easy installation
- Impact-resistant thermoplastic nylon construction
- Shallow depth for maximum wiring room

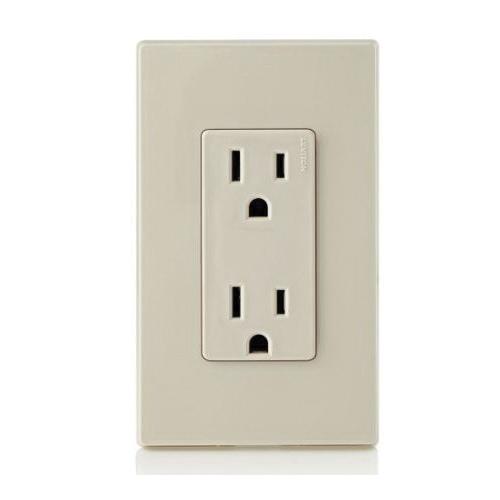

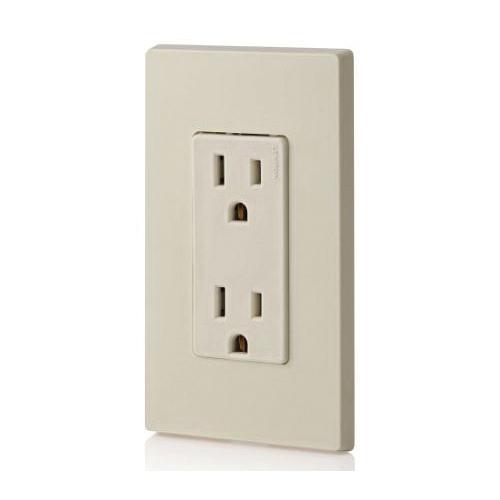

- For use with Leviton® Decora® wallplates
- Terminal screws accept up to 12 AWG copper or copper-clad wire
- Quickwire push in terminals accept #14 AWG solid copper wire only
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
