GB®'s WINGGARD® twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

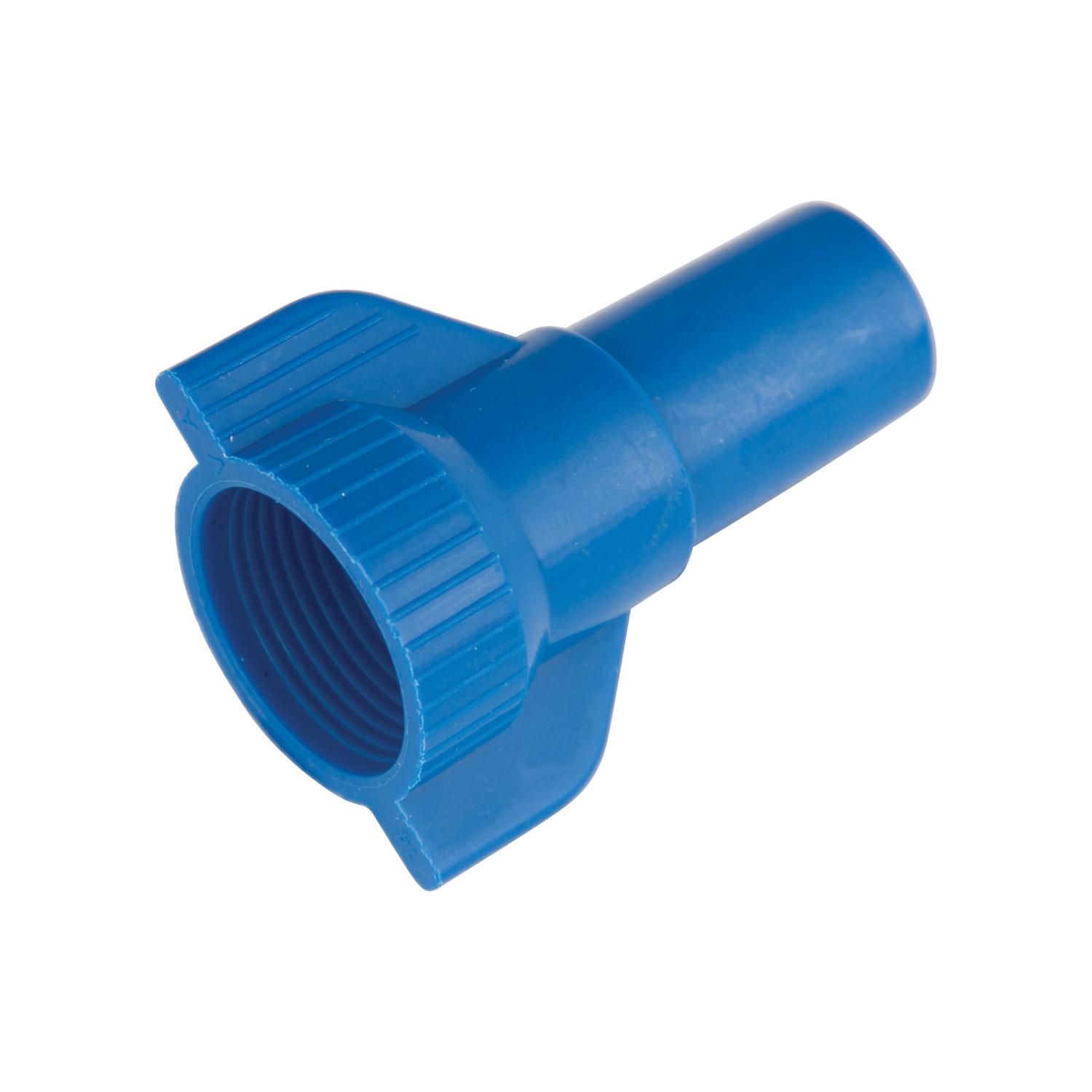

GB® WINGGARD® High Leverage Wire Connector, Model: 89, 14 to 6 AWG Wire, 600 V, Twist-On Connection, Screw Mounting, Thermoplastic, Finish: Zinc-Plated, Blue, 1-1/2 in Length, 1-1/4 in Width, 221 deg F
| Color | : | Blue |
| Connection Type | : | Twist-On |
| Finish | : | Zinc-Plated |
| Length | : | 1-1/2 in |
| Material | : | Thermoplastic |
| Model | : | 89 |
| Mounting Type | : | Screw |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 600 V |
| Width | : | 1-1/4 in |
| Wire Size | : | 14 to 6 AWG |
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage

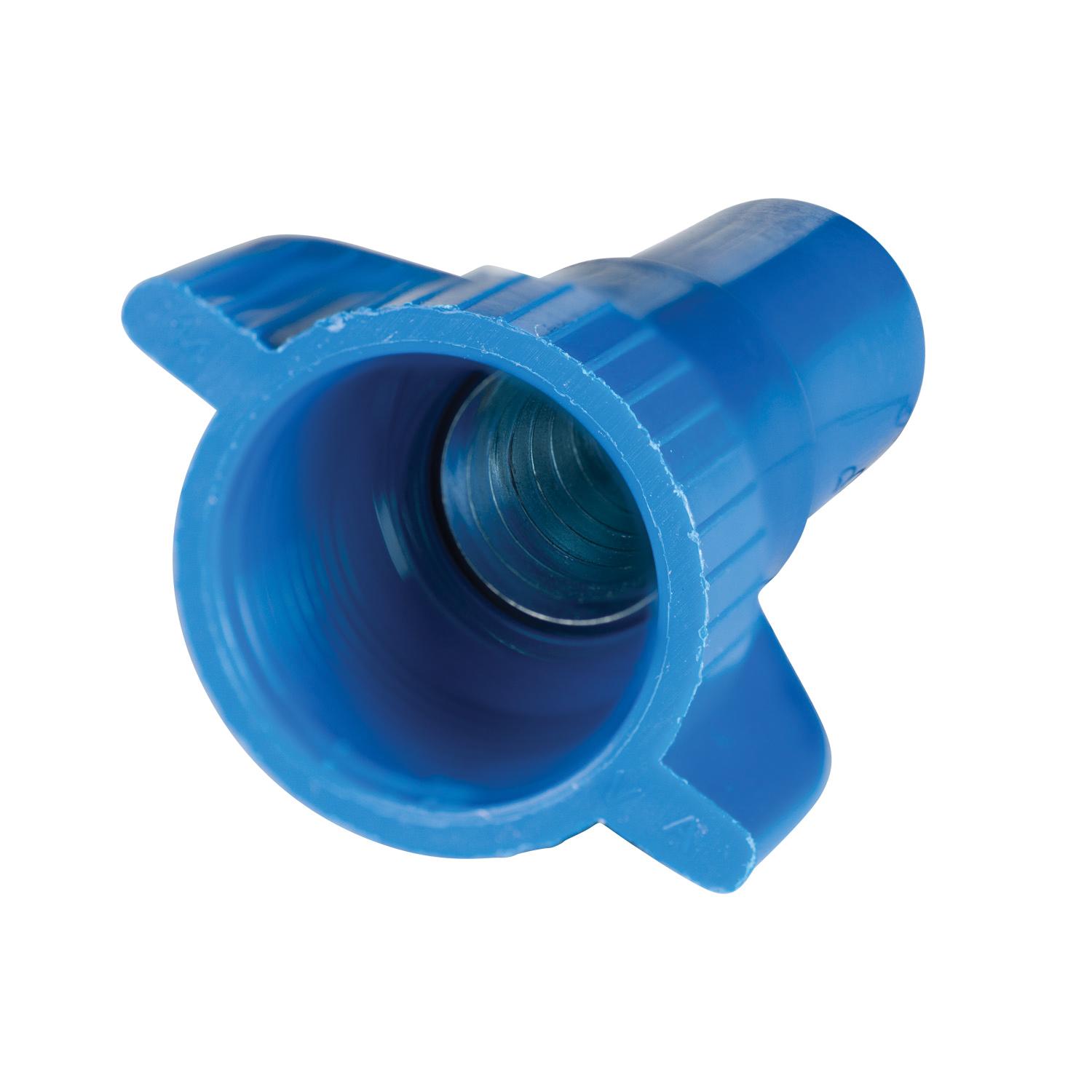

- Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 degrees Celsius/221 degrees Fahrenheit
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
