BrassCraft® 68-14-12X 466

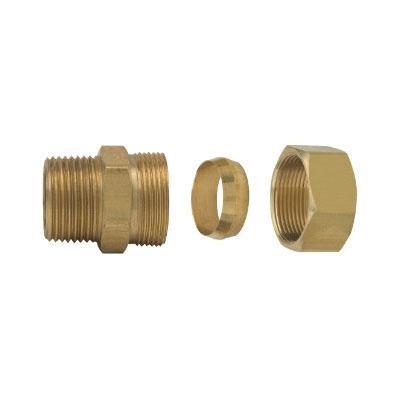

BrassCraft® 68X Series 68-14-12X Compression Male Reducing Adapter, 7/8 in OD Tube x 3/4 in MIP, Brass, Rough
- Manufacturer: BrassCraft Manufacturing Company
- Brand Name: BrassCraft®
- Part#: 466
- MPN: 68-14-12X
- UPC: 026613135366
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
BrassCraft® compression adapter is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.
BrassCraft® Compression Male Reducing Adapter, 68X Series, Adapter Fitting, Connection Size 1: 7/8 in, Connection Type 1: OD Tube, Connection Size 2: 3/4 in, Connection Type 2: MIP, Tube|MIP Connection, Brass, Material Construction: Brass, Finish: Rough, 1-1/8 in Hex, For Use With: Aluminum and Copper Tubes, 1.38 in L, 75 psi, -65 to 250 deg F, Additional Information: 0.035 in THK Tube Wall
| Additional Information | : | 0.035 in THK Tube Wall |
| Connection Size 1 | : | 7/8 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | OD Tube |
| Connection Type 2 | : | MIP |
| Connection Type | : | Tube|MIP |
| Dimensions | : | 1.38 in L |
| Finish | : | Rough |
| Fitting Type | : | Adapter |
| For Use With | : | Aluminum and Copper Tubes |
| Hex Size | : | 1-1/8 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 75 psi |
| Series | : | 68X Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 7/8 in |
- Brass construction provides strength, durability and longer-lasting performance
- Not recommended for steel tubing
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
