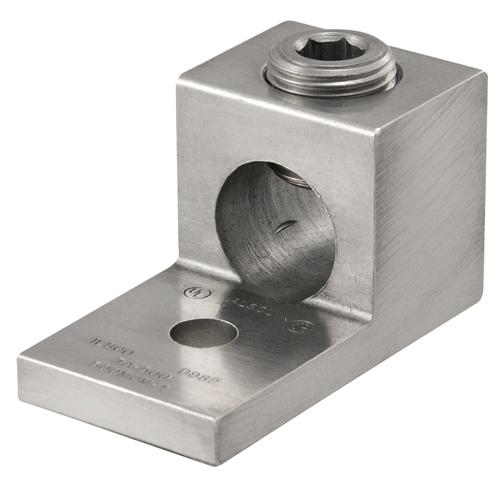

ILSCO® Lug, 35 kV, 4 AWG to 500 kcmil Conductor, Stranded Conductor, Mechanical Connection Type, 1/2 in Hex, 0.406 in, 1 Mounting Holes, 1 Conductors, 1 Pole, 3/8 in Stud, 500 in-lb Tightening, 1.594 in L x 1.5 in W x 0.312 in THK Tongue, Straight Tongue, Aluminum/Copper, Tin-Plated, Silver, 90 deg C, 2.812 in Length, 1-1/2 in Width, 1.562 in Height
| Color | : | Silver |
| Conductor Size | : | 4 AWG to 500 kcmil |
| Conductor Type | : | Stranded |
| Connection Type | : | Mechanical |
| Finish | : | Tin-Plated |
| Height | : | 1.562 in |
| Hex Size | : | 1/2 in |
| Length | : | 2.812 in |
| Material | : | Aluminum/Copper |
| Mounting Size | : | 0.406 in |
| Number of Conductors | : | 1 |
| Number of Mounting Holes | : | 1 |
| Number of Poles | : | 1 |
| Stud Size | : | 3/8 in |
| Temperature Rating | : | 90 deg C |
| Tightening Torque | : | 500 in-lb |
| Tongue Size | : | 1.594 in L x 1.5 in W x 0.312 in THK |
| Tongue Type | : | Straight |
| Voltage Rating | : | 35 kV |
| Width | : | 1-1/2 in |
