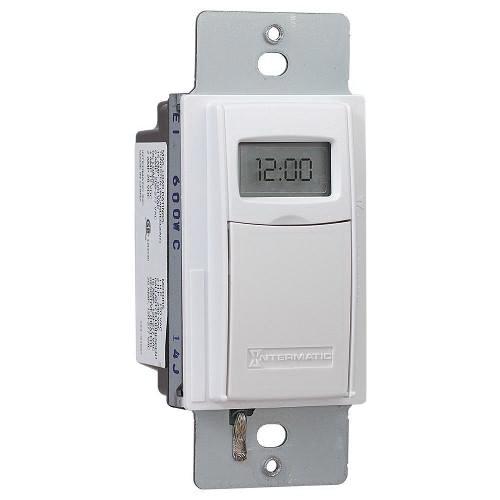

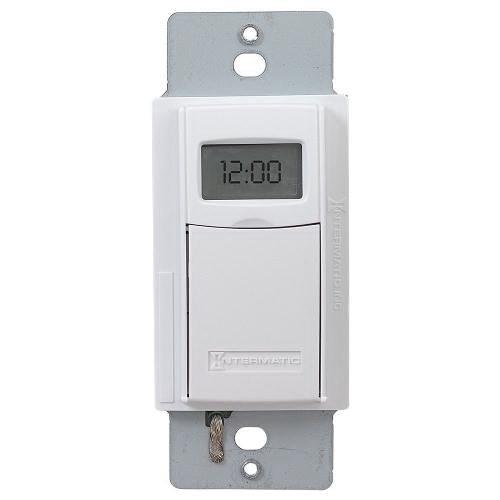

Intermatic® Programmable Electronic In-Wall Countdown Timer, Series: EI400 Series, 120 to 277 VAC/12 to 28 VDC, 20 A, 50/60 Hz, 2 hp HP Rating, Switch Rating: 15 A at 120 VAC and 6 A at 208 to 277 VAC Incandescent, 16 A at 120 to 277 VAC Fluorescent, 2 A at 12 VDC, 20 A at 120 to 277 VAC Heater, 4 A at 28 VDC, 1 s to 24 hr Time Settings, Lead Wire Terminal, 100000 cycles Operating Cycles, 32 to 122 deg F, White, 104.8 mm Height, 44.5 mm Width, 30.2 mm D
| Amperage Rating | : | 20 A |
| Color | : | White |
| Depth | : | 30.2 mm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 2 hp |
| Height | : | 104.8 mm |
| Operating Cycles | : | 100000 cycles |
| Series | : | EI400 Series |
| Switch Rating | : | 15 A at 120 VAC and 6 A at 208 to 277 VAC Incandescent, 16 A at 120 to 277 VAC Fluorescent, 2 A at 12 VDC, 20 A at 120 to 277 VAC Heater, 4 A at 28 VDC |
| Temperature Rating | : | 32 to 122 deg F |
| Terminal Type | : | Lead Wire |
| Time Settings | : | 1 s to 24 hr |
| Voltage Rating | : | 120 to 277 VAC/12 to 28 VDC |
| Width | : | 44.5 mm |
- Programmable countdown time interval from one-second to 24 hr
- Settings stored in non-volatile memory
- Incandescent/fluorescent/CFL/LED compatible
Instruction/Installation Manual
