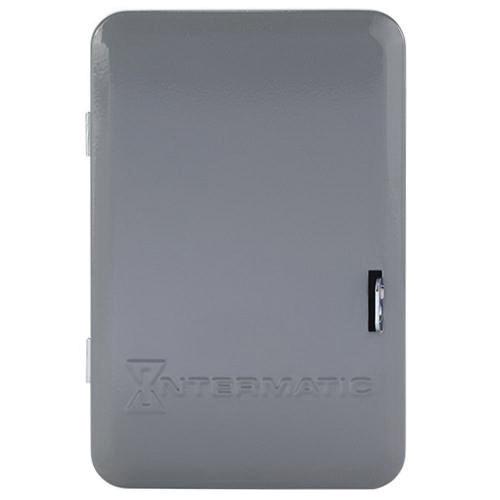

Intermatic® Time Switch, Series: T100 Series, 208 to 277 VAC, 40 A, 60 Hz, 2 hp, 3W, 5 hp, SPST, 24 hr, Switch Rating: 16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten, Pilot Duty: 1000 VA, 14 to 8 AWG Wire, NEMA 1, Steel, -40 to 130 deg F, 200 mm H x 130.2 mm W x 87.3 mm D
| Amperage Rating | : | 40 A |
| Contact Configuration | : | SPST |
| Dimensions | : | 200 mm H x 130.2 mm W x 87.3 mm D |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Pilot Duty Rating | : | 1000 VA |
| Power Rating | : | 2 hp, 3W, 5 hp |
| Series | : | T100 Series |
| Switch Rating | : | 16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten |
| Temperature Rating | : | -40 to 130 deg F |
| Timing Range | : | 24 hr |
| Voltage Rating | : | 208 to 277 VAC |
| Wire Size | : | 14 to 8 AWG |
- Heavy-duty switches that have the highest horsepower ratings in the industry for industrial, commercial and residential applications
- Provides direct 24 hr control of most loads
- 1 - 12 on/off operations each day
- Minimum on/off times of 1 hr
- Combination 1/2 - 3/4 in nominal knockouts, (1) on back and on each side and (2) on bottom
- Manual override
