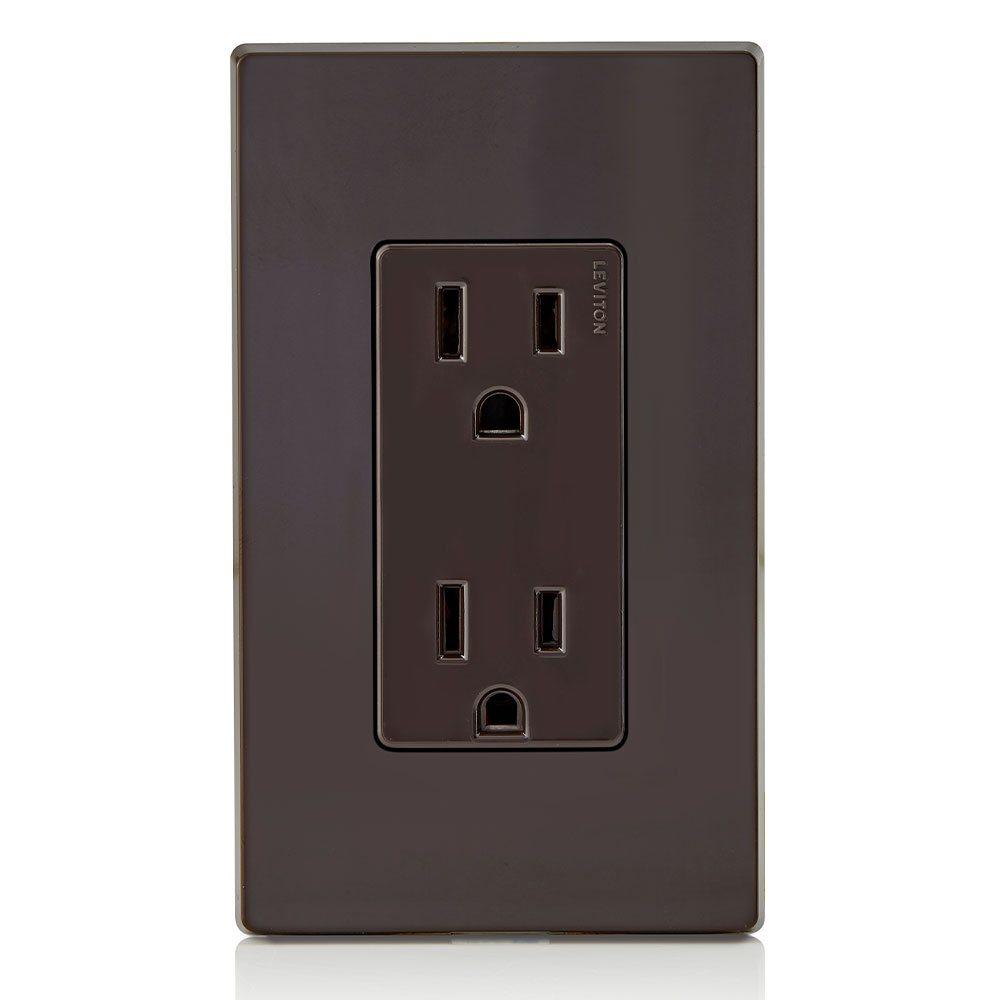

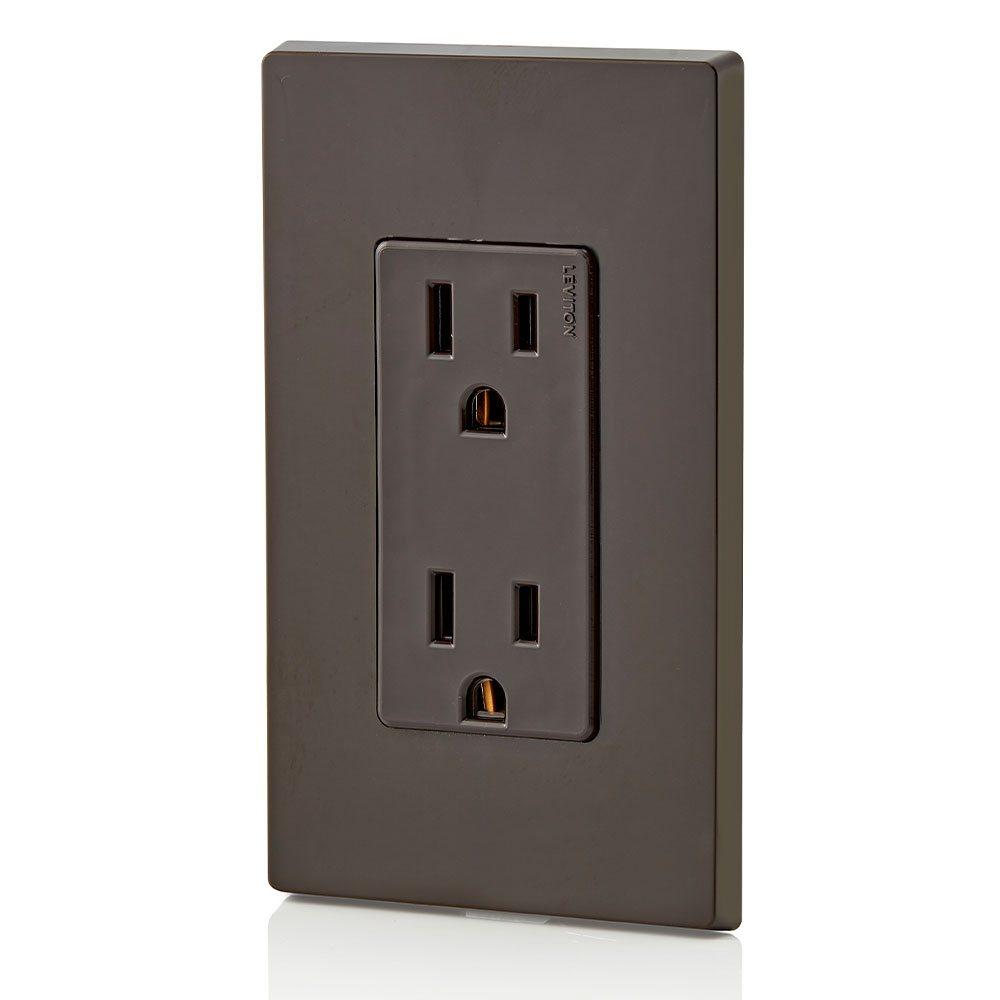

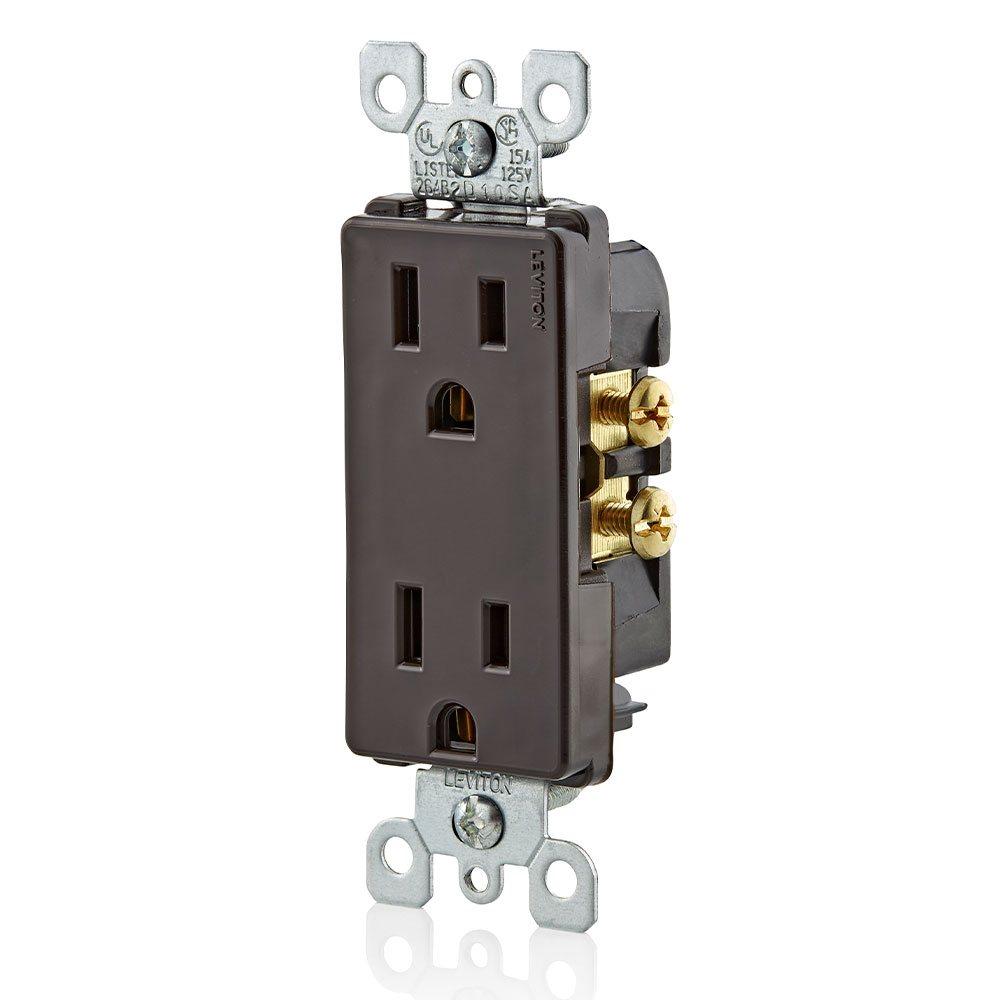

Decora® Straight Blade Duplex Receptacle, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, 1 ph Phase, 1 Gangs, Residential Grade, NEMA Rating: NEMA 5-15R, Non-Indicating Indicators, Grounding Grounding, Quick Wire Push-In Wired, Side Wired Terminal, Copper, Solid Conductor, 14 AWG Conductor, Thermoplastic Housing, Steel Strap, Brown, -40 to 60 deg C, 4.06 in Length, 1.31 in Width, 1.14 in Height
| Amperage Rating | : | 15 A |
| Color | : | Brown |
| Conductor Size | : | 14 AWG |
| Conductor Type | : | Copper, Solid |
| Grade | : | Residential |
| Grounding | : | Grounding |
| HP Rating | : | 1/2 hp |
| Height | : | 1.14 in |
| Housing Material | : | Thermoplastic |
| Length | : | 4.06 in |
| NEMA Rating | : | NEMA 5-15R |
| Number of Gangs | : | 1 |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Quick Wire Push-In Wired, Side Wired |
| Type of Indicators | : | Non-Indicating |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.31 in |
- Easy quick wire push-in and side wiring for easy installation
- Durable - impact-resistant thermoplastic nylon construction
- Convenient - shallow depth for maximum wiring room
- Compatible - for use with Leviton® Decora® wall plates
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
