Leviton® CS220-2I 11293

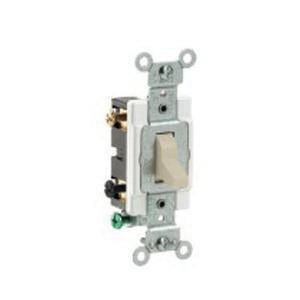

Leviton® CS220-2I AC Quiet Toggle Switch, 120/277 V, 20 A, 2 hp

  • Manufacturer: Leviton
  • Brand Name: Leviton®
  • Part#: 11293
  • MPN: CS220-2I
  • UPC: 078477815762
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Leviton® AC Quiet Toggle Switch, 120/277 V, 20 A, 2 hp, Screw Terminal Connection Type, 2 Pole, Thermoplastic Body, Ivory, -40 to 60 deg C, 4.06 in Height, 1.31 in Width, 0.92 in D

Amperage Rating      :      20 A
Body Material      :      Thermoplastic
Color      :      Ivory
Connection Type      :      Screw Terminal
Depth      :      0.92 in
Height      :      4.06 in
Number of Poles      :      2
Power Rating      :      2 hp
Temperature Rating      :      -40 to 60 deg C
Voltage Rating      :      120/277 V
Width      :      1.31 in
  • Designed to offer outstanding reliability and top performance in commercial settings
  • Maximum 30 deg C rise in temperature
  • PBT base, steel strap, thermoplastic actuator, polycarbonate toggle, nylon cover, 0.031 in silver cadmium contacts, #8-32 steel terminal screws
  • 12 - 14 in-lb torque
  • Brass-hot, green-ground, silver-neutral terminal ID
  • Ten years limited warranty
  • 1500 V for 1 min Withstands dielectric strength
  • 14 - 12 AWG
