Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush-mount receptacles fit Leviton® wide range of 2.15 in Dia wallplates and mounting hardware is included.

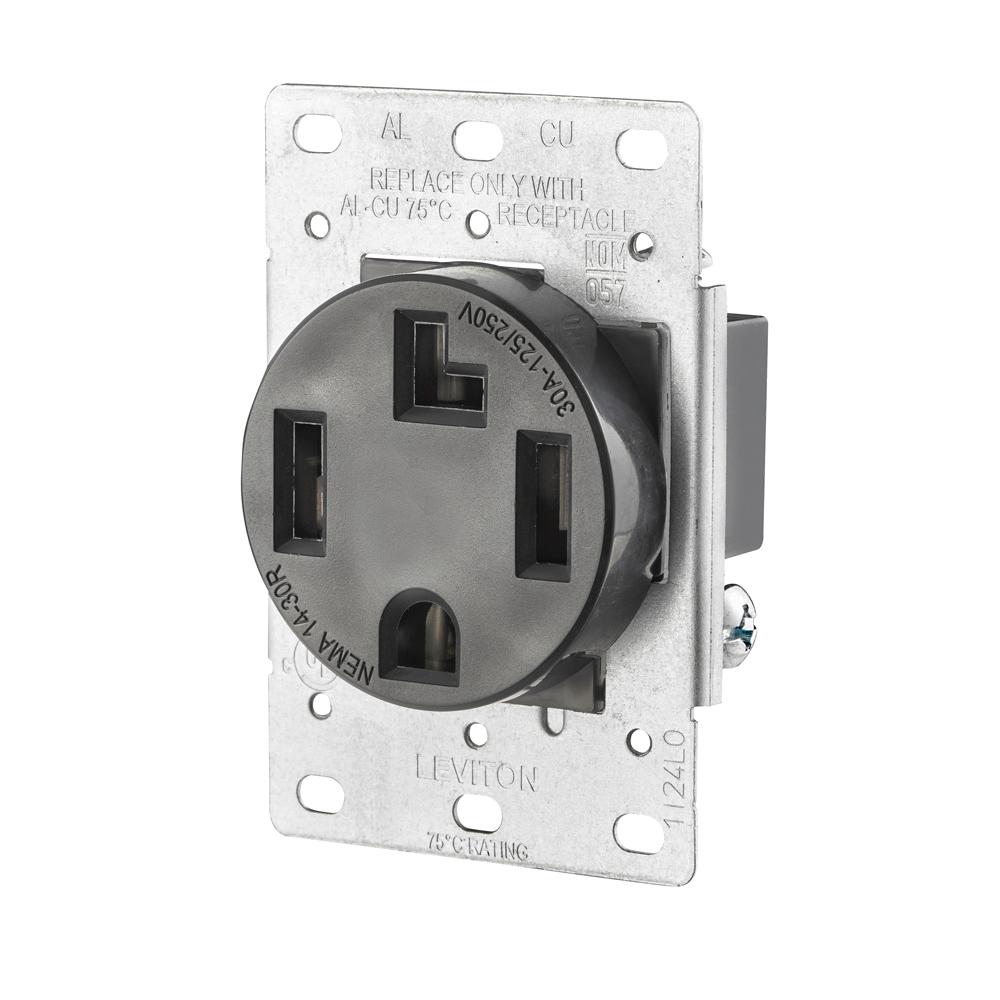

Leviton® Straight Blade Receptacle, 125/250 VAC, 30 A, 2 hp, 3 Poles, 4 Wires, Industrial Grade, 2000 V Dielectric Strength, Grounding Grounding, Side Wired Terminal, 4 AWG Conductor, Flush Mounting, Thermoplastic Housing, Brass Contact, Steel Strap, Black, -40 to 60 deg C, 3-3/4 in Length, 2.42 in Width
| Amperage Rating | : | 30 A |
| Color | : | Black |
| Conductor Size | : | 4 AWG |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial |
| Grounding | : | Grounding |
| HP Rating | : | 2 hp |
| Housing Material | : | Thermoplastic |
| Length | : | 3-3/4 in |
| Mounting Type | : | Flush |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 125/250 VAC |
| Width | : | 2.42 in |
Full Engineering Drawing
