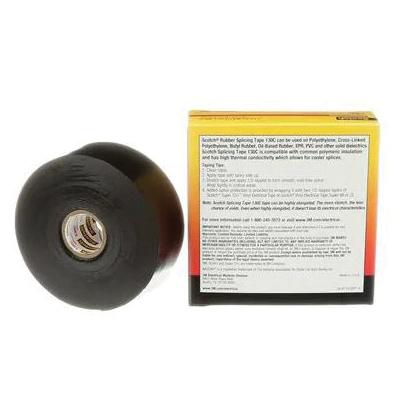

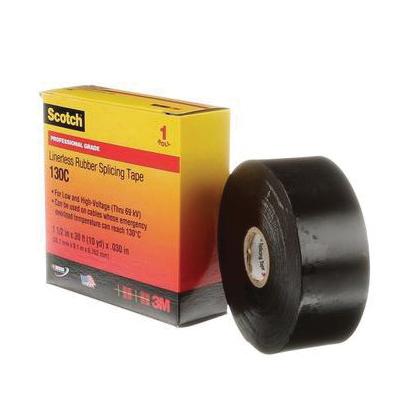

The Scotch® linerless rubber splicing tape is a linerless, premium-grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 deg F with emergency overload up to 266 deg F. The tape has excellent electrical and mechanical properties to provide moisture seal protection. Scotch® linerless rubber splicing tape is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups.
Scotch® Tape, Series: 130C Series, 30 mil Thickness, 1-1/2 in Width, 30 ft Length, Black, Resin/Rubber Adhesive, Rubber Backing, 194 deg F, 250 psi Tensile Strength, 69 kV, 750 V/mil Dielectric Strength, Resists: UV
| Adhesive Material | : | Resin/Rubber |
| Backing Material | : | Rubber |
| Color | : | Black |
| Dielectric Strength | : | 750 V/mil |
| Length | : | 30 ft |
| Resists | : | UV |
| Series | : | 130C Series |
| Temperature Rating | : | 194 deg F |
| Tensile Strength | : | 250 psi |
| Thickness | : | 30 mil |
| Voltage Rating | : | 69 kV |
| Width | : | 1-1/2 in |
- Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene rubber backing provides UV resistance
- Provides an excellent thermal dissipation of splice heat
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Specification Sheet
