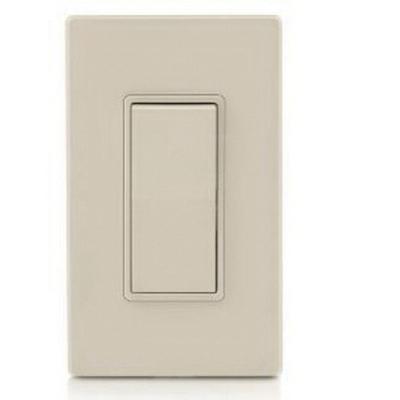

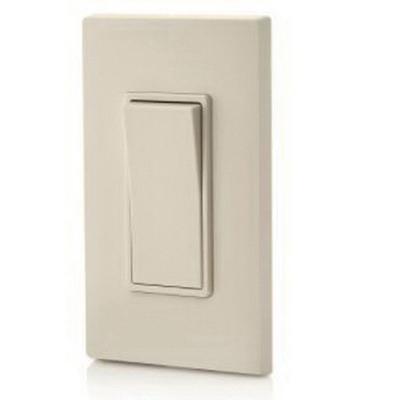

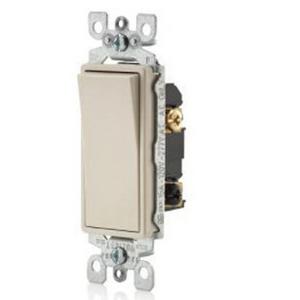

Decora® Grounding Quiet Switch, 120/277 VAC, 15 A, 2 hp, 3 Pole, Rocker Actuator, On-Off, Copper, Solid Conductor, 12 AWG, 14 AWG Conductor, Surface Mount, Quick Wire Push-In Wired, Side Wired Terminal, Thermoplastic Housing, Thermoplastic Actuator Material, Light Almond, -40 to 120 deg C, 4.2 in Height, 1.4 in Width
| Action Type | : | On-Off |
| Actuator Material | : | Thermoplastic |
| Actuator Type | : | Rocker |
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Conductor Size | : | 12 AWG, 14 AWG |
| Conductor Type | : | Copper, Solid |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic |
| Mounting Type | : | Surface |
| Number of Poles | : | 3 |
| Power Rating | : | 2 hp |
| Temperature Rating | : | -40 to 120 deg C |
| Terminal Type | : | Quick Wire Push-In Wired, Side Wired |
| Voltage Rating | : | 120/277 VAC |
| Width | : | 1.4 in |
- Convenient - quiet three-way switch controls load from two locations
- Durable - impact-resistant thermoplastic nylon construction
- Easy - quick wire push-in and side wiring for easy installation
- Compatible - for use with Leviton® Decora® wall plates
- Switch frame shields against dust and fits in wall plate to prevent rocker binding
- Terminal screws accept up to 12 AWG solid copper clad wire
- Quickwire push-in terminals accept 14 AWG solid copper wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads, motor capacity is 80% of switch rating
- Compliments every decor
