Broan-NuTone® Wall Heater, 120/208/240 V, 6.25/12.5 A at 120 V, 5.41 A at 208 V, 6.25 A at 240 V, 750/1500 W at 120 V, 1125 W at 208 V, 1500 W at 240 V, 2560 to 5120 Btu/hr, 24 ga Steel, Off-White, 7-3/4 in H x 10-1/4 in W x 3-3/4 in D, Additional Information: 9-1/4 in H x 12 in W x 1/2 in D
| Additional Information | : | 9-1/4 in H x 12 in W x 1/2 in D |
| Amperage Rating | : | 6.25/12.5 A at 120 V, 5.41 A at 208 V, 6.25 A at 240 V |
| BTU Rating | : | 2560 to 5120 Btu/hr |
| Color | : | Off-White |
| Dimensions | : | 7-3/4 in H x 10-1/4 in W x 3-3/4 in D |
| Grille Size | : | 12 in W x 9-1/4 in H x 1/2 in D |
| Material | : | 24 ga Steel |
| Output BTU Rating | : | 2560/5120 Btu/hr at 120 V, 3840 Btu/hr at 208 V, 5120 Btu/hr at 240 V |
| Power Rating | : | 750/1500 W at 120 V, 1125 W at 208 V, 1500 W at 240 V |
| Voltage Rating | : | 120/208/240 V |

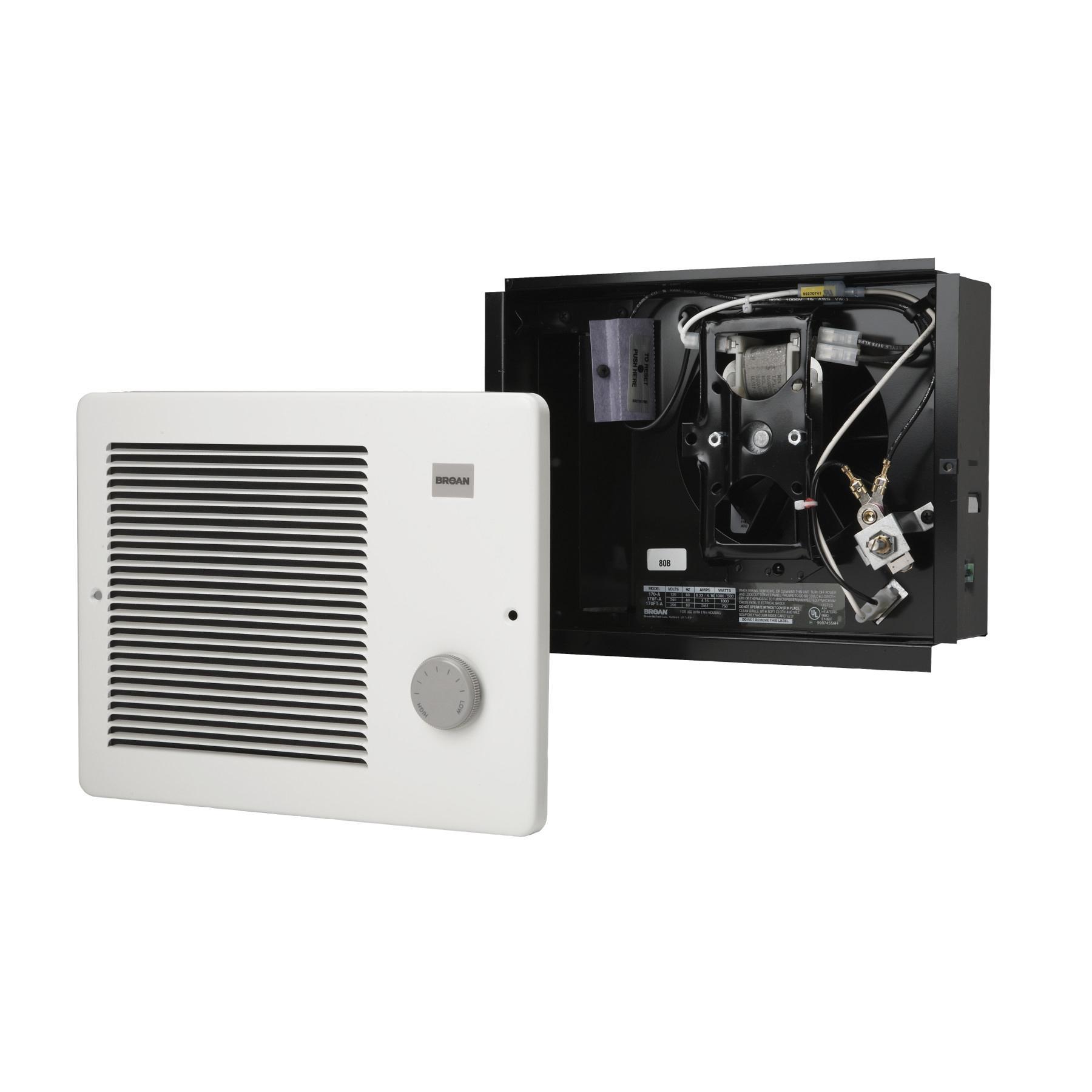

- Wall Heater
- White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability
- Adjustable, front-mounted thermostat offers a simple way to control the level of heat
- Rapid warm up time due to an efficient alloy heating element that provides comforting heat in seconds

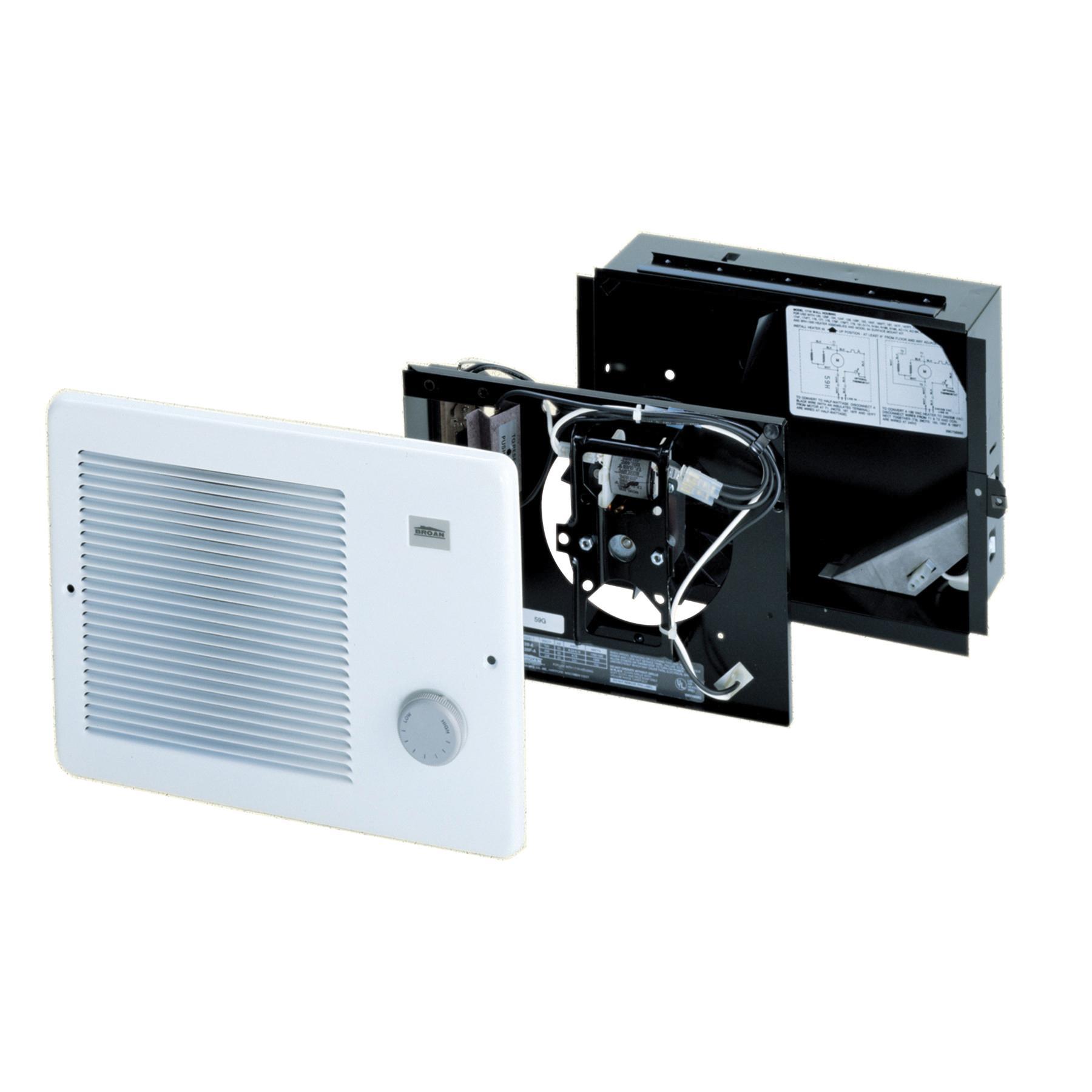

- Heater may be recessed or surface-mounted, depending on your application
- Permanently lubricated motor, high efficiency blower wheel, nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble-free heating

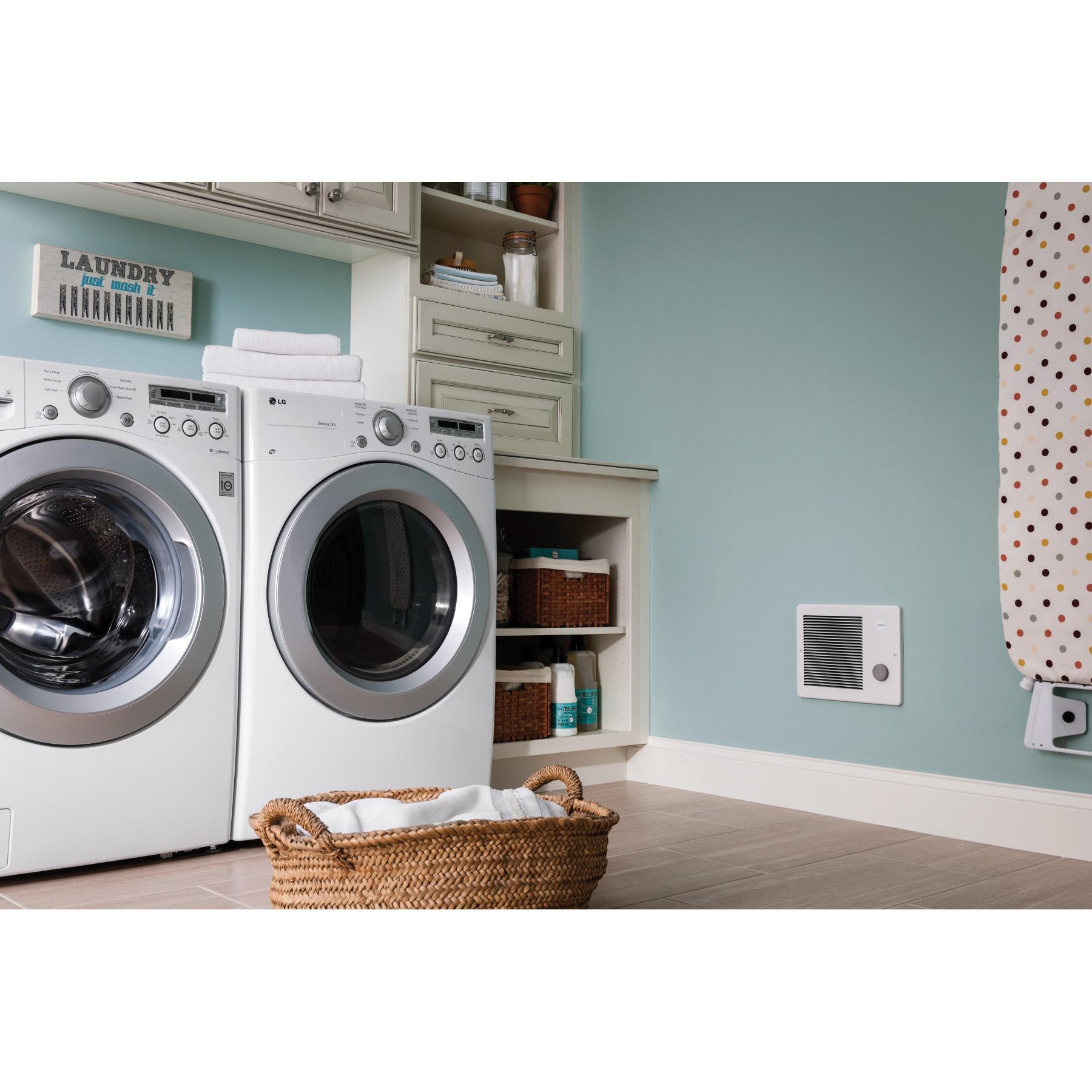

- Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of a primary heat source
- Designer-styled, one-piece construction with rounded corners
- White, baked enamel finish
- 20 ga, with downflow louvers
- Front-mounted thermostat
- Color-coordinated mounting screws and thermostat knob
- Nickel-chrome-resistance alloy heating element
- Mica insulated, zig-zag element configuration
- Snap-action, bi-metallic thermostat
- 120 VAC units can be converted to operate on 240 VAC
- Wattage convertible
- Manual reset thermal overload protector
- Permanently lubricated motor
- High-efficiency blower wheel
Instruction/Installation Manual
