Decora® Plus devices combine designer styling with all the benefits of rugged commercial-grade construction. The robust product offering includes single-pole, double-pole, three and four-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

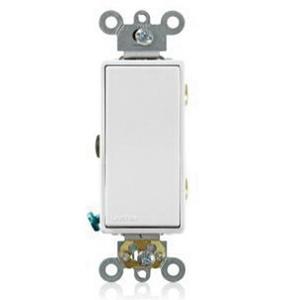

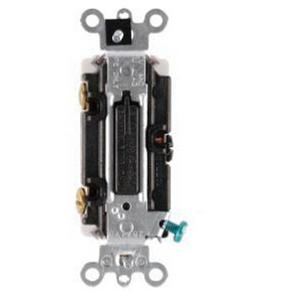

Decora® Plus Quiet Switch, 120/277 VAC, 20 A, 2 hp, Rocker Actuator, Maintained, Momentary, 50000 cycles Operating Cycles, 14 to 10 AWG, 14 to 12 AWG Conductor, Surface Mount, Back Wired, Side Wired Terminal, Thermoplastic Housing, Thermoplastic Actuator Material, White, -40 to 65 deg C, 4.06 in Height, 1.76 in Width
| Action Type | : | Maintained, Momentary |
| Actuator Material | : | Thermoplastic |
| Actuator Type | : | Rocker |
| Amperage Rating | : | 20 A |
| Color | : | White |
| Conductor Size | : | 14 to 10 AWG, 14 to 12 AWG |
| Height | : | 4.06 in |
| Housing Material | : | Thermoplastic |
| Mounting Type | : | Surface |
| Operating Cycles | : | 50000 cycles |
| Power Rating | : | 2 hp |
| Temperature Rating | : | -40 to 65 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 120/277 VAC |
| Width | : | 1.76 in |
Specification Sheet
