Leviton® Decora® SureSlide® controls provide smooth, slide action, full range dimming for a variety of load types. Pre-set models feature a separate on/off switch, allowing the user to set the desired brightness level to operate automatically with the on/off function. The SureSlide® line offers models that are designed specifically for dimmable LED and CFL lamps, models for ELV applications and also a fan speed control.

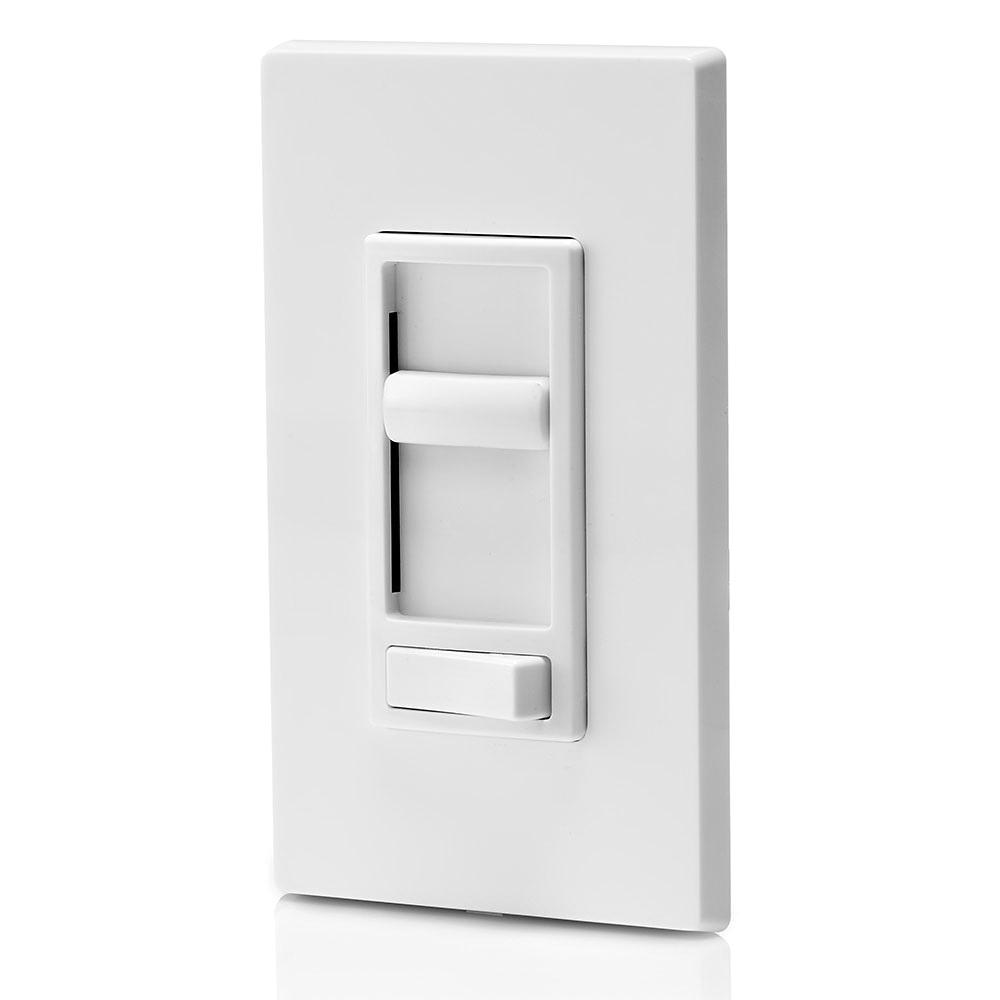

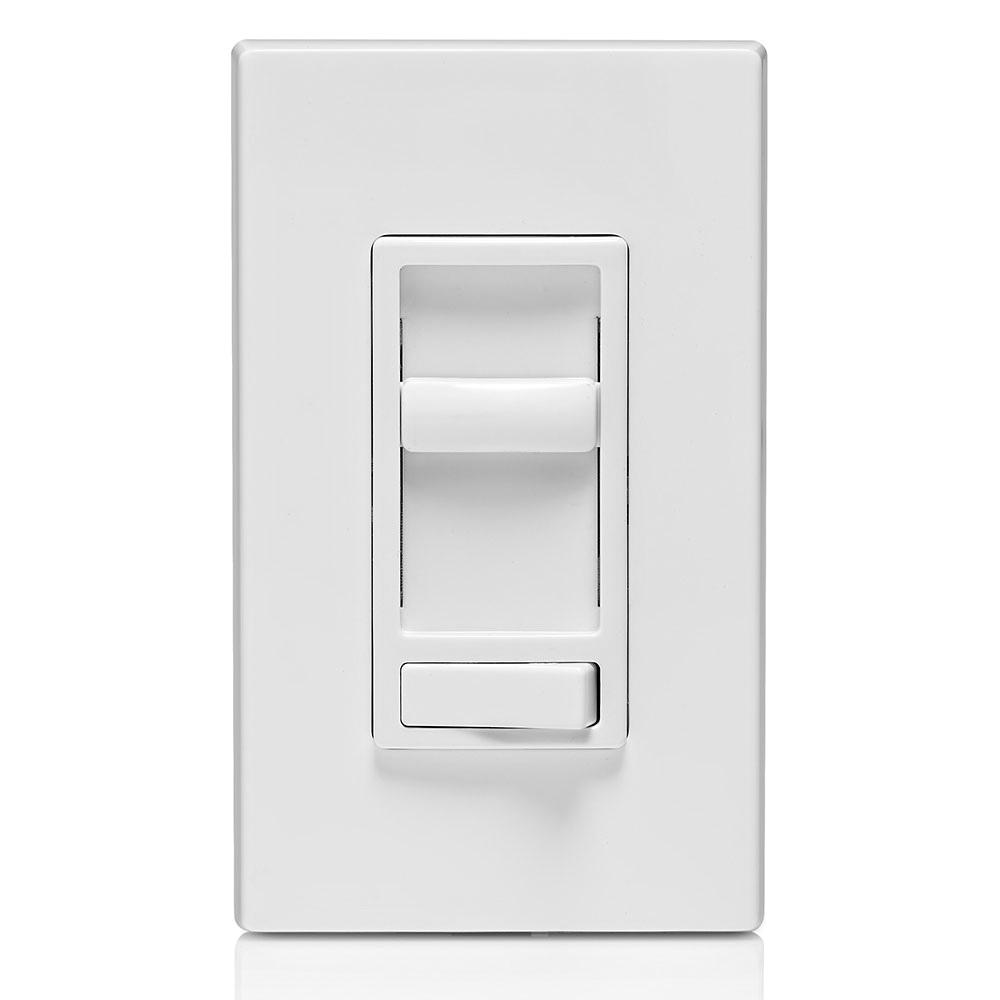

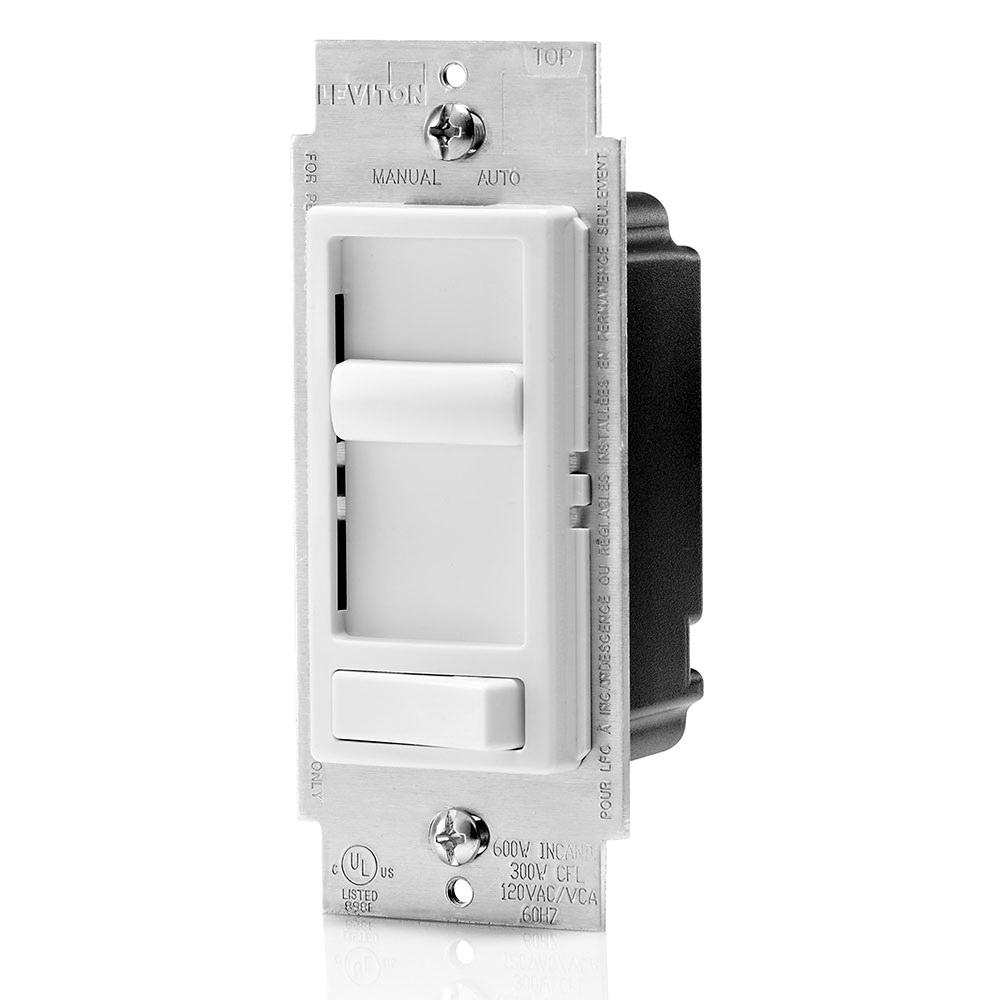

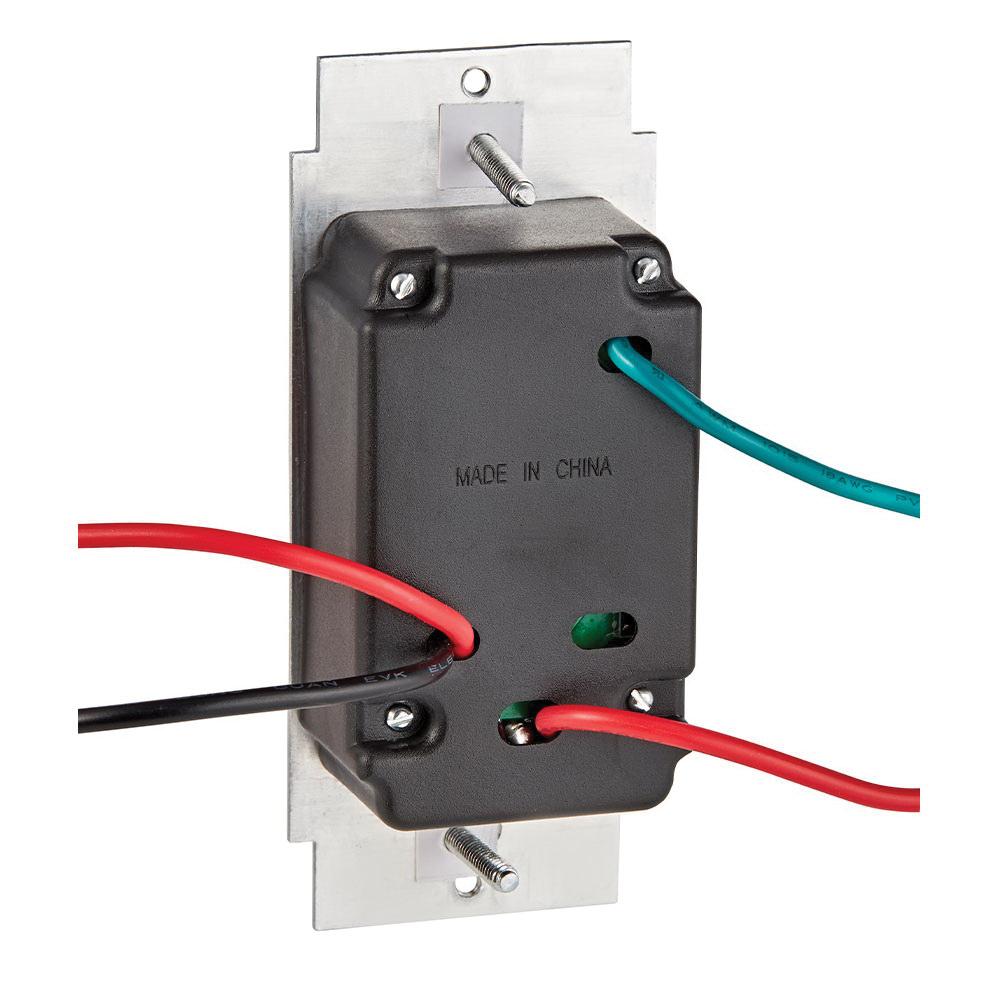

Decora® SureSlide® Dimmer, On-Off Rocker Switch, 120 VAC, 60 Hz, 150 W, 1 Pole, 3 Ways, CFL, Incandescent, LED Lamp, Slide Control, 0 to 55 deg C Operating, Wall Mount, Plastic, White, 4.12 in Length, 1.73 in Width, 0.93 in Height
| Color | : | White |
| Control Type | : | Slide |
| Frequency Rating | : | 60 Hz |
| Height | : | 0.93 in |
| Lamp Type | : | CFL, Incandescent, LED |
| Length | : | 4.12 in |
| Material | : | Plastic |
| Mounting Type | : | Wall |
| Number of Poles | : | 1 |
| Number of Ways | : | 3 |
| Operating Temperature | : | 0 to 55 deg C |
| Switch Type | : | On-Off Rocker |
| Voltage Rating | : | 120 VAC |
| Wattage | : | 150 W |
| Width | : | 1.73 in |
- Integrated linear full range slide control for easy, precise operation
- Features a separate on/off switch that preserves the selected brightness setting
- Single pole or three way lighting control when used with a three way switch
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations
- Future-proof to control a variety of dimmable CFL and LED lamps
- Backwards compatible with incandescent lamps
- Built-in radio/TV interference filter
- Can be used to comply with 2019 California Title 24, Part 6 indoor lighting switching devices and controls
