SharkBite™ U870R20 110866

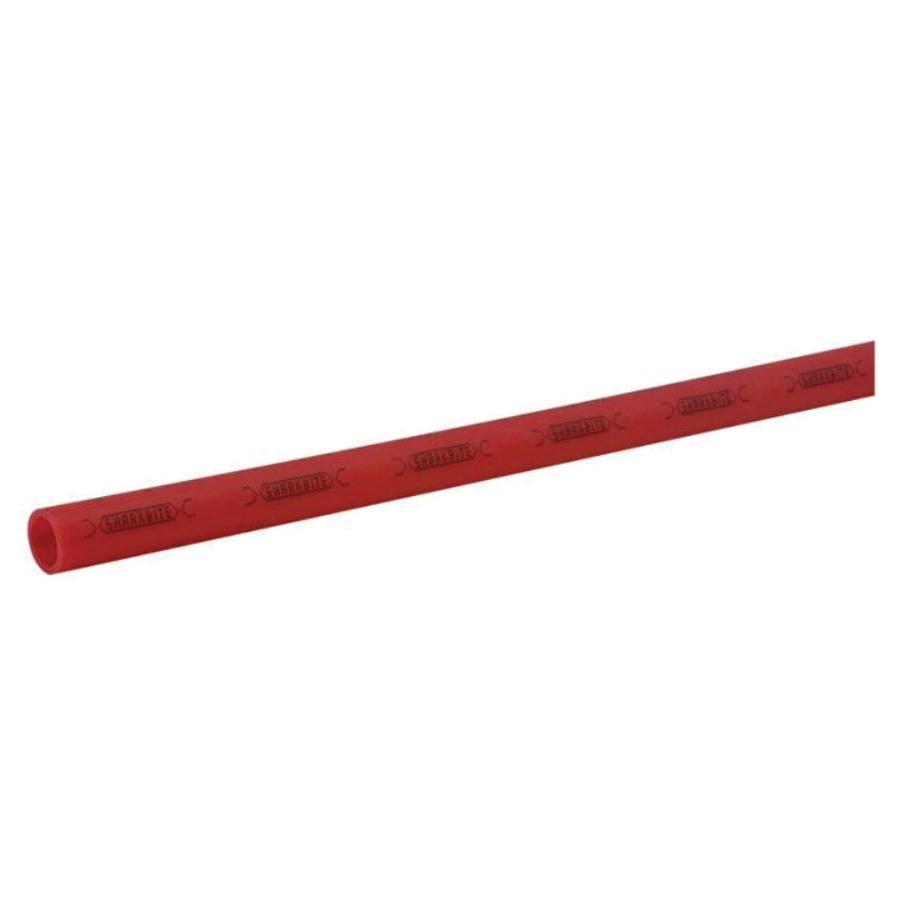

SharkBite™ U870R20 PEX-B Straight Length Pipe, 3/4 in, 20 ft L, Polyethylene, 0.097 in Thick Wall, 0.671 in ID, Red
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: SharkBite™
- Part#: 110866
- MPN: U870R20
- UPC: 697285350205
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
Faster installation compared to rigid pipe. Flexibility to bend pipe around corners. Available in coils up to 1000 ft in length, allowing longer runs and fewer connections - reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
SharkBite™ PEX-B Straight Length Pipe, 3/4 in Nominal, 0.671 in Inside Diameter, 7/8 in Outside Diameter, 20 ft Length, Polyethylene, Material Construction: Polyethylene, Red, 0.097 in Wall Thickness, 160 psi Working Pressure, 33 to 70 deg F
| Bend Radius | : | 7 in |
| Color | : | Red |
| Inside Diameter | : | 0.671 in |
| Length | : | 20 ft |
| Material Construction | : | Polyethylene |
| Material | : | Polyethylene |
| Nominal Size | : | 3/4 in |
| Outside Diameter | : | 7/8 in |
| Temperature Rating | : | 33 to 70 deg F |
| Wall Thickness | : | 0.097 in |
| Working Pressure | : | 160 psi |
- PEX-B offers the highest-rated chlorine resistance and six months UV resistance
- Approved for water service lines and burial applications including being buried under concrete
- Approved for use with SharkBite™ EvoPEX™, SharkBite™ universal push-to-connect ASSE 1061, plastic barb ASTM F2159 and brass barb ASTM F1807 fittings
- Certified to meet ASTM F2023 oxidative resistance requirements for continuous hot water recirculation
- Made in the USA
