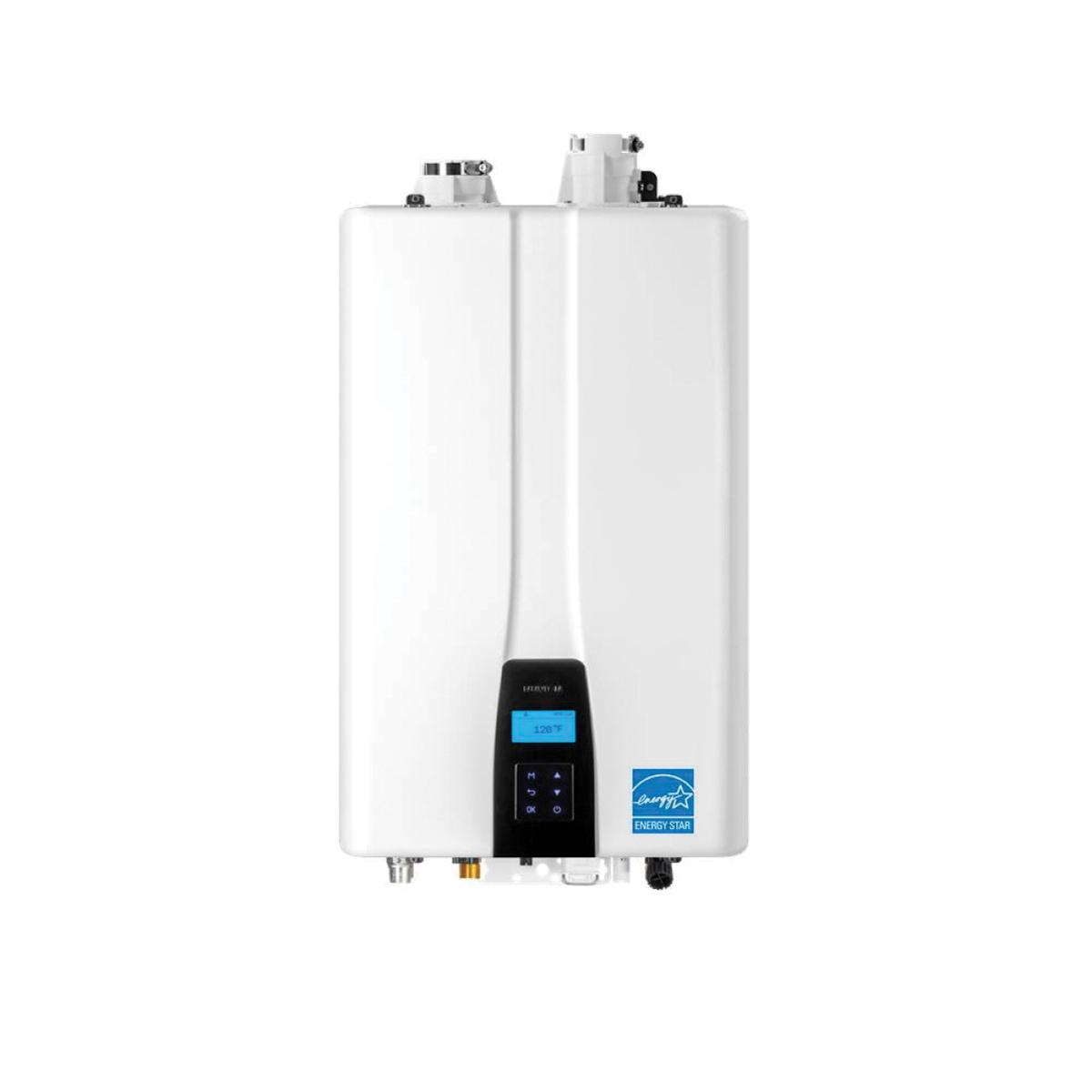

Navien Tankless Water Heater, 10000 to 150000 Btu/hr, 350 W, 8.4 gpm Flow Rate, 0.95 Energy Factor, 0.95 % Efficiency, 2 in Vent, Forced Draft Direct Vent, 2/4 A, 120 V, 60 Hz, NPT Connection, 15 to 150 psi, Energy Star Compliant: Yes, Wall Mounting, Natural Gas, Propane Gas Fuel, Electronic Ignition, White, 97 to 185 deg F, 27.4 in H x 17.3 in W x 13.2 in D
| Amperage Rating | : | 2/4 A |
| BTU Rating | : | 10000 to 150000 Btu/hr |
| Color | : | White |
| Connection Type | : | NPT |
| Dimensions | : | 27.4 in H x 17.3 in W x 13.2 in D |
| Efficiency | : | 0.95 % |
| Energy Factor | : | 0.95 |
| Energy Star Compliant | : | Yes |
| Flow Rate | : | 8.4 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane Gas |
| Ignition Type | : | Electronic |
| Mounting Type | : | Wall |
| Power Rating | : | 350 W |
| Pressure Rating | : | 15 to 150 psi |
| Temperature Rating | : | 97 to 185 deg F |
| Vent Size | : | 2 in |
| Vent Type | : | Forced Draft Direct |
| Voltage Rating | : | 120 V |
- 1/2 in gas pipe capable up to 24 ft
- Field convertible gas system
- Ultra condensing efficiency
- Dual stainless steel heat exchangers
- Low NOx emissions (20 ppm)
- SCH 40, 2 in venting up to 75 ft
- Cascading capable
- EZNav multi-line control panel
- Built-in hot button control panel
- Common vent up to 12-units
