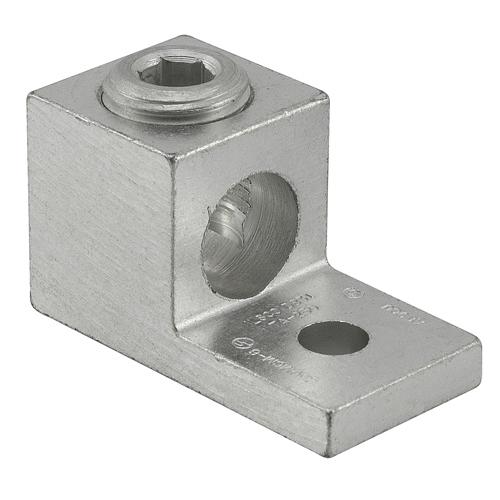

ILSCO® Lug, 35 kV, 6 AWG to 250 kcmil Conductor, Stranded Conductor, Mechanical Connection Type, 5/16 in Hex, 0.328 in, 1 Mounting Holes, 1 Conductors, 1 Pole, 5/16 in Stud, 275 in-lb Tightening, 0.992 in L x 0.99 in W x 0.25 in THK Tongue, Straight Tongue, Aluminum, Tin-Plated, Silver, 90 deg C, 1.984 in Length, 0.99 in Width, 1.122 in Height
| Color | : | Silver |
| Conductor Size | : | 6 AWG to 250 kcmil |
| Conductor Type | : | Stranded |
| Connection Type | : | Mechanical |
| Finish | : | Tin-Plated |
| Height | : | 1.122 in |
| Hex Size | : | 5/16 in |
| Length | : | 1.984 in |
| Material | : | Aluminum |
| Mounting Size | : | 0.328 in |
| Number of Conductors | : | 1 |
| Number of Mounting Holes | : | 1 |
| Number of Poles | : | 1 |
| Stud Size | : | 5/16 in |
| Temperature Rating | : | 90 deg C |
| Tightening Torque | : | 275 in-lb |
| Tongue Size | : | 0.992 in L x 0.99 in W x 0.25 in THK |
| Tongue Type | : | Straight |
| Voltage Rating | : | 35 kV |
| Width | : | 0.99 in |
