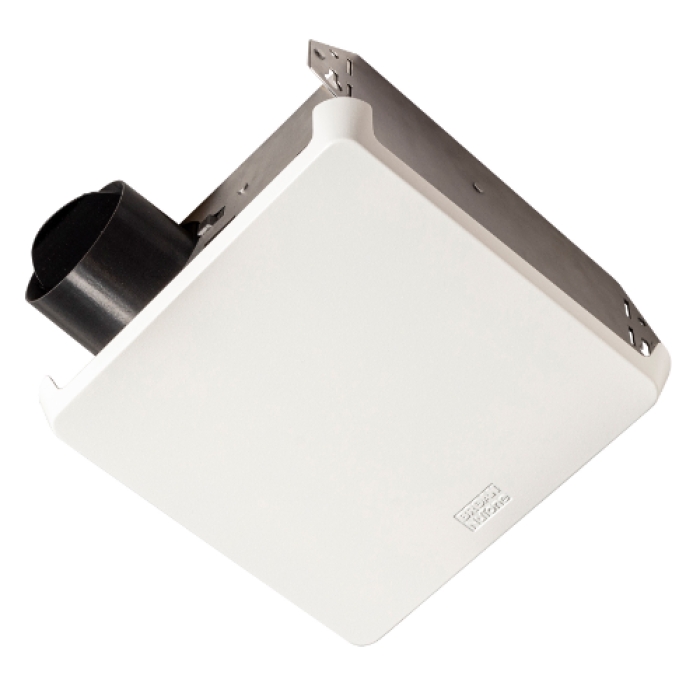

Broan-Nutone® Economy Energy Star Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation performance with Energy Star® for 2.0 sones, that helps ventilate air to prevent mold and mildew. Also including a removable motor assembly and plug-in permanently lubricated motor for ease of service and cleaning.
NuTone® Bathroom Fan, 120 VAC, 0.9 A, 60 Hz, Ceiling, Wall Mounting, 9 in L x 9-1/4 in W Grille, 3 in Dia Duct, 50 cfm, 1 ph Phase, 7-1/2 in Overall Length, 7-1/2 in Overall Width, 5-3/4 in Overall Height, Steel Housing, White Housing
| Amperage Rating | : | 0.9 A |
| CFM Rating | : | 50 |
| Color | : | White |
| Duct Size | : | 3 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 9 L x 8.75 W |
| Height | : | 5-3/4 in |
| Housing Color | : | White |
| Housing Material | : | Steel |
| Humidity Sensing | : | No |
| Length | : | 7-1/4 in |
| Material | : | Steel, Polymeric |
| Motion Detection | : | No |
| Motor Engineered for Cont. Operations | : | No |
| Mounting Type | : | Ceiling, Wall |
| Nightlight | : | No |
| Overall Height | : | 5-3/4 in |
| Overall Length | : | 7-1/2 in |
| Overall Width | : | 7-1/2 in |
| Phase | : | 1 ph |
| Radiation Damper Available | : | No |
| Recommended Room Size (Sq Ft) | : | 45 |
| Room Side Installation Possibile | : | Yes |
| Sound Level | : | 2 Sones |
| Title 24 Compliant | : | No |
| UL Listed | : | Yes |
| Voltage Rating | : | 120 |
| Width | : | 7-1/2 in |
- 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- Energy Star Certified at 2.0 audible sones for privacy while using your bathroom.
- Compact housing with foldable mounting brackets for NO CUT and versatile installation
- Powerful enough for rooms up to 45 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover – make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
688E Installation Guide
