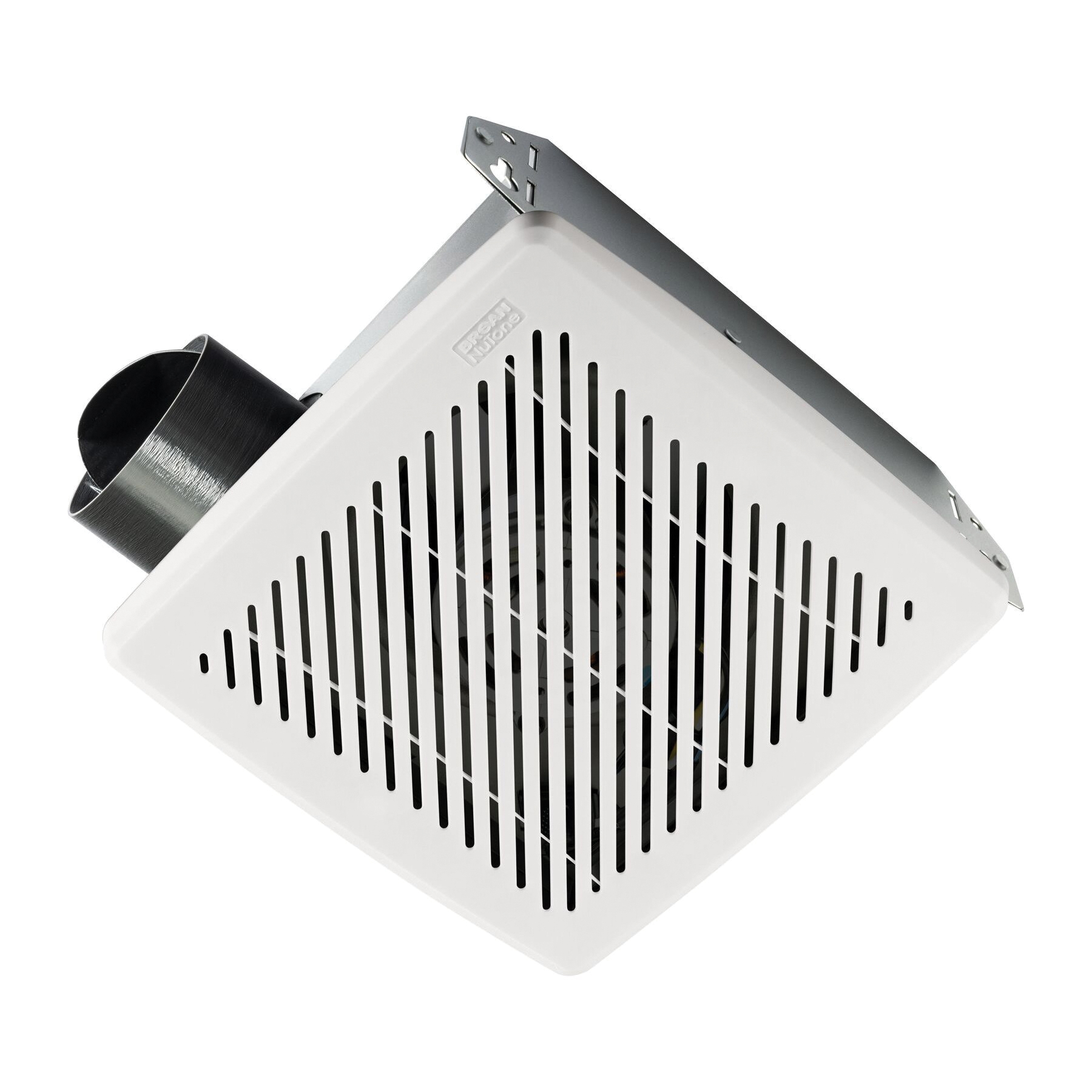

The Broan-NuTone® Energy Star bathroom exhaust fan is a versatile, compact, and economical ventilation solution. Designed for easy installation, this fan can be installed in just 10 minutes without the need for attic access or drywall cutting. Featuring a louvered grille, galvanized steel housing, and double-strength mounting flanges, it delivers powerful ventilation performance at 2.0 sones, helping to prevent mold and mildew. Additionally, the fan includes a removable motor assembly and a plug-in, permanently lubricated motor for easy service and cleaning.
Broan-NuTone® Bathroom Exhaust Fan, Economy Series, 120 V, 0.3 A, 60 Hz, Steel, White, Ceiling, Wall Mounting, 7-1/2 in Length, 7-1/4 in Width, 3-5/8 in Height, 4 in L x 9-3/4 in W Grille, 50 cfm, 45 sq-ft Coverage Area, 3 in Duct, 2 sones Noise Rating
| Amperage Rating | : | 0.3 A |
| CFM Rating | : | 50 cfm |
| Color | : | White |
| Correct Item Group | : | Exhaust Fans |
| Coverage Area | : | 45 sq-ft |
| Duct Size | : | 3 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 4 in L x 9-3/4 in W |
| Height | : | 3-5/8 in |
| Housing Color | : | White |
| Housing Material | : | Steel |
| Humidity Sensing | : | No |
| Length | : | 7-1/2 in |
| Material | : | Steel |
| Motion Detection | : | No |
| Motor Engineered for Cont. Operations | : | No |
| Mounting Type | : | Ceiling, Wall |
| Nightlight | : | No |
| Noise Rating | : | 2 sones |
| Overall Height | : | 5-3/4 in |
| Overall Length | : | 7-1/2 in |
| Overall Width | : | 7-1/2 in |
| Phase | : | 1 ph |
| Radiation Damper Available | : | No |
| Recommended Room Size (Sq Ft) | : | 45 |
| Room Side Installation Possibile | : | Yes |
| Series | : | Economy Series |
| Sound Level | : | 2 Sones |
| Title 24 Compliant | : | No |
| UL Listed | : | Yes |
| Voltage Rating | : | 120 V |
| Width | : | 7-1/4 in |

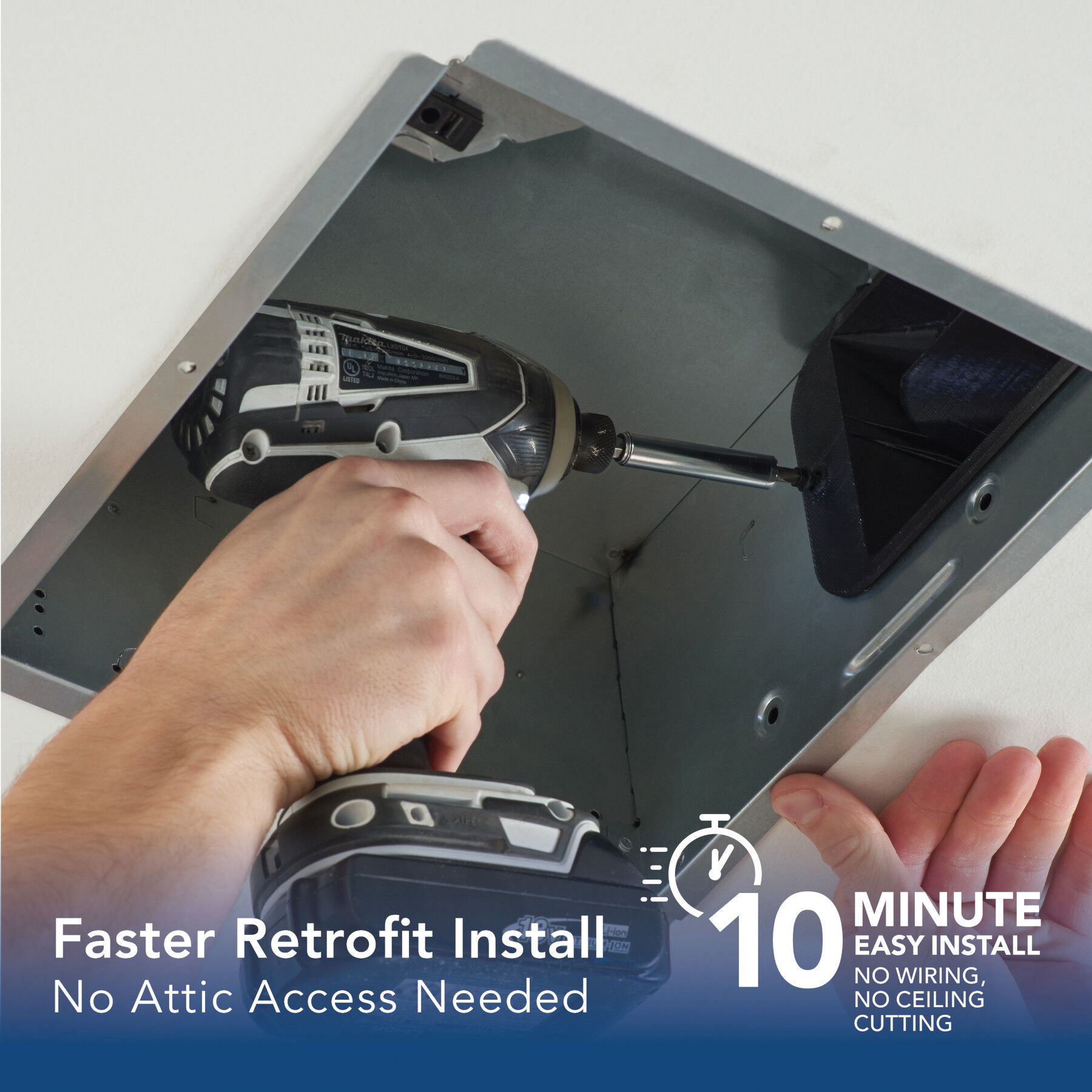

- 10 Min Install: Easy installation without the need for attic access or additional drywall cutting

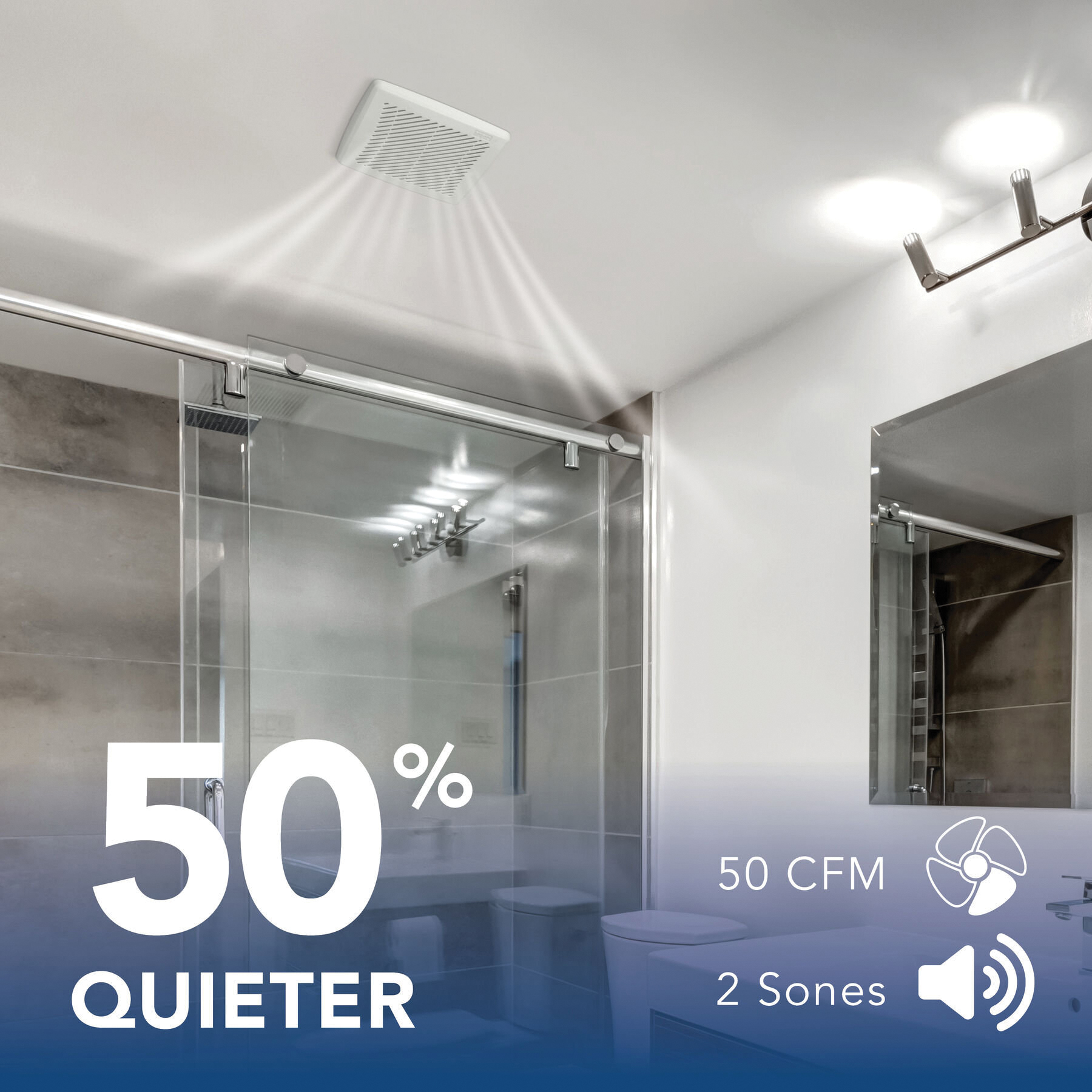

- Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft
- ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans
- No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation
- Brighter white louvered grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover - make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
