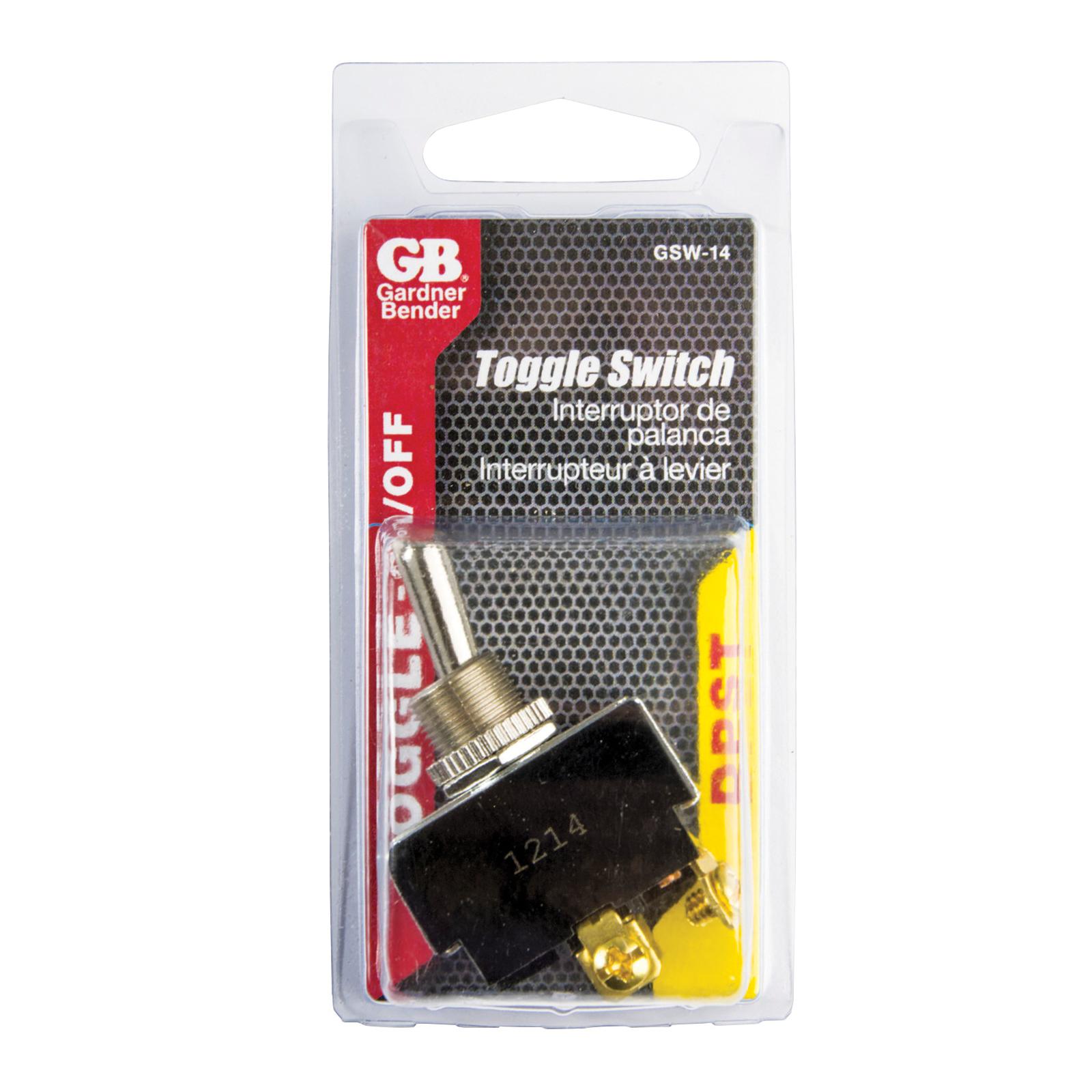

The GB® 20/10 A toggle switch features an "O" ring and has screw terminals for quick and easy connections. The switch offers single pole, single throw (SPST) On-Off circuitry in a classic bat handle design for easy usage. This switch is compatible with standard 1/2 in mounting holes.
GB® Toggle Switch, 125/250 VAC, 20 A, 3/4 hp, Contact Configuration: DPST, Screw Connection, 2 Poles, 4 Positions, On-Off Action, Bat Actuator, 1500 V Dielectric Strength, Finish: Chrome-Plated, 75 deg C, 0.9 in Height, 0.74 in Width, 1.32 in Depth
| Action Type | : | On-Off |
| Actuator Type | : | Bat |
| Amperage Rating | : | 20 A |
| Connection Type | : | Screw |
| Contact Configuration | : | DPST |
| Depth | : | 1.32 in |
| Dielectric Strength | : | 1500 V |
| Finish | : | Chrome-Plated |
| Height | : | 0.9 in |
| Number of Poles | : | 2 |
| Number of Positions | : | 4 |
| Power Rating | : | 3/4 hp |
| Temperature Rating | : | 75 deg C |
| Voltage Rating | : | 125/250 VAC |
| Width | : | 0.74 in |
- On-Off DPST circuitry
- 3 screw terminals for quick and easy connections
- Compatible with standard 1/2 in mounting holes
- Classic bat handle design for easy usage
Specification Sheet
