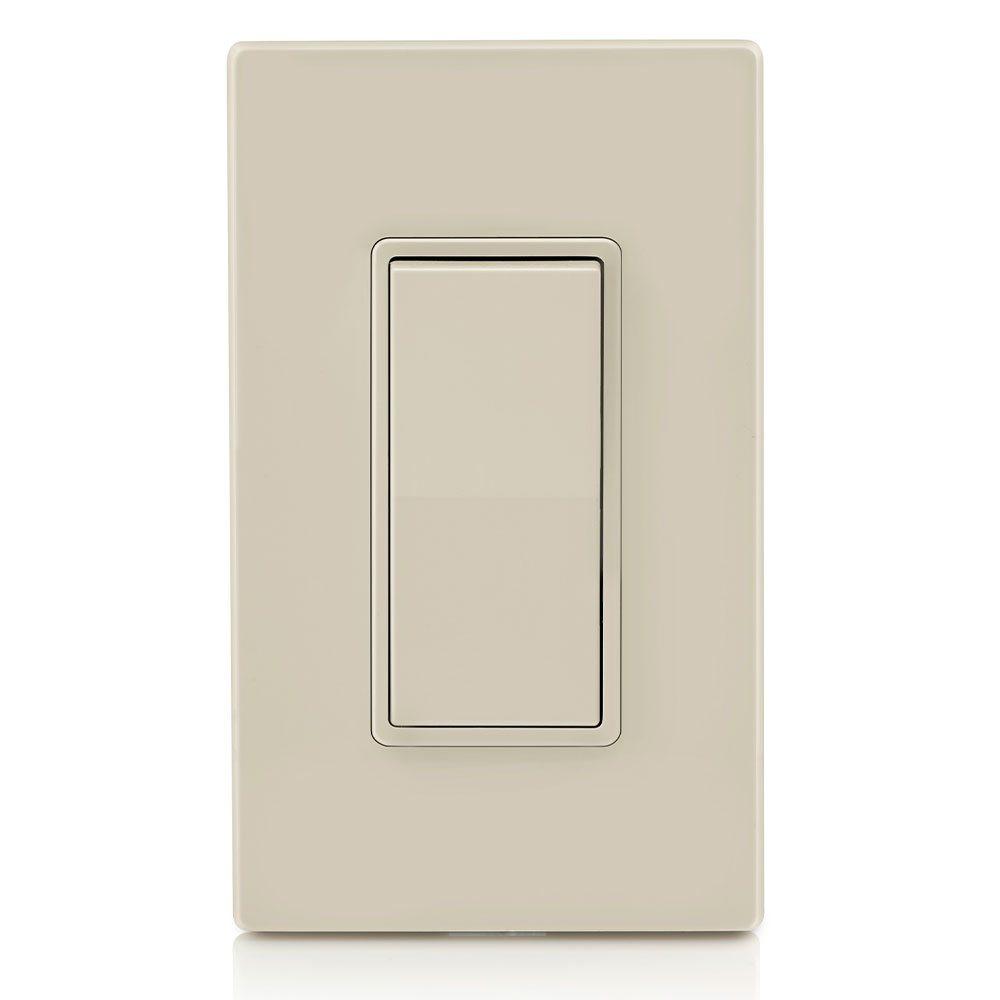

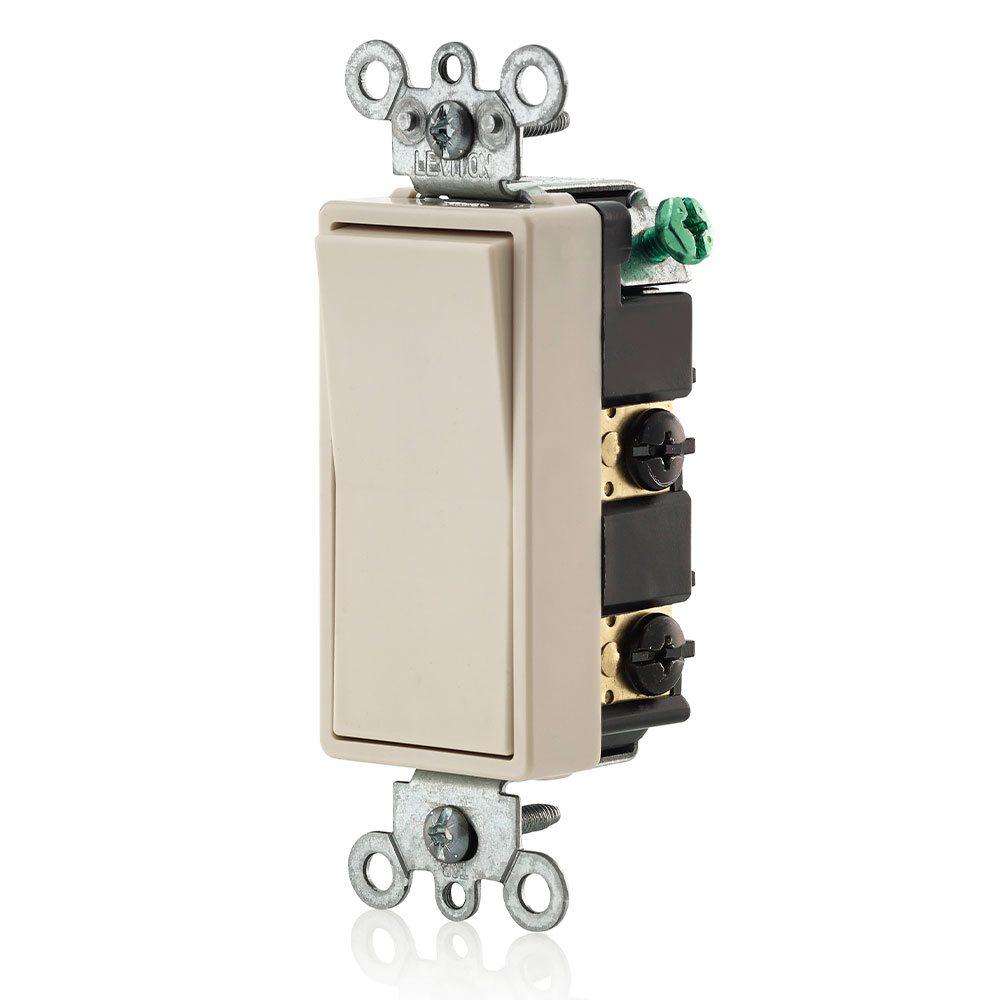

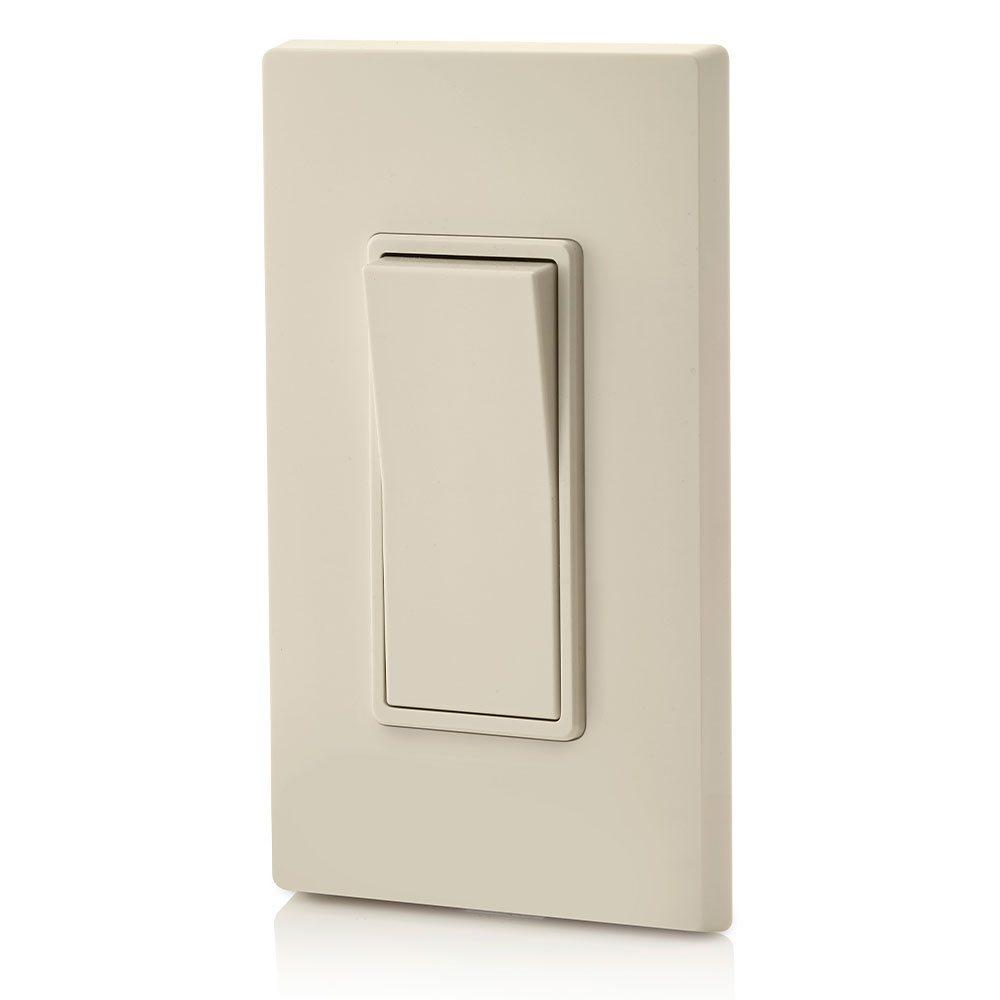

Decora® 4-Way AC Quiet Switch, 120/277 VAC, 15 A, 4 Pole, Quickwire Push-In Wired Wire Connection Type, Thermoplastic, Light Almond, 4.2 in Height, 1.4 in Width
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Height | : | 4.2 in |
| Material | : | Thermoplastic |
| Number of Poles | : | 4 |
| Voltage Rating | : | 120/277 VAC |
| Width | : | 1.4 in |
| Wire Connection Type | : | Quickwire Push-In Wired |
- Switch frame shields against dust and fits in wall plate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper-clad wire
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Complements every decor
- Quiet switch controls load from a single location
- Impact-resistant thermoplastic nylon construction
