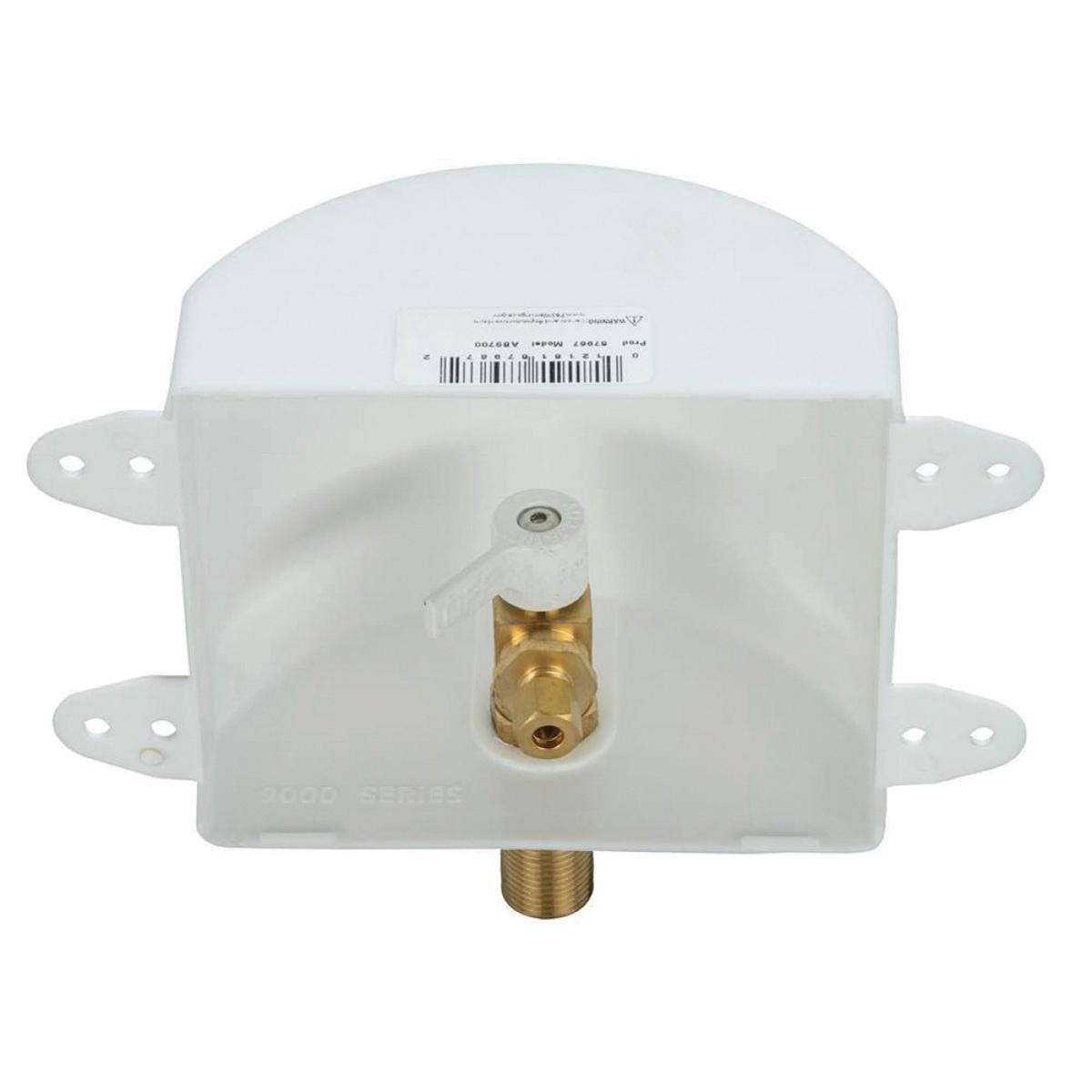

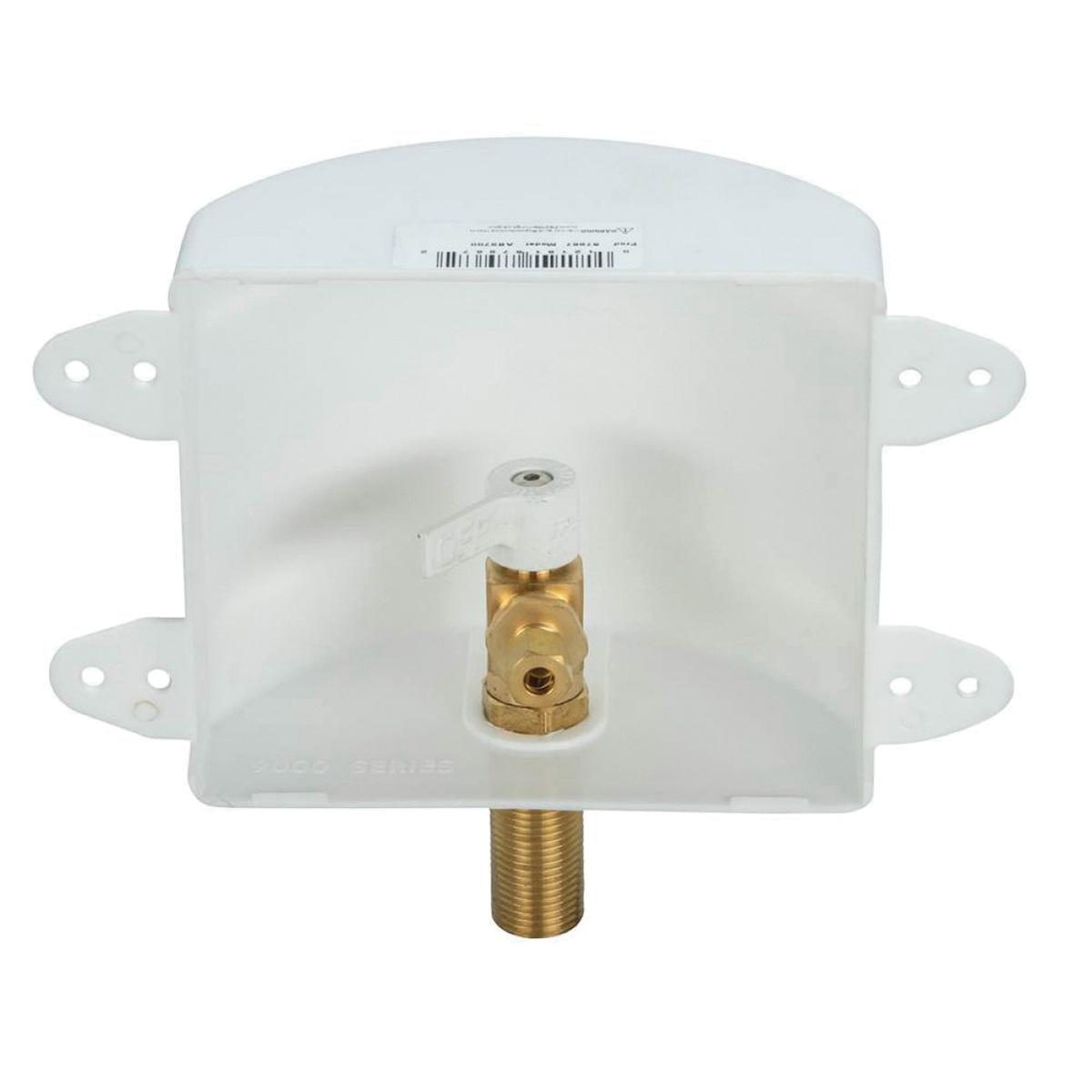

The WATER-TITE square ice maker outlet box features a special contoured design that offers quick and easy valve access. Its one-piece box and flange construction delivers ideal mounting stability, requiring no additional support framing. This outlet box includes one pre-installed lead-free brass valve, which complies with NSF 61-G requirements. the WATER-TITE square ice maker outlet box comes with a snap-on faceplate that measures 8-1/4 in W x 7-5/16 in H and is able to accommodate up to 3/4 in drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
IPS® Ice Maker Outlet Box, AB Series, Model: AB9700, 1/2 in Connection, Sweat Connection, Quarter-Turn Valve, 5-3/4 in Box Width, 3-1/2 in Box Depth, 4-7/8 in Box Height, Plastic Box, 8-1/4 in Faceplate Width, 7-15/16 in Faceplate Height
| Box Depth | : | 3-1/2 in |
| Box Height | : | 4-7/8 in |
| Box Material | : | Plastic |
| Box Width | : | 5-3/4 in |
| Connection Size | : | 1/2 in |
| Connection Type | : | Sweat |
| Faceplate Height | : | 7-15/16 in |
| Faceplate Width | : | 8-1/4 in |
| Model | : | AB9700 |
| Series | : | AB Series |
| Valve Type | : | Quarter-Turn |
- Rough opening 5-3/4 in W x 4-7/8 in H x 3-1/2 in D, faceplate dimension 8-1/4 in W x 7-5/16 in H
- One-piece box and flange design needs no additional support framing nor support framing labor

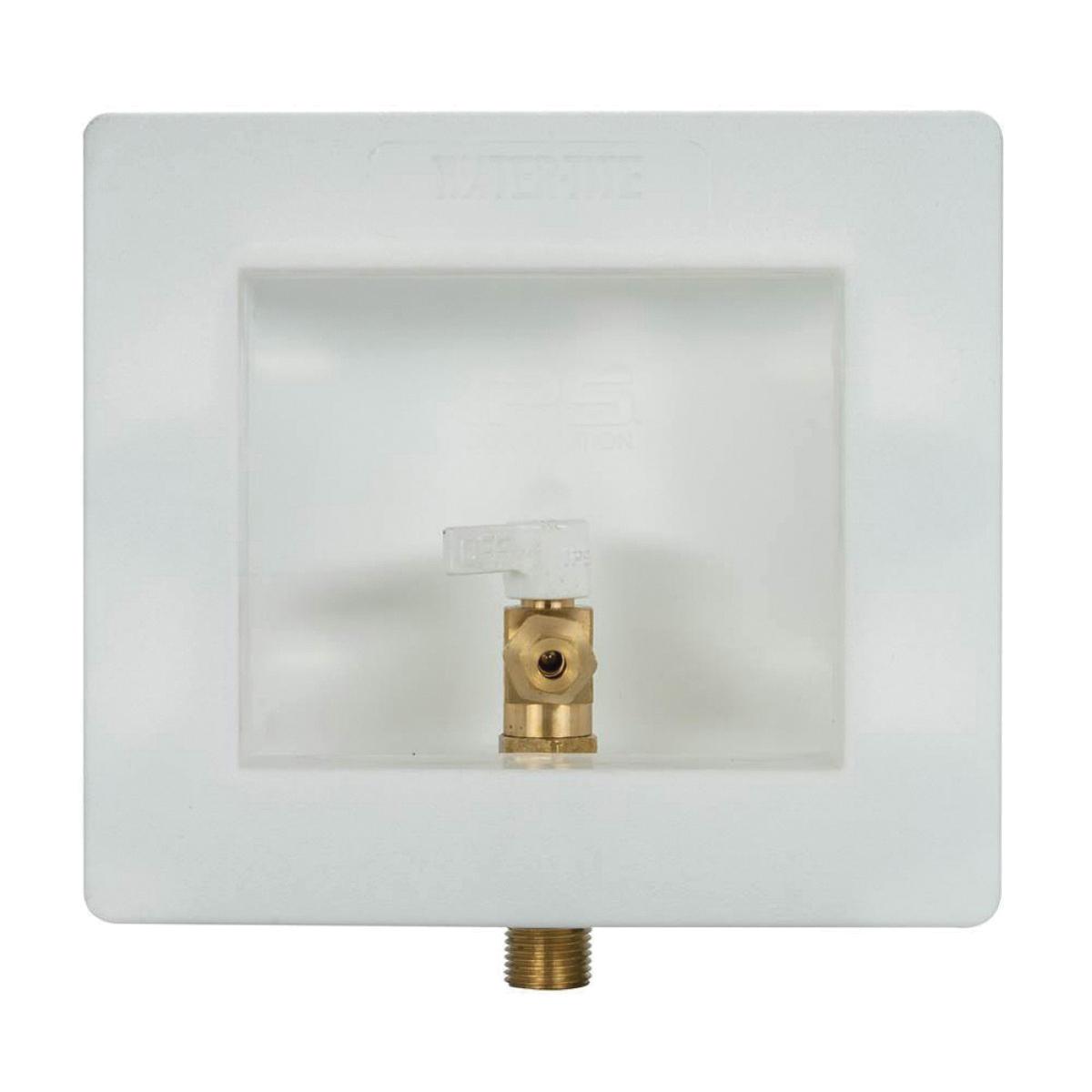

- Snap-on faceplate accommodates up to 3/4 in drywall
- Contour box design allows easy valve access
- Products covered by one or more of the following patents D411,870, D471,960
- Low-lead compliant
