Spears® EverTUFF® CTS pipe and fittings are manufactured in strict compliance to ASTM D2846, standard specification for chlorinated poly (vinyl chloride) (CPVC) plastic hot and cold water distribution systems. This standard defines requirements for materials, workmanship, dimensions, tolerances, pressure bearing capability and thermocycling resistance. Spears® EverTUFF® CTS SDR 11 plumbing pipe and fittings are manufactured to specifications in accordance with this standard. SDR Series pipe is based on an outside diameter to wall thickness ratio. This is a constant regardless of pipe diameter, therefore all sizes of pipe carry the same pressure rating of 100 psi at 180 deg F and is suitable for use with commercial hot water.

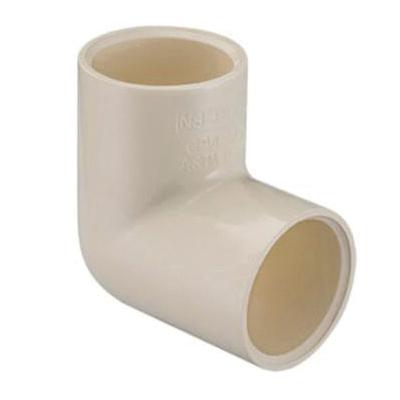

Spears® EverTUFF® 90 deg Elbow, 90 deg Elbow Fitting, 1 in Connection Size 1, Socket Connection Type 1, 1 in Connection Size 2, Socket Connection Type 2, Socket|Socket Connection, CPVC, Molded CPVC Material Construction, Tan, 100 psi, 180 deg F
| Color | : | Tan |
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Socket |
| Connection Type 2 | : | Socket |
| Connection Type | : | Socket|Socket |
| Fitting Type | : | 90 deg Elbow |
| Material Construction | : | Molded CPVC |
| Material | : | CPVC |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 180 deg F |
- Unlike metal systems, CPVC products never rust, scale or pit and will provide many years of maintenance-free service and extended system life
- Low heat conductivity minimizes heat loss in hot water systems
- Smooth interior walls result in lower pressure loss and higher volume than conventional metal systems
- Lower material costs than metallic systems, combined with lighter weight and ease of installation, can substantially reduce overall system cost
- CTS CPVC products can handle fluids at service temperatures up to 180 deg F (82 deg C), IPS CPVC service temperatures and pressures vary according to pipe size
