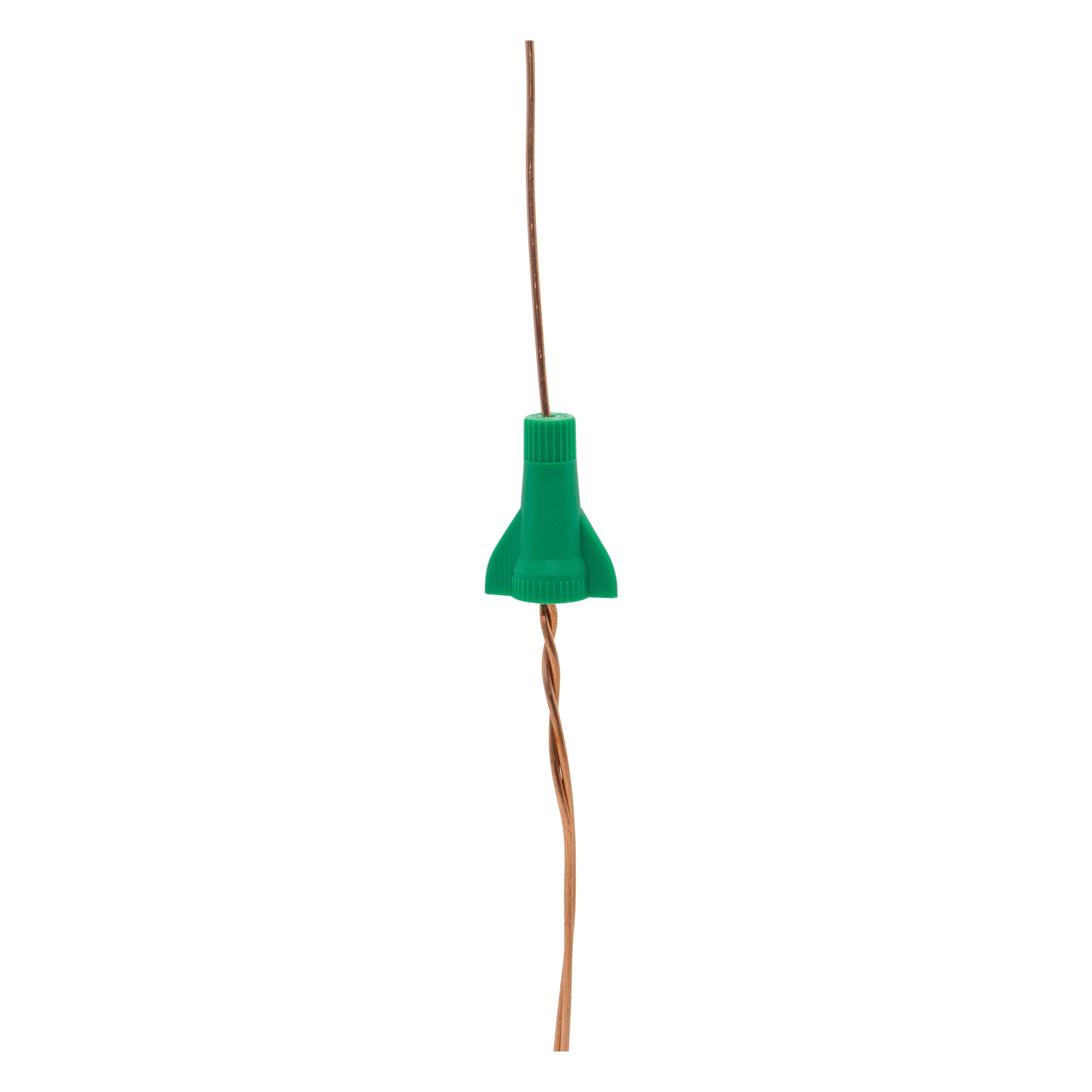

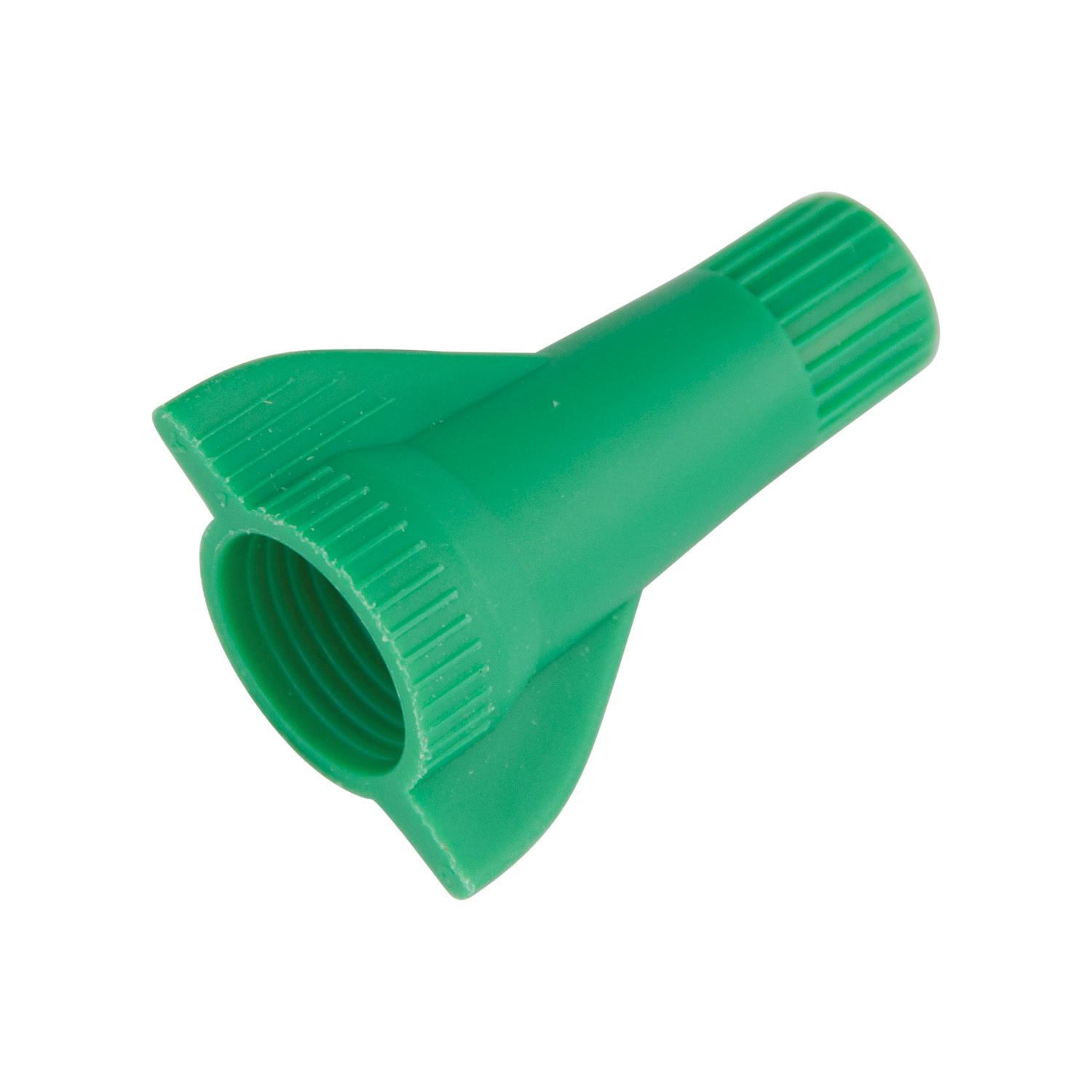

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard™ connectors feature the same live action as GB® WireGard™ connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard™ connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires.
GB® Wire Connector, Model: 95, 14 to 10 AWG Wire, 600/1000 V, Thermoplastic, Finish: Zinc-Plated, Green, 0.91 in Length, 0.31 in Width, 1-1/4 in Height, 221 deg F
| Color | : | Green |
| Finish | : | Zinc-Plated |
| Height | : | 1-1/4 in |
| Length | : | 0.91 in |
| Material | : | Thermoplastic |
| Model | : | 95 |
| Series | : | GreenGard™ Series |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 600/1000 V |
| Width | : | 0.31 in |
| Wire Size | : | 14 to 10 AWG |
- Easier to use - new design enables torque up with improved grip
- Contoured, offset wings enable firm ground connections
- Flame-retardant thermoplastic shell resists punctures, cuts, abrasion and corrosion
- Connectors include hole in the tip for ground wire insertion
- Solid copper to copper connections only
