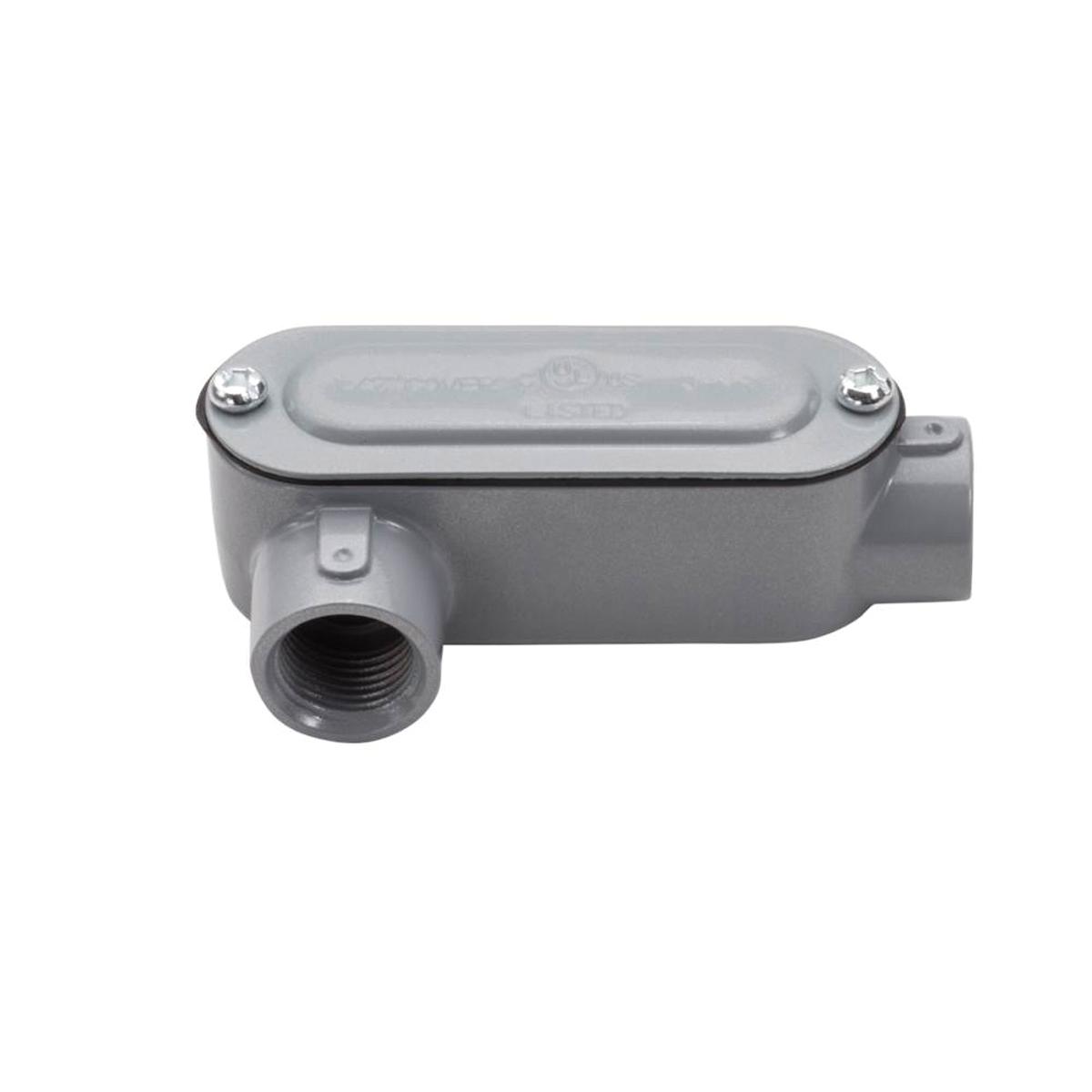

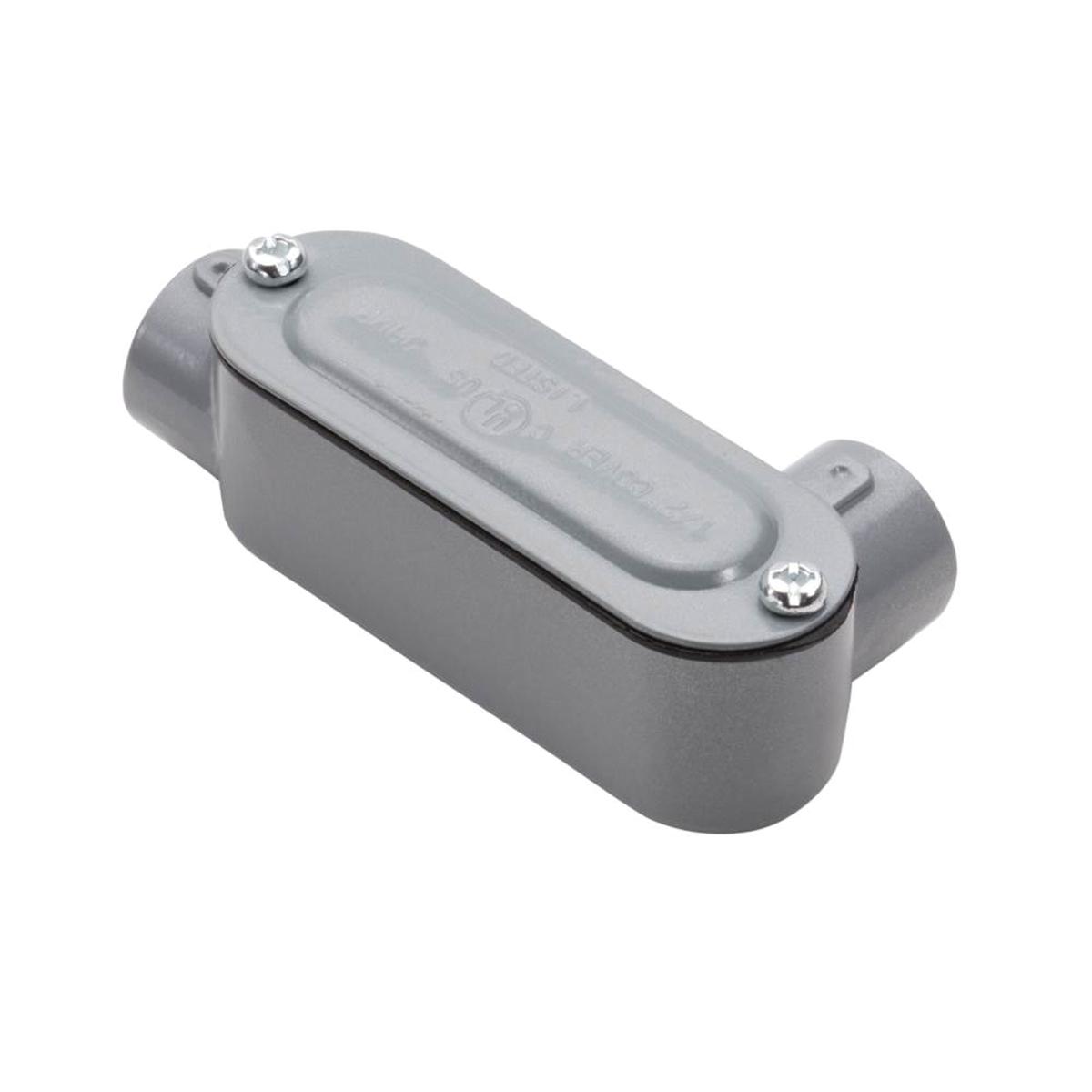

TOPAZ® rigid threaded LR type conduit body, with cover and gasket is manufactured from copper-free aluminum. LR type conduit bodies permit 90 deg right bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion-resistance, lightweight aluminum construction, cover and watertight gasket ensures weatherproof installations. UL listed.
TOPAZ® Rigid Conduit Body, 3/4 in Hub, NPT Connection Type, 6 AWG Wire, Aluminum Body, Steel Cover, Neoprene Gasket, Powder-Coated, 5.09 in Length, 2.33 in Width, 1-5/8 in Height
| Body Material | : | Aluminum |
| Connection Type | : | NPT |
| Cover Material | : | Steel |
| Finish | : | Powder-Coated |
| Gasket Material | : | Neoprene |
| Height | : | 1-5/8 in |
| Hub Size | : | 3/4 in |
| Length | : | 5.09 in |
| Width | : | 2.33 in |
| Wire Size | : | 6 AWG |
- Threaded LR type with cover and gasket
- NPT tapered hubs
