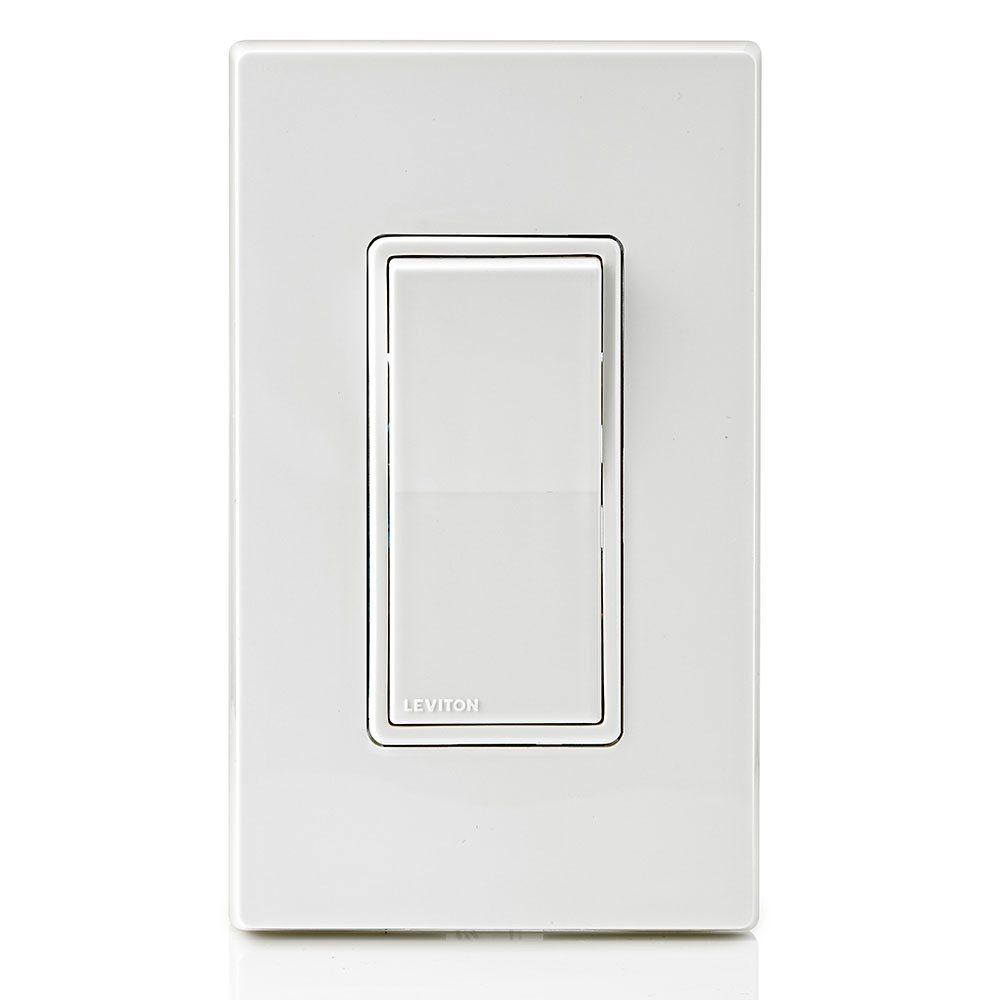

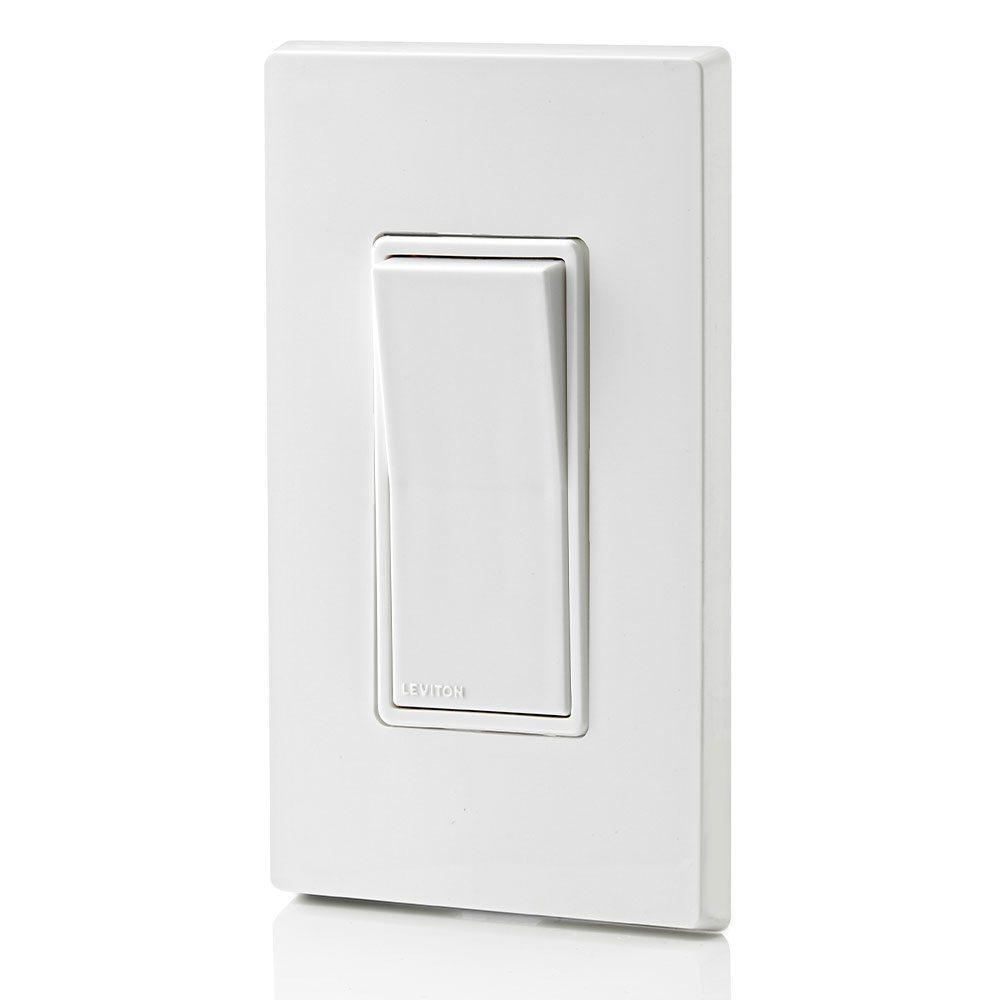

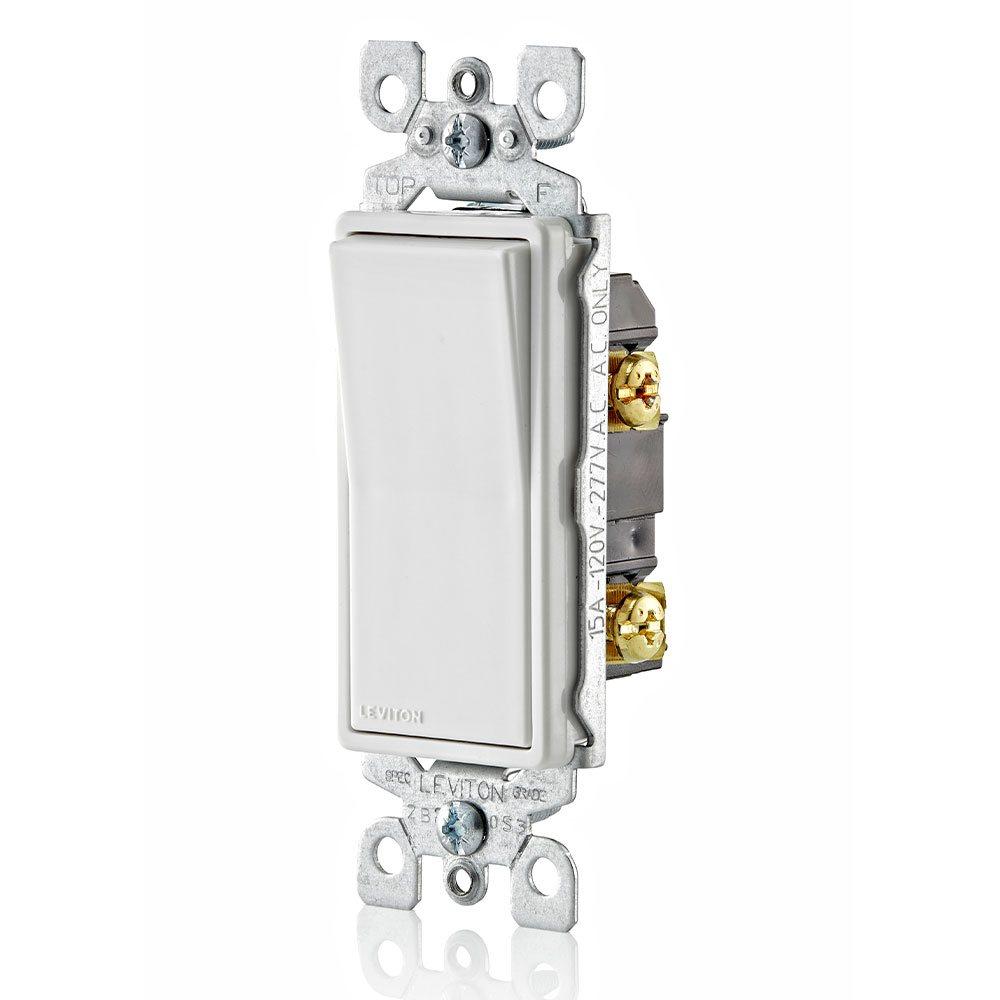

15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding - White.
Leviton® Rocker Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, 1 Poles, Copper Conductor, 14 to 10 AWG Conductor, Quickwire Push-In and Side Terminal, Thermoplastic Housing, Thermoplastic Actuator, White, 4.2 in Height, 1.4 in Width
| Actuator Material | : | Thermoplastic |
| Amperage Rating | : | 15 A |
| Color | : | White |
| Conductor Size | : | 14 to 10 AWG |
| Conductor Type | : | Copper |
| Height | : | 4.2 in |
| Housing Material | : | Thermoplastic |
| Material | : | Thermoplastic |
| Number of Poles | : | 1 |
| Power Rating | : | 1/2 hp, 2 hp |
| Terminal Type | : | Quickwire Push-In and Side |
| Voltage Rating | : | 120/277 VAC |
| Width | : | 1.4 in |
| Wire Connection Type | : | Quickwire Push-In Wired |
- CONVENIENT - Quiet switch controls load from a single location
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quick wire push-in and side wiring for easy installation
- COMPATIBLE - For use with Leviton Decora wallplates
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Complements every decor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
