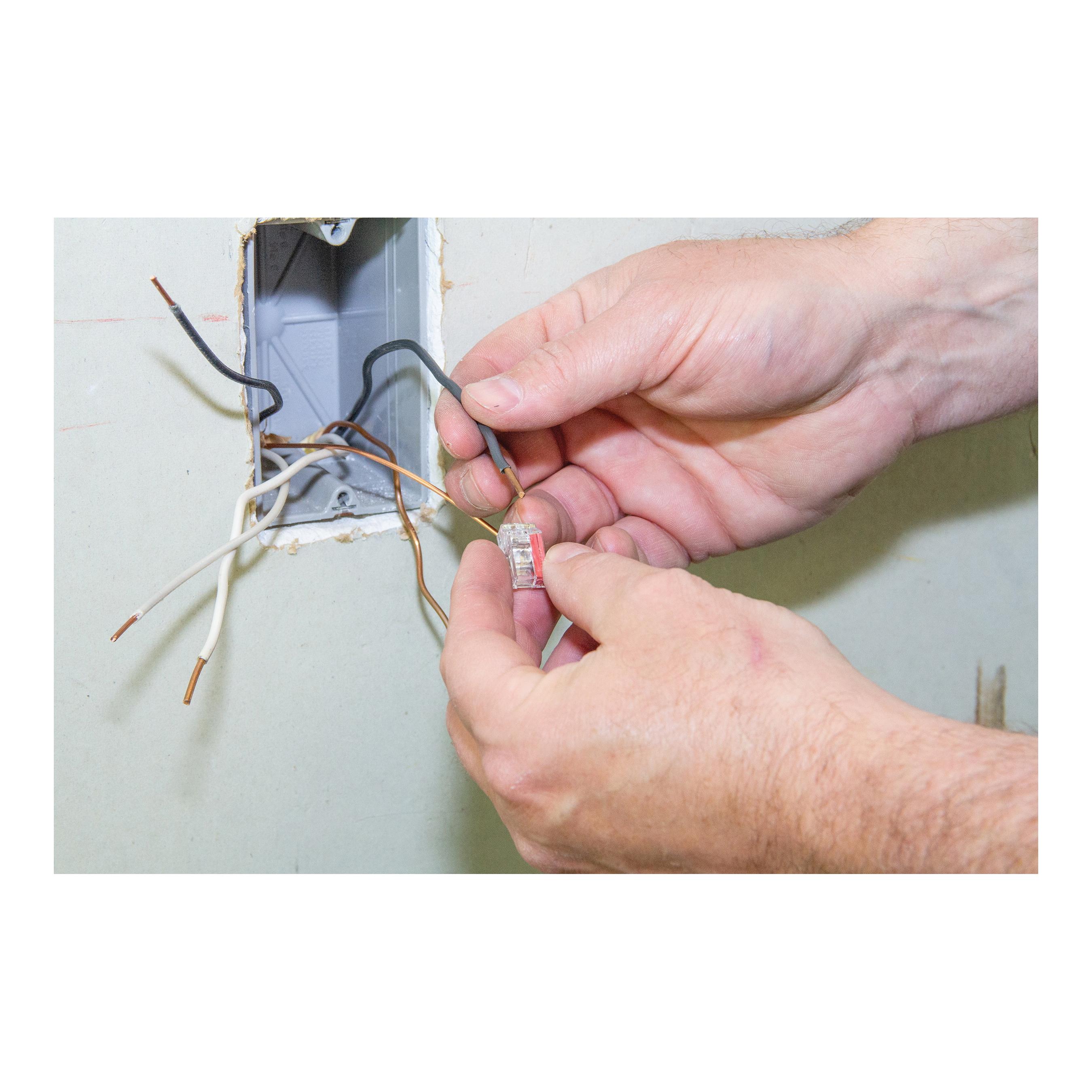

Easy and fast to use, just strip and push conductors into PushGard™ connectors to make reliable, secure connections. The clear polycarbonate housing has color-coded side panels for connection verification and identification. Wire corrosion-resistant stainless steel springs, PushGard™ connectors restrict wire pull out, yet corrections are possible with a simple left right twist and pull.

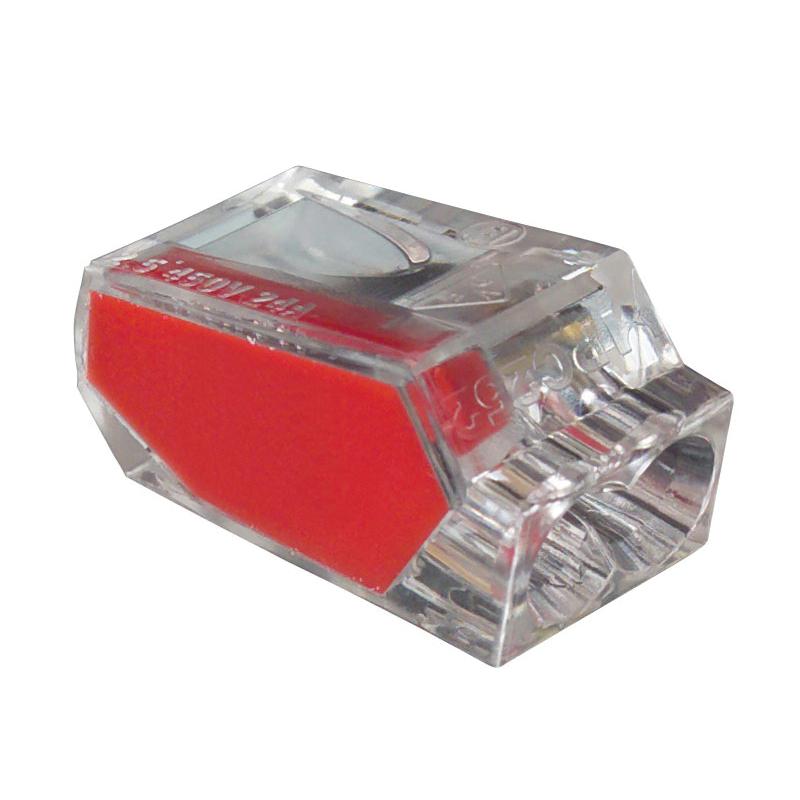

GB® Wire Connector, Series: PushGard™ Series, Model: PC2, 22 to 12 AWG Wire, 600/1000 V, Solid Cable, Push-In Mount, 0.43 in Wire Strip Length, Polycarbonate, Clear, 0.77 in Length, 0.41 in Width, 0.37 in Height
| Cable Type | : | Solid |
| Color | : | Clear |
| Height | : | 0.37 in |
| Length | : | 0.77 in |
| Material | : | Polycarbonate |
| Model | : | PC2 |
| Mounting Type | : | Push-In |
| Series | : | PushGard™ Series |
| Voltage Rating | : | 600/1000 V |
| Width | : | 0.41 in |
| Wire Size | : | 22 to 12 AWG |
| Wire Strip Length | : | 0.43 in |
- Simplified insertion and compact size helps in tight locations
- Continuity test point for easy voltage checks
