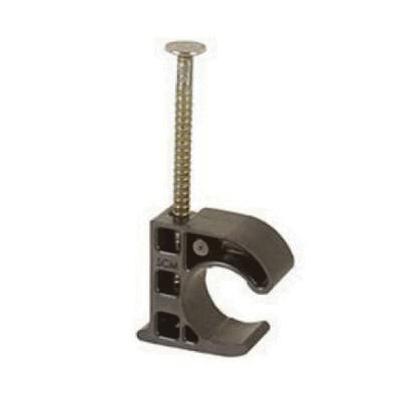

Sioux Chief 556 Series Pick-up Talon™ CTS pipe fasteners shall be used where necessary to secure CTS copper, PEX or CPVC tube in piping systems. Fastener shall be 100% corrosion-proof and UV-resistant. Fastener shall be impact-resistant to 0 deg F and be able to withstand continuous temperatures up to 160 deg F. Fastener shall have a pre-loaded nail or screw which shall be rust-resistant, zinc-plated or stainless. Pre-loaded nail shall have a continuous rink shank to provide a more permanent installation. Fasteners shall protect tube from abrasive mounting surface and help to eliminate ticking noises. Fastener shall snap on to CTS tube for easy installation and shall allow for expansion and contraction of tube with less noise. Fastener shall be designed to avoid tube damage if nail or screw is over driven.
Sioux Chief Hanger, 556 Series, 3/4 in Tube, 16 lb Load, Polyethylene, 1.39 in Length, 0.4 in Width, 1.378 in Height, 160 deg F, For Use With: Copper, PEX and CPVC Tubes, Additional Information: CTS Connection Type
| Additional Information | : | CTS Connection Type |
| Height | : | 1.378 in |
| Length | : | 1.39 in |
| Load Capacity | : | 16 lb |
| Material | : | Polyethylene |
| Mounting Hole Diameter | : | 3/4 in |
| Mounting Type | : | Surface |
| Series | : | 556 Series |
| Suitable For Use With | : | Copper, PEX and CPVC Tubes |
| Temperature Rating | : | 160 deg F |
| Tube Size | : | 3/4 in |
| Width | : | 0.4 in |
- The most affordable solution to keeping tube off the mounting surface for a quiet system
- Installation is fast and easy, snaps onto tube with preloaded nails or screws
- Install in alternating directions to secure piping
- All models with screws feature self-drilling tips
Specification Sheet
