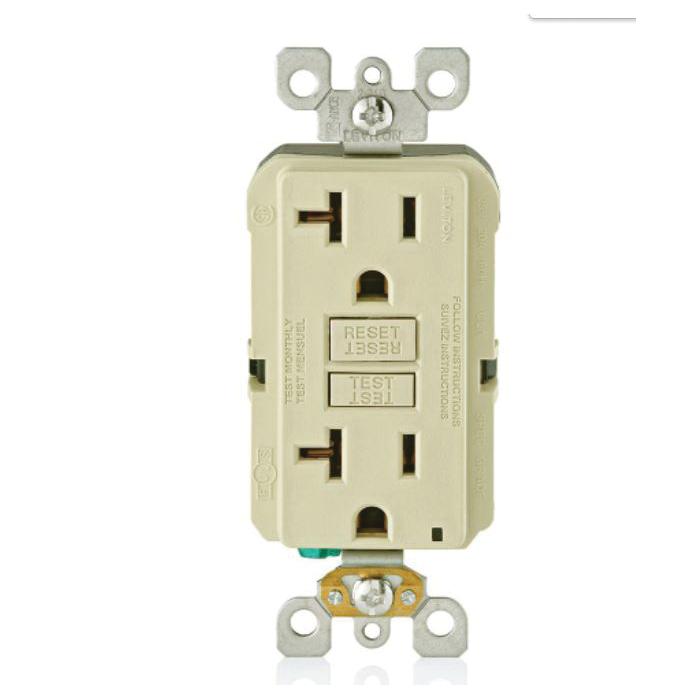

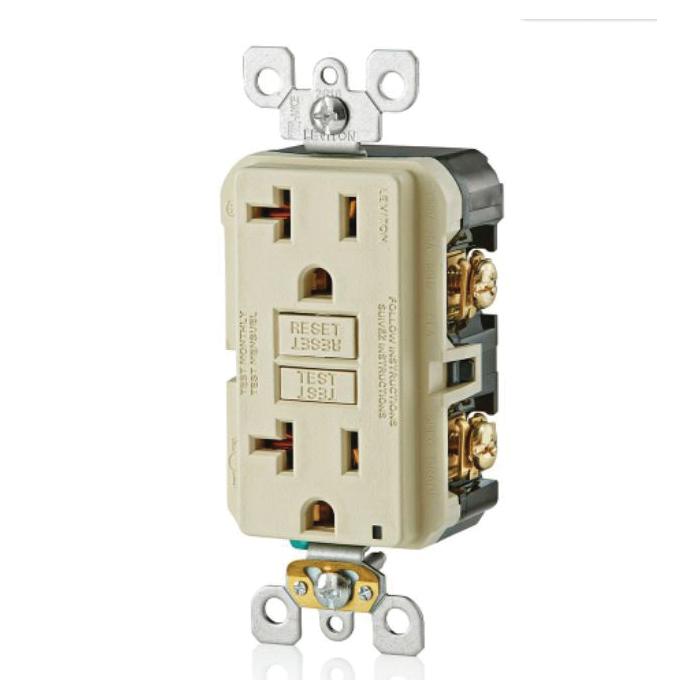

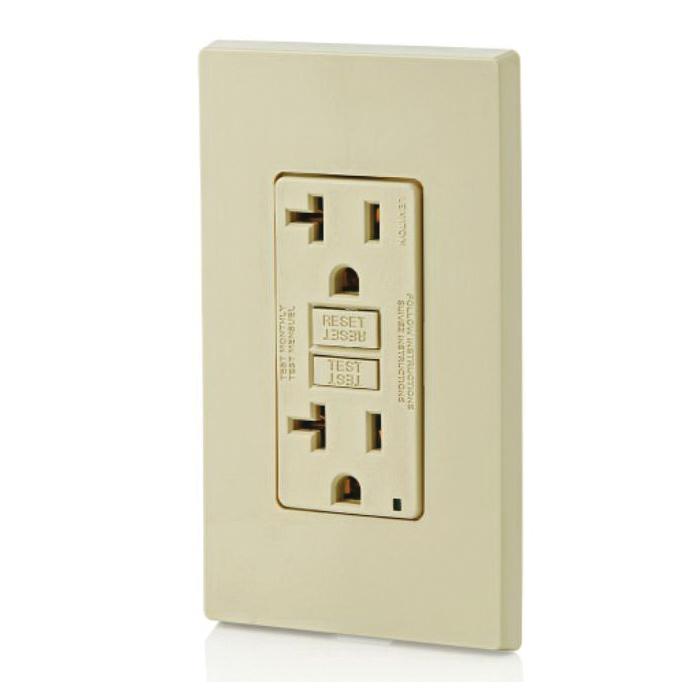

SmartlockPro® Duplex GFCI Receptacle/Outlet, 125 VAC, 20 A, 1 hp, 10 kA Short Circuit, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA Rating: NEMA 5-20R, 1250 VAC Dielectric Strength, LED Indicator, Bracket Mounting, Back Wired, Side Wired Terminal, Polycarbonate Body, Brass Contact, Ivory, -35 to 66 deg C, 1.4 in Length, 1.69 in Width, 4.21 in Height, Additional Information: Zinc-Plated Steel Yoke, Plated Steel Terminal, Thermoplastic Face, 14 to 18 in-lb Torque, 1 hp, Galvanized Steel Strap
| Additional Information | : | Zinc-Plated Steel Yoke, Plated Steel Terminal, Thermoplastic Face, 14 to 18 in-lb Torque, 1 hp, Galvanized Steel Strap |
| Amperage Rating | : | 20 A |
| Body Material | : | Polycarbonate |
| Color | : | Ivory |
| Contact Material | : | Brass |
| Dielectric Strength | : | 1250 VAC |
| Grounding | : | Self-Grounding |
| Height | : | 4.21 in |
| Indicator Type | : | LED |
| Length | : | 1.4 in |
| Mounting Type | : | Bracket |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Power Rating | : | 1 hp |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.69 in |
| Wire Size | : | 14 to 10 AWG |
- Safe - delivers continuous ground fault protection
- Self-testing - automatically self-tests to ensure it can respond to ground fault
- Simple - status indicator light provides simple, intuitive feedback
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 s
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all decora devices and wallplates
