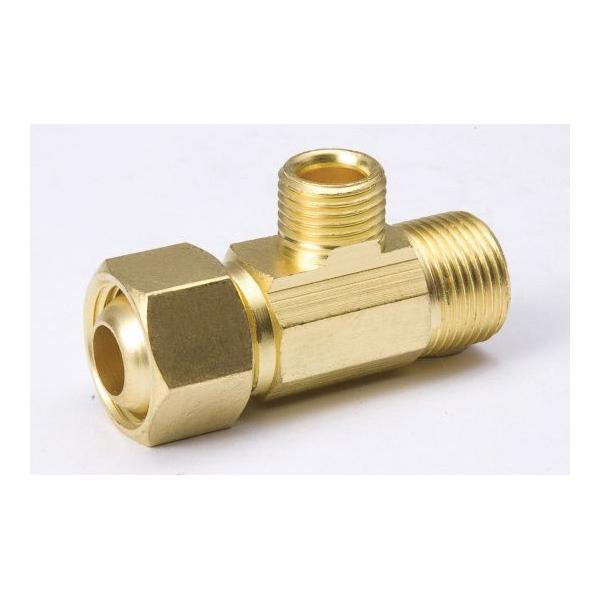

The EZ Connect™ tee is ideal for adding connection points to supply water to several appliances. This can be used when installing an icemaker, dishwasher, under the counter water filter, hot water dispenser or any other appliance that uses 1/4 in or 3/8 in OD copper or plastic tubing. Brass construction allows this for a long durable product lifetime and is lead-free.
ProLine™ SERIES EZ Connect™ Supply Stop Extender Tee, Tee Fitting, 3/8 in Connection Size 1, Compression Connection Type 1, 3/8 in Connection Size 2, Compression Connection Type 2, 1/4 in Connection Size 3, Compression Connection Type 3, Compression|Compression|Compression Connection, Brass, Brass Material Construction, For Use With: 1/4 in or 3/8 in OD Copper or Plastic Tubing, 0.93 in L x 1.61 in W x 0.57 in H, 100 psi, 40 to 160 deg F
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Size 3 | : | 1/4 in |
| Connection Type 1 | : | Compression |
| Connection Type 2 | : | Compression |
| Connection Type 3 | : | Compression |
| Connection Type | : | Compression|Compression|Compression |
| Dimensions | : | 0.93 in L x 1.61 in W x 0.57 in H |
| Fitting Type | : | Tee |
| For Use With | : | 1/4 in or 3/8 in OD Copper or Plastic Tubing |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 40 to 160 deg F |
- Easy swivel screw-on hookup requires no drilling or extra valves
- Fitting to create a branch outlet from a supply stop
- Multiple max adapters can be used to connect more than one accessory
- Brass construction provides corrosion resistance
- Supply stops sold separately
