Broan features classic ventilation fan/light combinations which easily fit any decor. Why stop at just powerful ventilation when you can add extra lighting to help brighten any room.

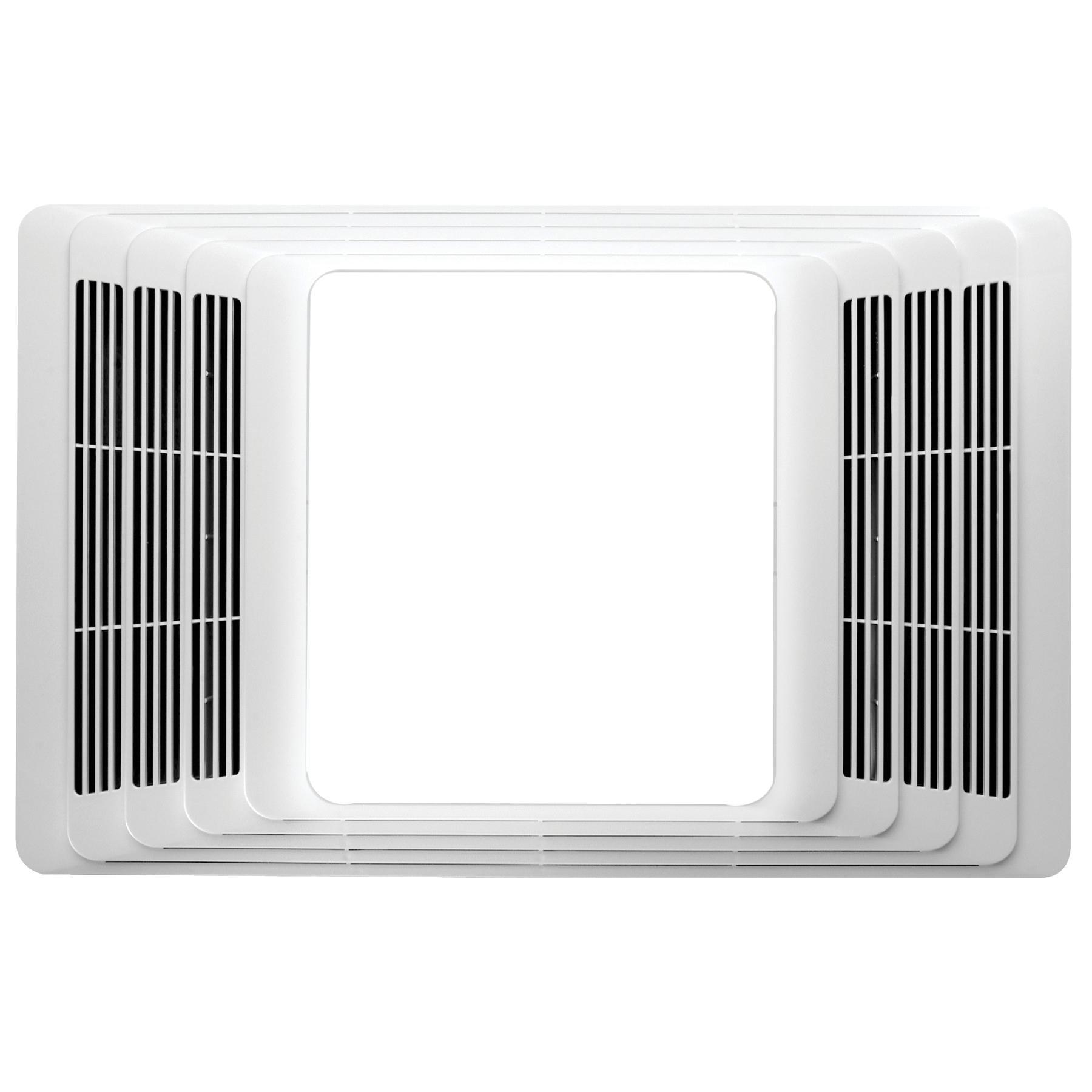

Broan-NuTone® Bath Fan/Light, 120 VAC, 2 A, 90 W Fixture, 23 ga Steel, Polymeric, White, Ceiling Mount, 14-1/4 in Length, 8-1/4 in Width, 5-3/4 in Height, 16-3/4 in L x 10-5/8 in W Grille, 100 cfm, 4 in Duct
| Amperage Rating | : | 2 A |
| CFM Rating | : | 100 cfm |
| Color | : | White |
| Duct Size | : | 4 in |
| Grille Size | : | 16-3/4 in L x 10-5/8 in W |
| Height | : | 5-3/4 in |
| Length | : | 14-1/4 in |
| Material | : | 23 ga Steel, Polymeric |
| Mounting Type | : | Ceiling |
| Power Rating | : | 90 W Fixture |
| Voltage Rating | : | 120 VAC |
| Width | : | 8-1/4 in |
- Bath Fan/Light
- Designer styled white polymeric grille complements virtually any decor
- Bright 100 W light capacity (bulb not included)
- Housing lined with 1/2 in acoustic insulation
- Type IC (insulation contact)
- Use with model 68 W or 68 V two-function control (available separately)
- Does not include heater
- Two blower wheels, each powered by its own permanently lubricated plug-in motor, quietly deliver high-efficiency performance
- Built-in damper prevents backdrafts and eliminates metallic clatter
- Adjustable, slotted-mounting brackets span upto 24 in for easy installation
- Polymeric 4 in round duct features a 2 in long tapered sleeve for easy, positive ducting
- Horizontal duct direction
- 16-3/4 in L x 10-5/8 in W white polymeric grille
- 2 x 6 in minimum construction space required
- (1) incandescent lamp
- Snap-in light diffusing lens
- Acoustic Insulation
