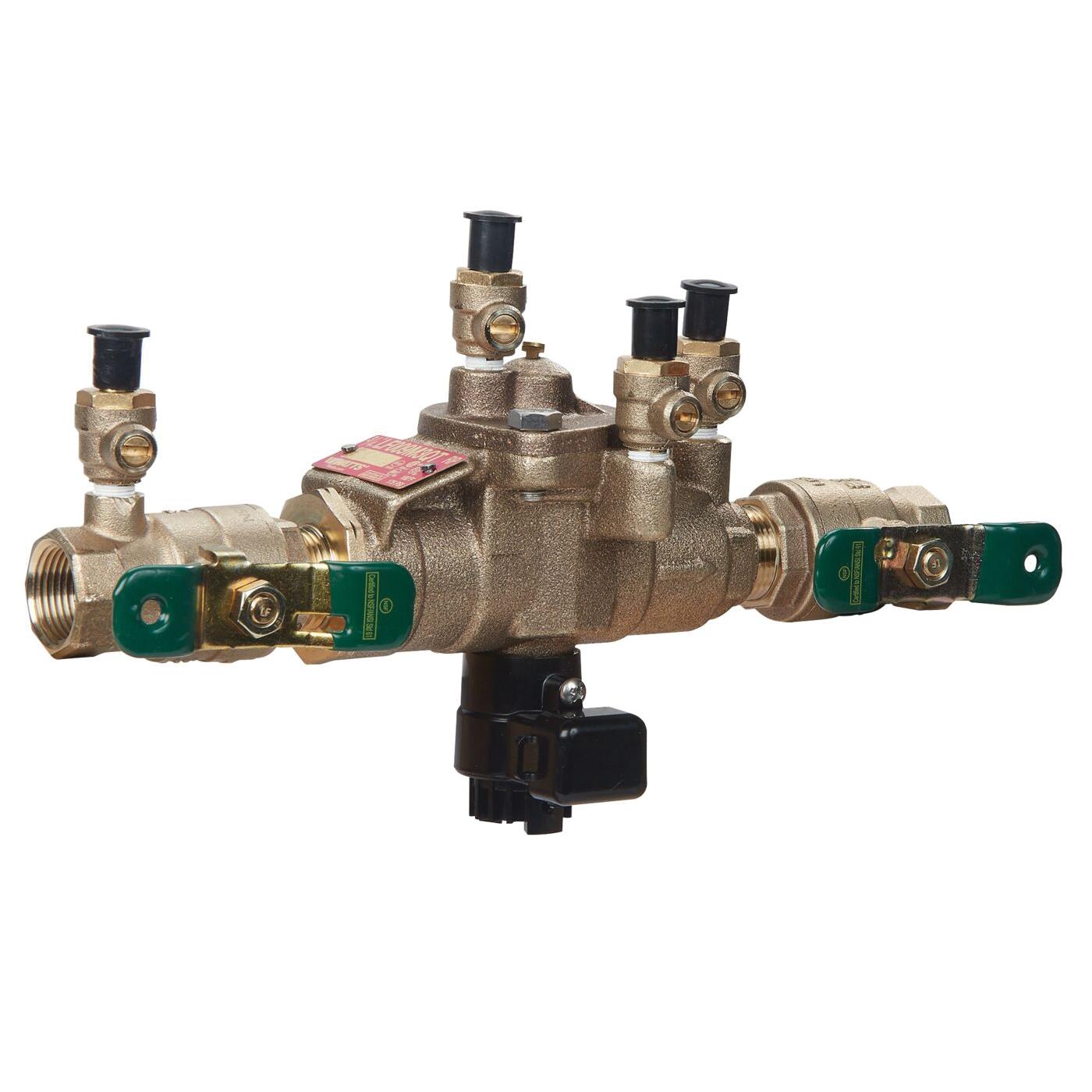

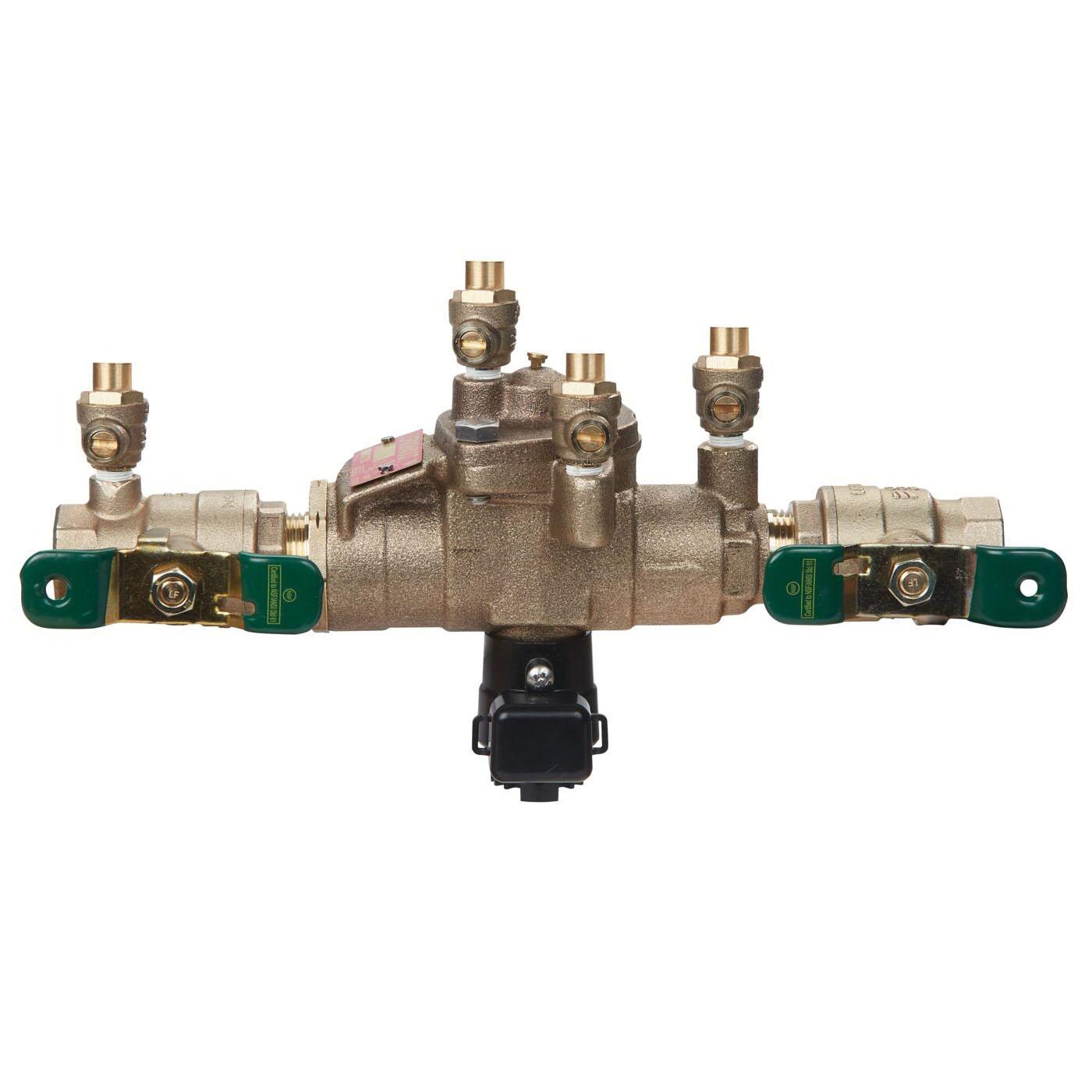

This 3/4 in reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to back siphonage and or back pressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body, NPT end connections, 1/4-turn ball valve shut-off with tee handles, top-mounted test cocks, two in line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. add-on sensor connection kits are available for both BMS and cellular communications.
WATTS® Reduced Pressure Zone Assembly Backflow Preventer, 009 Series, 3/4 in Nominal, FNPT Connection, Full Port, 175 psi Pressure, Media: Water, 10-3/4 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, T-Handle Operator, Bronze Body, 33 to 180 deg F, Dimensions: 6-1/4 in H, Additional Information: Engineered Plastic Seat, Inline Pattern, Silicone Disc
| Additional Information | : | Engineered Plastic Seat, Inline Pattern, Silicone Disc |
| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| Dimensions | : | 6-1/4 in H |
| Inlet to Outlet Length | : | 10-3/4 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Operator Type | : | T-Handle |
| Port Type | : | Full |
| Pressure Rating | : | 175 psi |
| Series | : | 009 Series |
| Temperature Rating | : | 33 to 180 deg F |
| Top to Inlet Center | : | 3-1/2 in |
- Features flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Bronze body construction for durability
- NPT inlet and outlet connections
- 1/4-turn full-port resilient seated ball valve shut-off
- Single access cover and modular check construction for the ease of maintenance
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Test cocks are screwdriver slotted
