Dayton® offers a complete line of sinks, drains and accessories. From under-mount, universal or top-mount styles, Dayton® sinks come in nearly every size and configuration and offer product lines and packages to meet every budget. All backed with the quality assurance of domestic manufacturing and customer care that is Dayton®.

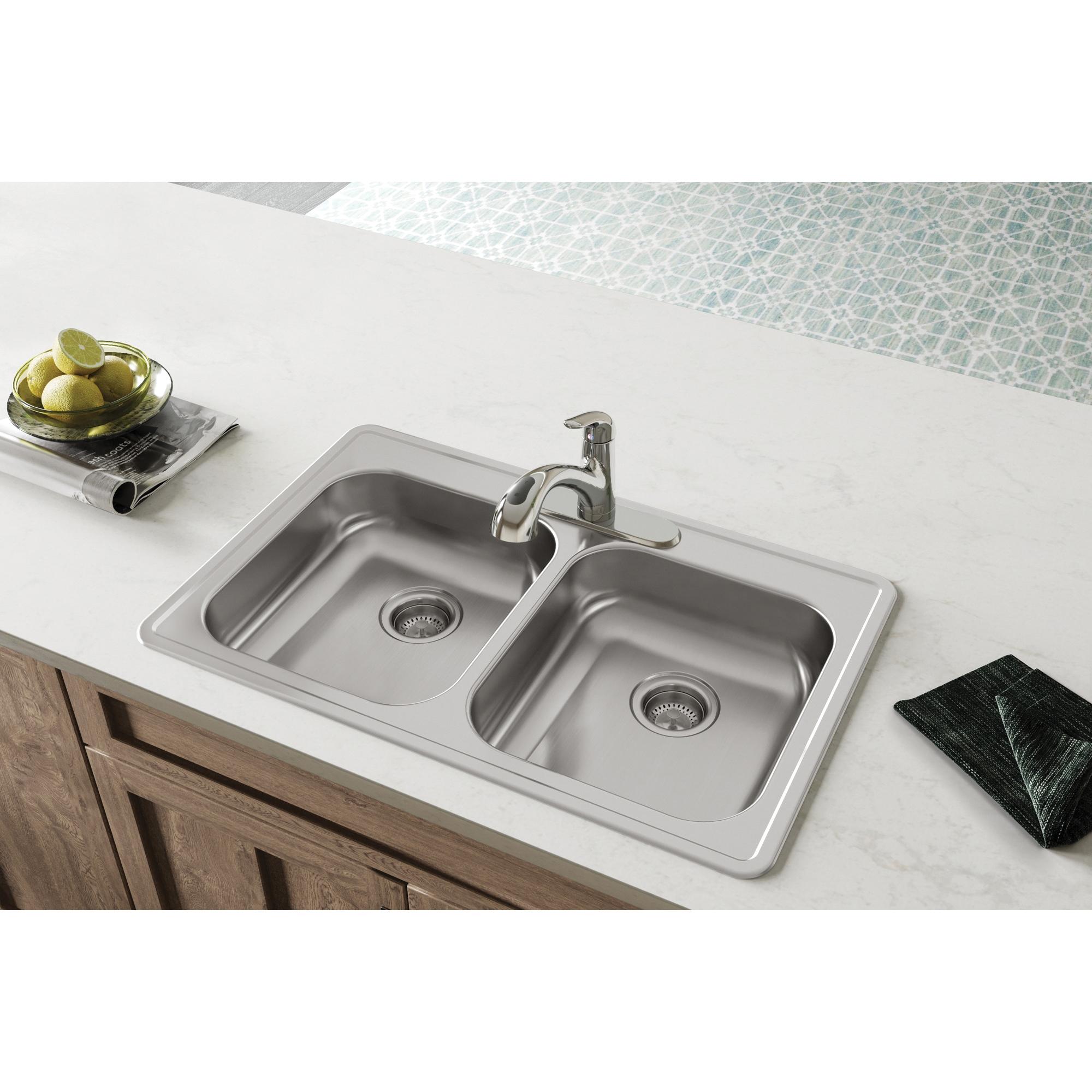

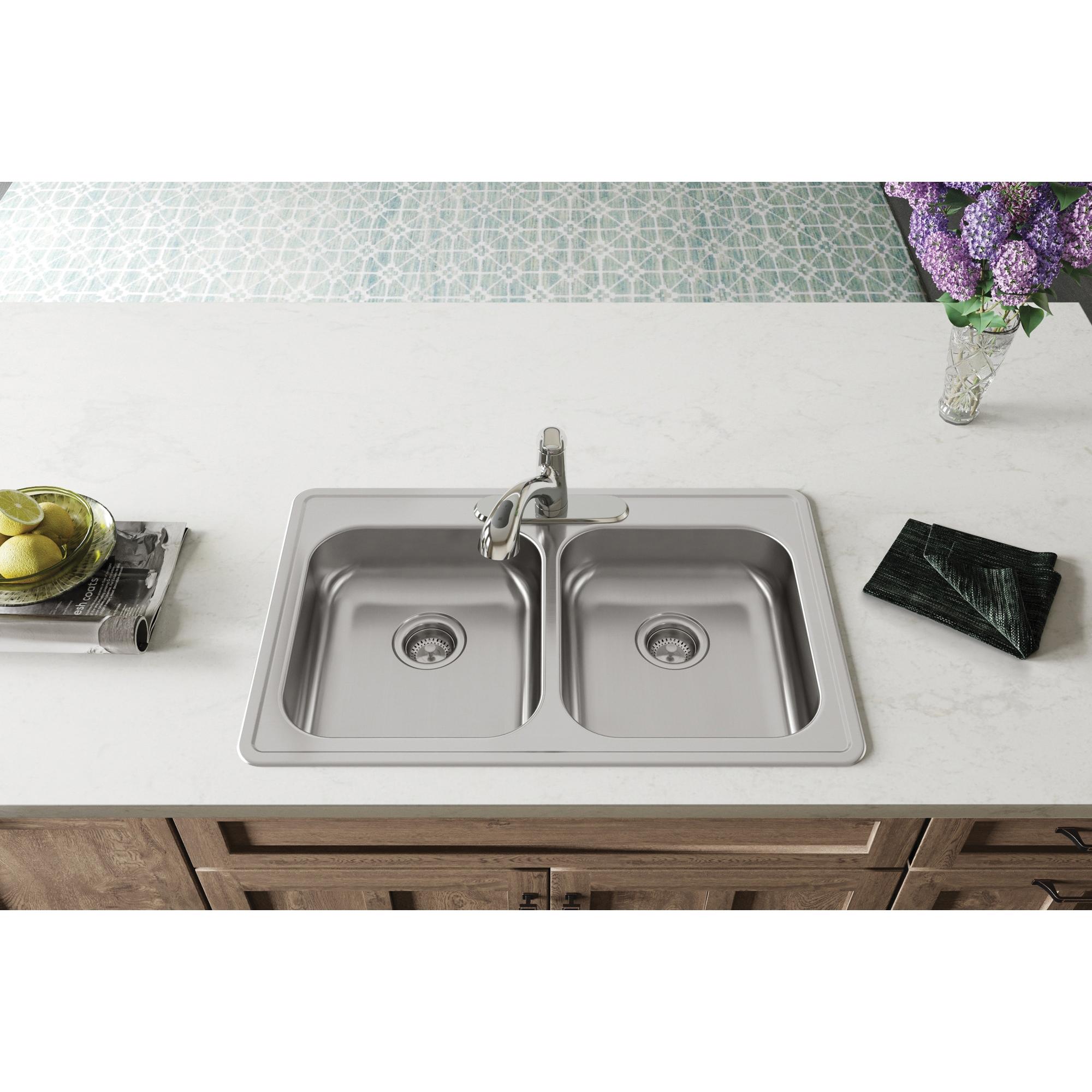

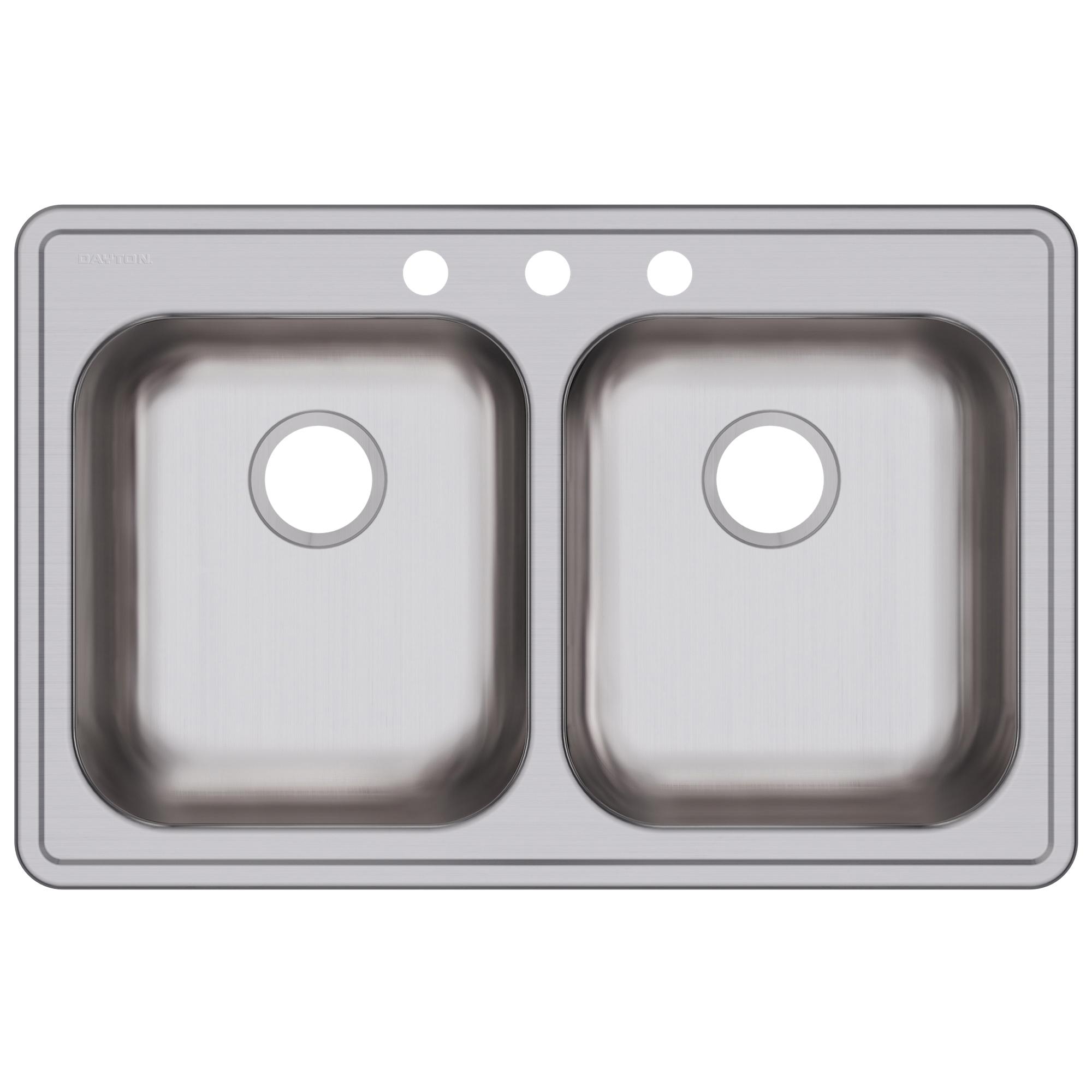

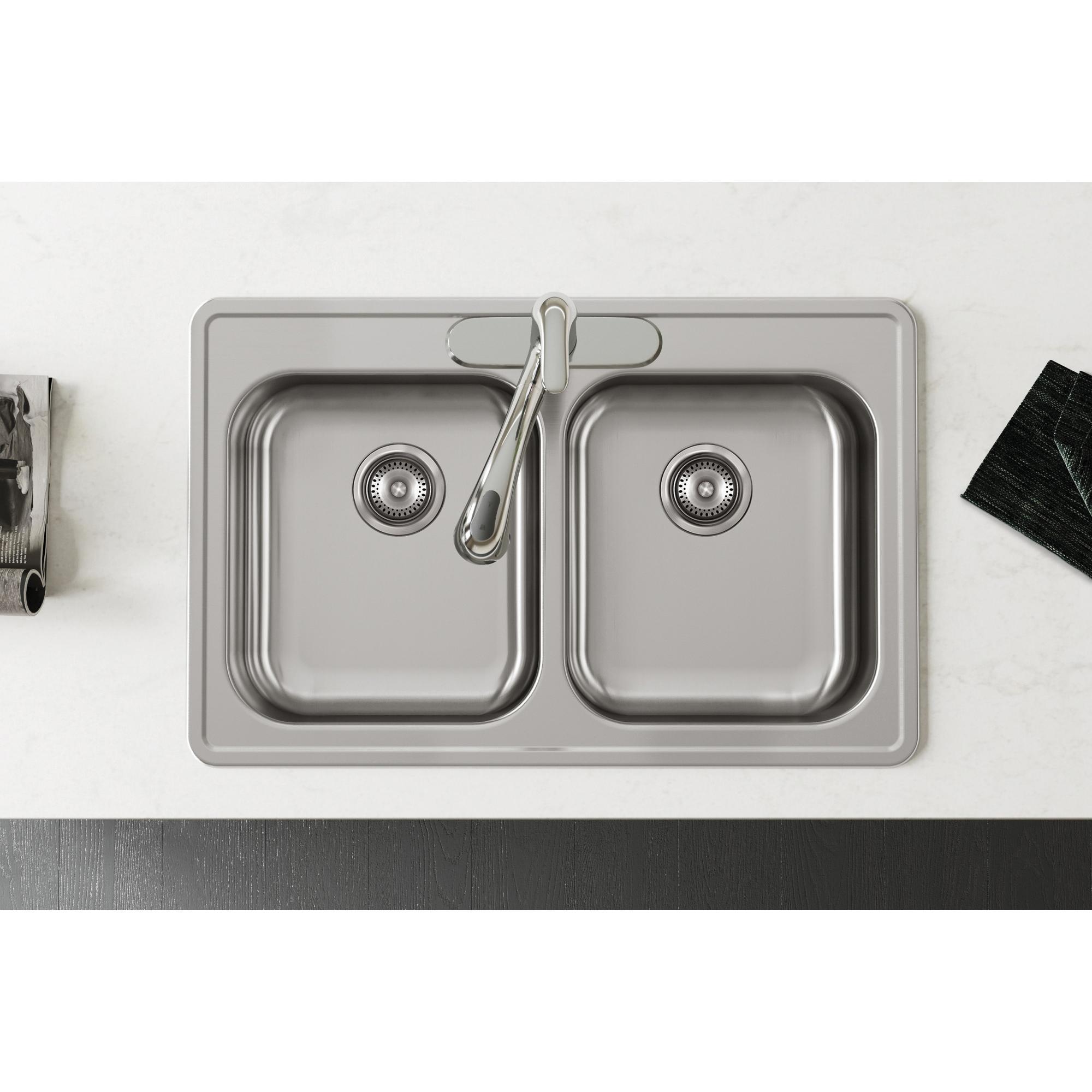

Elkay® Sink, Traditional Theme/Style, Rear Center Drain Location, 3-1/2 in Drain, 4 in Faucet Center, 22 ga Gauge, Stainless Steel, Satin, 3 Holes, Drop-In Mounting, 2 Bowls, Rectangular Shape, 14 in L x 15-3/4 in W x 5-1/4 in D Sink Bowl Size (Right), Sink Bowl Size (Single or Left): 14 in L x 15-3/4 in W x 5-1/4 in D, 36 in Minimum Cabinet, 32-3/8 in L x 20-5/8 in W Cutout, 1-1/2 in Faucet Hole, 33 in Length, 21-1/4 in Width, 5.38 in Height, Domestic/Import: Domestic
| Cutout Size | : | 32-3/8 in L x 20-5/8 in W |
| Domestic/Import | : | Domestic |
| Drain Location | : | Rear Center |
| Drain Size | : | 3-1/2 in |
| Faucet Center Size | : | 4 in |
| Faucet Hole Size | : | 1-1/2 in |
| Finish | : | Satin |
| Gauge | : | 22 ga |
| Height | : | 5.38 in |
| Length | : | 33 in |
| Material | : | Stainless Steel |
| Minimum Cabinet Size | : | 36 in |
| Mounting Type | : | Drop-In |
| Number of Bowls | : | 2 |
| Number of Holes | : | 3 |
| Shape | : | Rectangular |
| Sink Bowl Size (Right) | : | 14 in L x 15-3/4 in W x 5-1/4 in D |
| Sink Bowl Size (Single or Left) | : | 14 in L x 15-3/4 in W x 5-1/4 in D |
| Theme/Style | : | Traditional |
| Width | : | 21-1/4 in |
- Product is ADA compliant when properly installed
- Sink is designed for drop-in installation to make the sink a focal point of your room
- Double bowls of equal size - conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
- 300 Series stainless steel designed for everyday use
- Material is naturally sound deadening, minimizing sound and vibration for a quieter time at the sink
- U channel installation - mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- Offset drain - drain placement provides more usable space on the bottom of the sink and in the cabinet below
- Large capacity - straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes, easy-to-clean
- 22 ga stainless steel - commercial-grade 22 ga THK and 300 Series stainless steel for everyday use
- This Elkay® product is proudly made in the USA
