A perfect union of practicality and aesthetics, the Reach™ chair height toilet features a modern design with skirted trapway that's sleek and easy to keep clean. Installation is easy with the ReadyLock™ system the skirted trapway installs to the floor flange and attaches to the toilet, eliminating the need to drill holes while offering the same secure installation as non-skirted toilets.
Kohler® One-Piece Toilet, Reach™ Comfort Height® Collection, Theme/Style: Modern, 1.28 gpf Flush Rate, AquaPiston® Flush, 12 in Rough-In, 9-1/8 x 8-1/2 in Water Surface Area, 2-1/8 in Trapway, 2 in Flush Valve, Quiet-Close with Grip Tight Seat, Left Trip Lever Handle, Gravity Flushing System, Floor Mounting, 3/8 in Connection, NPT Connection, Elongated Bowl, 9-9/16 in W x 16-1/2 in H x 24-3/8 in D Bowl, Vitreous China, White, 13-5/8 in W x 29 in H x 28-5/8 in D
| Bowl Dimensions | : | 9-9/16 in W x 16-1/2 in H x 24-3/8 in D |
| Bowl Shape | : | Elongated |
| Collection | : | Reach™ Comfort Height® |
| Color | : | White |
| Connection Size | : | 3/8 in |
| Connection Type | : | NPT |
| Dimensions | : | 13-5/8 in W x 29 in H x 28-5/8 in D |
| Flush Rate | : | 1.28 gpf |
| Flush Type | : | AquaPiston® |
| Flush Valve Size | : | 2 in |
| Flushing System | : | Gravity |
| Handle Type | : | Left Trip Lever |
| Material | : | Vitreous China |
| Mounting Type | : | Floor |
| Rough-In Size | : | 12 in |
| Seat Type | : | Quiet-Close with Grip Tight |
| Theme/Style | : | Modern |
| Trapway Size | : | 2-1/8 in |
| Water Surface Area | : | 9-1/8 x 8-1/2 in |

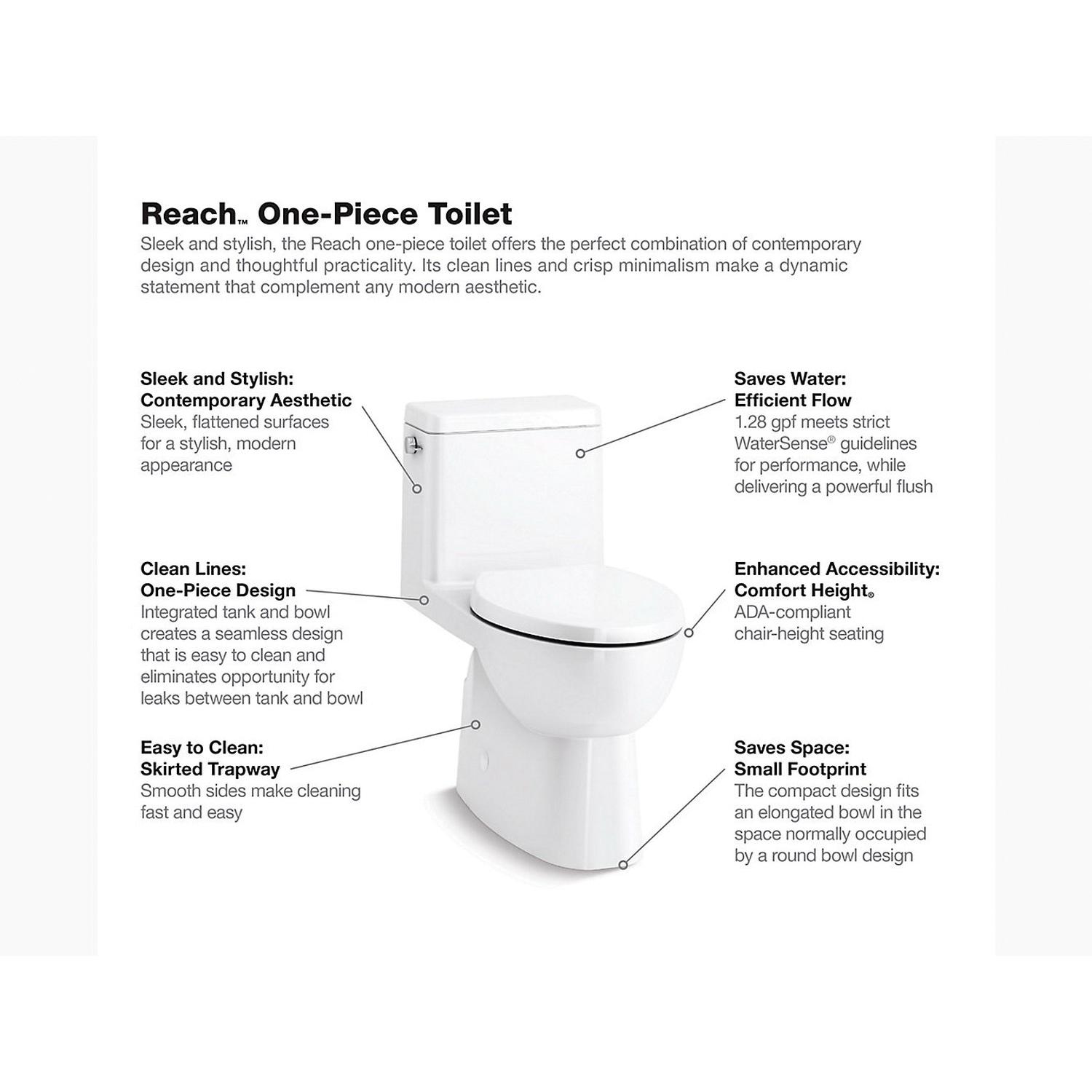

- One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design
- Elongated bowl offers added room and comfort
- Skirted trapway simplifies cleaning
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- Left hand polished chrome trip lever
- Patented ReadyLock™ installation system, a simple solution for skirted toilets, saves time, hassle and eliminates the need to drill into the floor for standard 12 in (305 mm) rough-in
- Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl and trapway to create a strong siphon during flushing
- AquaPiston® canister allows water to flow out of the tank from all sides (360 deg), increasing the power and effectiveness of the flush
- Flush valve's 3:2 ratio harnesses the natural force of gravity and optimizes flush performance
- Durable canister design has 90% less exposed seal material than a 3 in flapper for leak-free performance
- Light-touch canister flush requires a lower actuation force than a flapper
- Supply line sold separately
Instruction/Installation Manual
