BrassCraft® CR1900LX-R1 62265
  1. pin-int

BrassCraft® CR1900LX-R1 62265

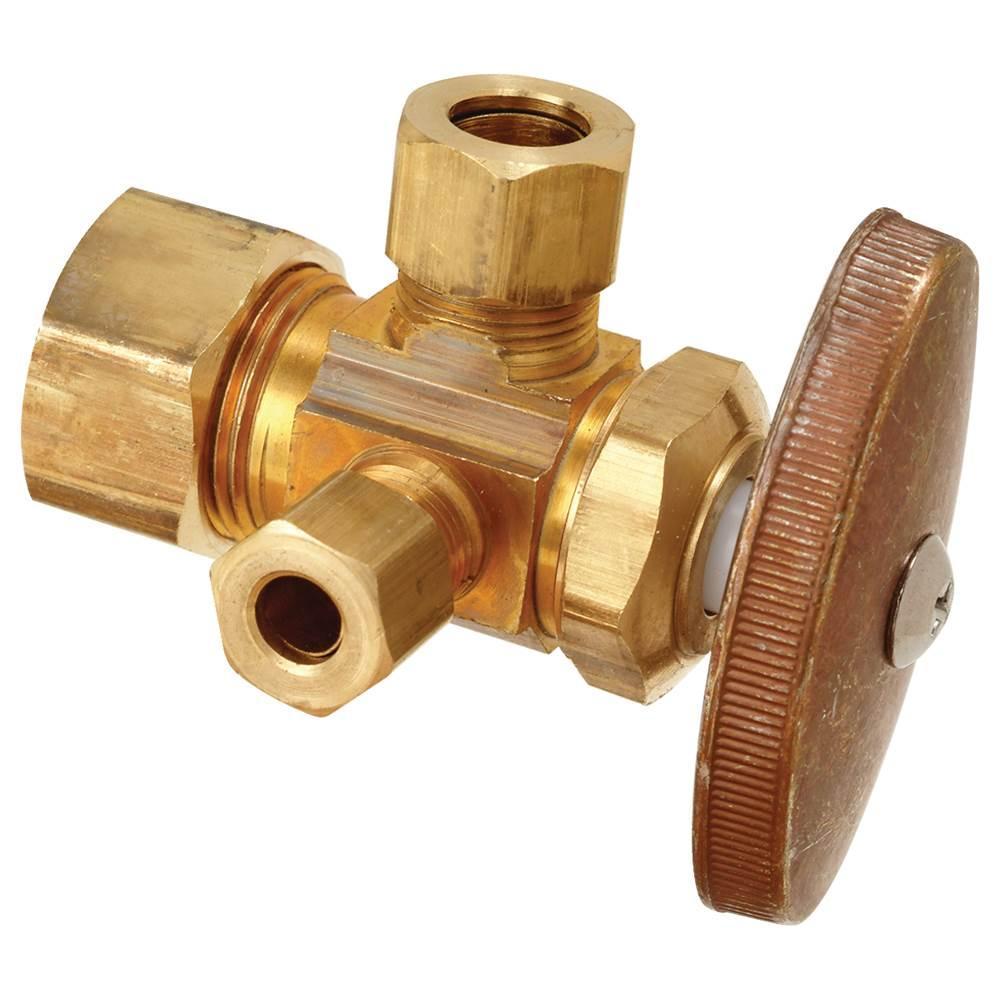

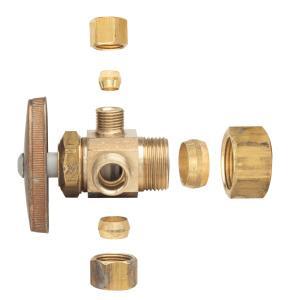

BrassCraft® CR1900LX-R1 Dual Outlet Multi-Turn Stop Valve, 1/2 x 3/8 x 1/4 in Nominal, Compression, Handle Actuator

  • Manufacturer: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • Part#: 62265
  • MPN: CR1900LX-R1
  • UPC: 026613138237
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

BrassCraft® 1/2 in nominal compression inlet x 3/8 in OD compression x 1/4 in OD compression (left side) dual outlet multi-turn valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

BrassCraft® Dual Outlet Multi-Turn Stop Valve, 1/2 x 3/8 x 1/4 in Nominal, Compression Connection, 125 psi, Brass/POM Trim, Rubber Softgoods, Brass Body, ABS/Polycarbonate Handle, Handle Actuator, Finish: Rough, 40 to 160 deg F, For Use With: Copper Piping and Potable Water Distribution Systems, Additional Information: 1.06 in Top to Inlet Center, Lead-Free

Actuator Type      :      Handle
Additional Information      :      1.06 in Top to Inlet Center, Lead-Free
Body Material      :      Brass
Connection Type      :      Compression
Finish      :      Rough
Handle Material      :      ABS/Polycarbonate
Lead-Free/Contains Lead      :      Lead-Free
Nominal Size      :      1/2 x 3/8 x 1/4 in
Pressure Rating      :      125 psi
Softgoods Material      :      Rubber
Stem Material      :      Brass/POM
Suitable For Use With      :      Copper Piping and Potable Water Distribution Systems
Temperature Rating      :      40 to 160 deg F
Top to Inlet Center      :      1.06 in
Trim Material      :      Brass/POM
  • Machined one piece brass body provides strength, durability and long-lasting performance
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval knurled handle provides a secure grip for on/off operation
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • For indoor use
  • No lead certified
  • Designed, machined and assembled in the USA
