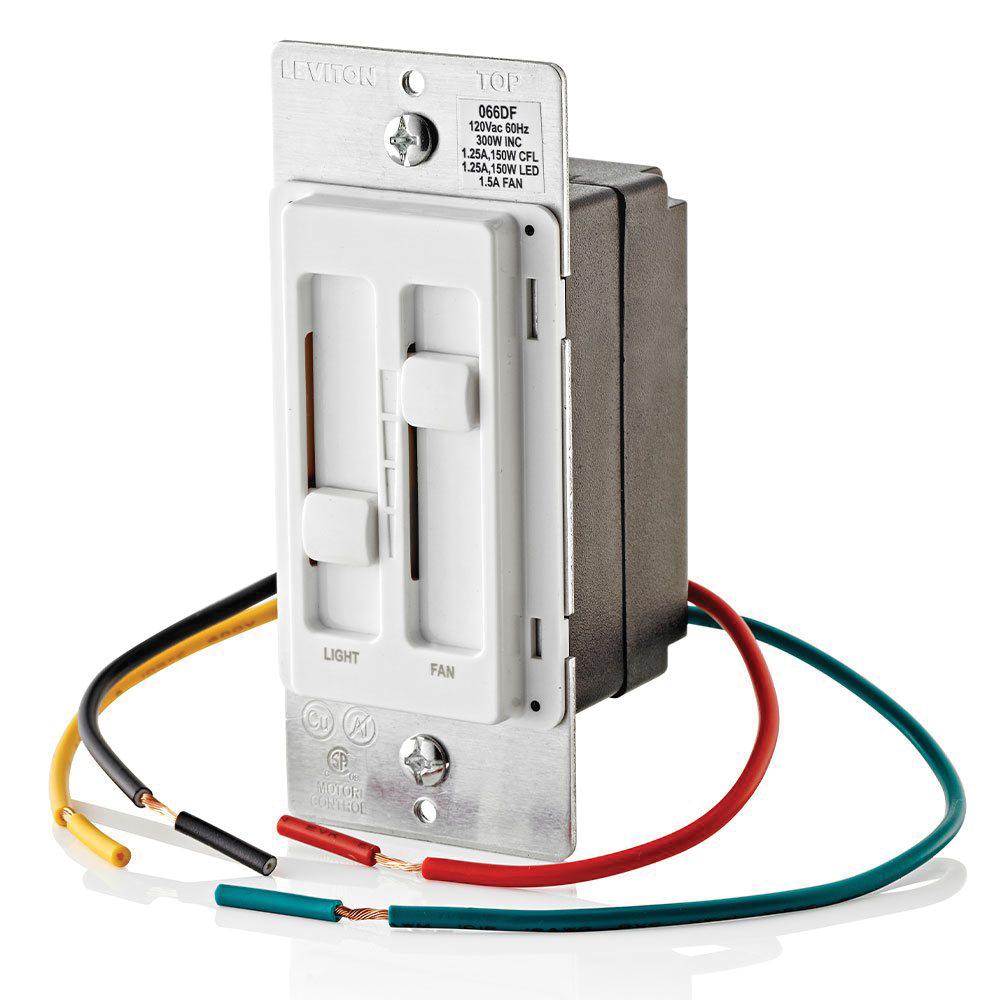

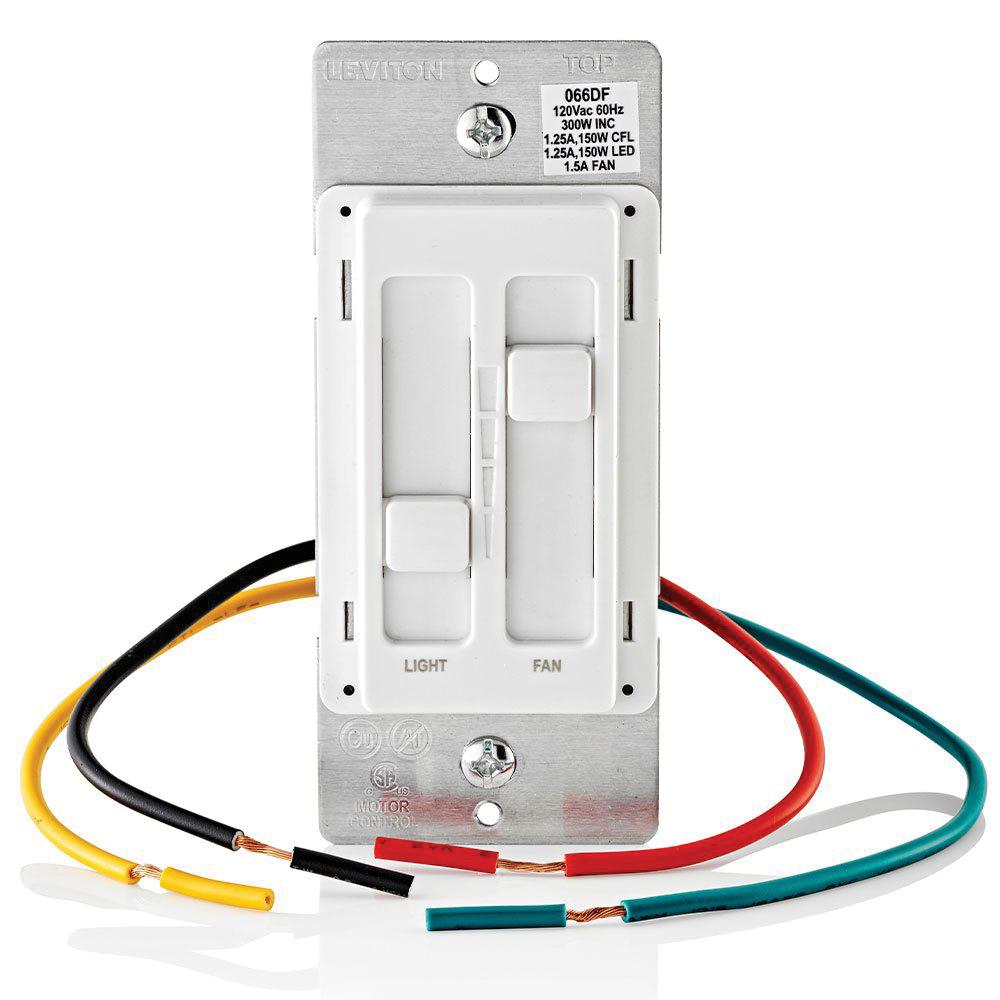

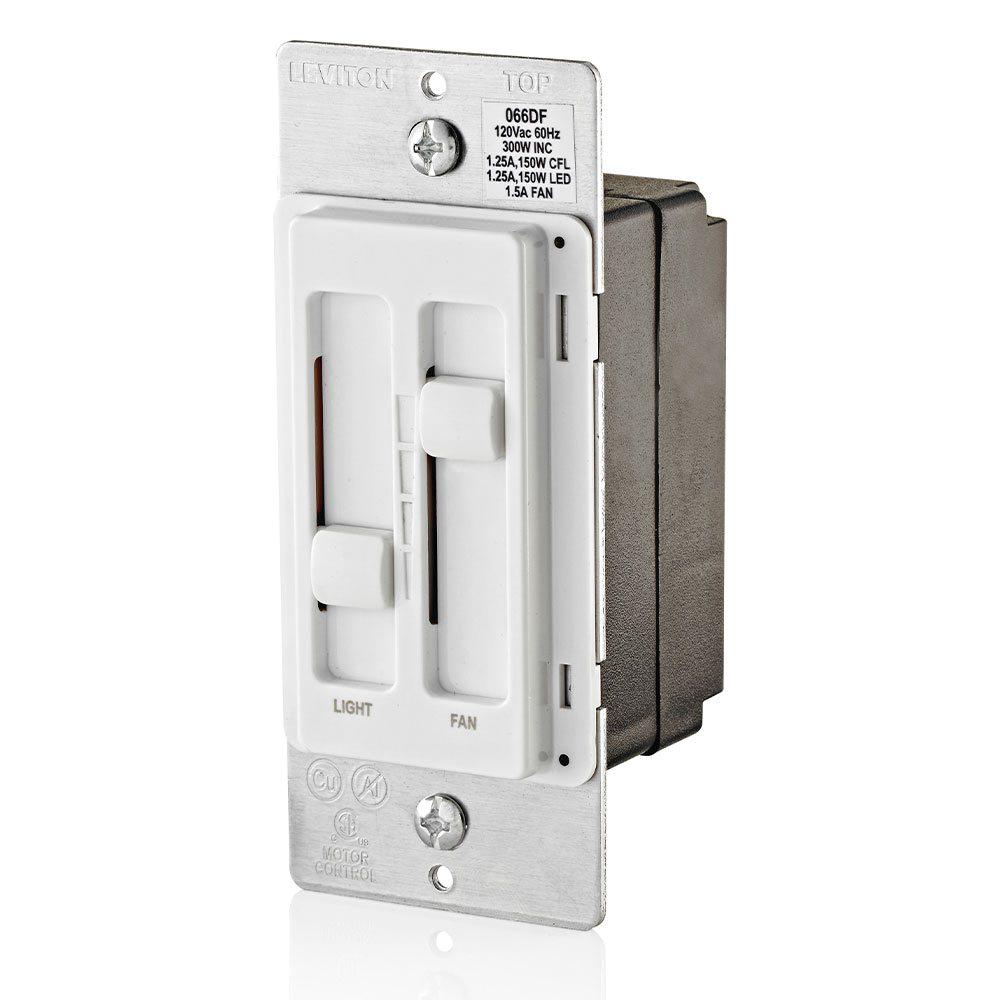

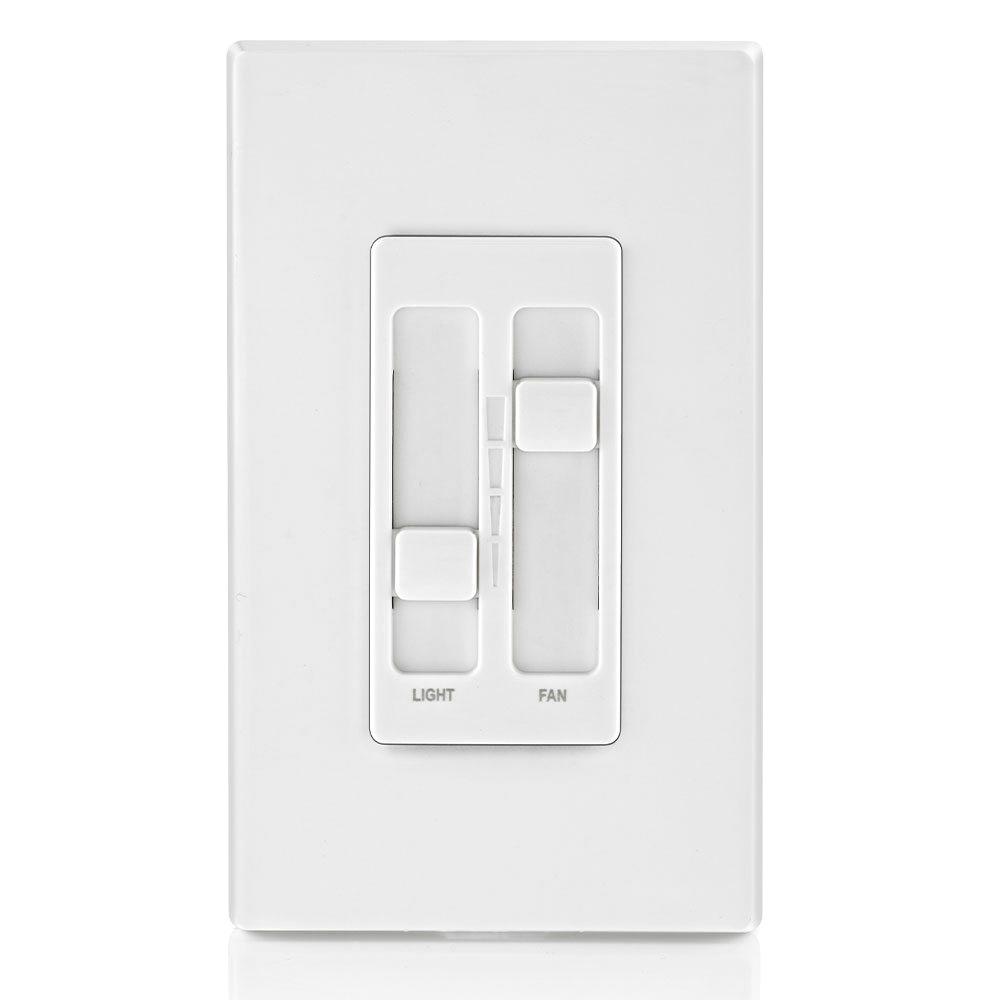

Leviton® SureSlide® Quiet Fan and Light Control, 120 VAC, 1.5 A, 150 W, 300 W, 60 Hz, 1 Poles, Dimmable CFL, Dimmable LED, Fan, Incandescent Load, White
| Amperage Rating | : | 1.5 A |
| Color | : | White |
| Frequency Rating | : | 60 Hz |
| Load Type | : | Dimmable CFL, Dimmable LED, Fan, Incandescent |
| Number of Poles | : | 1 |
| Power Rating | : | 150 W, 300 W |
| Voltage Rating | : | 120 VAC |
- Convenient - designed to work with ceiling fans with lights, separate slide controls for fan speed and dimmer
- Innovative single pole dimmer designed specifically to dim LED bulbs, also works with incandescent, halogen and CFL bulbs
- Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
- Unique special circuitry reduces fan motor noise at low speed, choice of low, medium or high fan speeds
- Integrated linear full-range slide control for easy, precise operation
- Separate controls for fan speed and light level selection
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations
- Built-in radio/TV interference filter
- Compatible with Decora® wall plates and Decora® Plus screwless wall plates
