Leviton®'s line of heavy-duty specification-grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial-grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

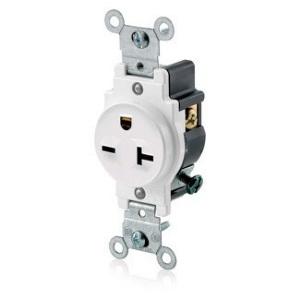

Leviton® Smooth Face Straight Blade Single Receptacle, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, Commercial, Specification Grade, NEMA Rating: NEMA 6-20R, 2000 V Dielectric Strength, Grounding Grounding, Side Wired Terminal, 14 to 10 AWG Conductor, Nylon Housing, Brass Contact, Steel Strap, White, -40 to 60 deg C, 1.06 in Length, 1.38 in Width, 4.06 in Height, Additional Information: 14 to 18 in-lb Torque, Nylon Smooth Face
| Additional Information | : | 14 to 18 in-lb Torque, Nylon Smooth Face |
| Amperage Rating | : | 20 A |
| Color | : | White |
| Conductor Size | : | 14 to 10 AWG |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Commercial, Specification |
| Grounding | : | Grounding |
| HP Rating | : | 2 hp |
| Height | : | 4.06 in |
| Housing Material | : | Nylon |
| Length | : | 1.06 in |
| NEMA Rating | : | NEMA 6-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 250 VAC |
| Width | : | 1.38 in |
