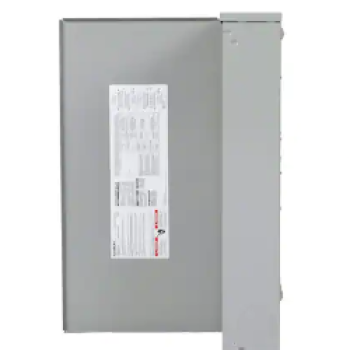

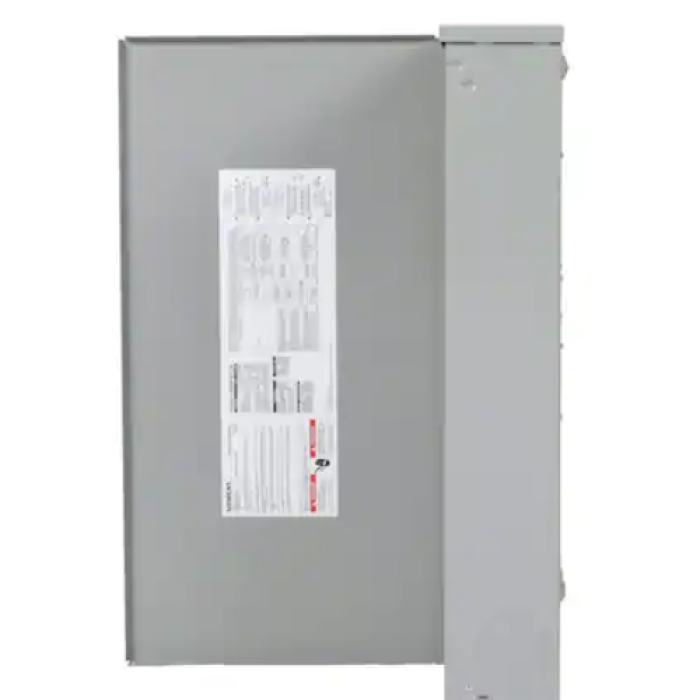

Siemens Standard Main Lug Load Center, Series: READY STANDARD SN Series, 200 A, 120/240 VAC, 100 kA Interrupt, 3-Wire Wiring Configuration, Q Breaker, 1 ph, 24 Spaces, 48 Circuits, Aluminum Bus, Plug-On Neutral Type, Flush, Surface Mount, NEMA 1, Gray, 60 to 75 deg C, 27.13 in H x 15.5 in W, Additional Information: 26 in H x 14-1/4 in W x 3-7/8 in D Box
| Additional Information | : | 26 in H x 14-1/4 in W x 3-7/8 in D Box |
| Amperage Rating | : | 200 A |
| Breaker Type | : | Q |
| Bus Material | : | Aluminum |
| Color | : | Gray |
| Dimensions | : | 27.13 in H x 15.5 in W |
| Enclosure Type | : | NEMA 1 |
| Interrupt Rating | : | 100 kA |
| Mounting Type | : | Flush, Surface |
| Neutral Type | : | Plug-On |
| Number of Circuits | : | 48 |
| Number of Spaces | : | 24 |
| Phase | : | 1 ph |
| Series | : | READY STANDARD SN Series |
| Temperature Rating | : | 60 to 75 deg C |
| Voltage Rating | : | 120/240 VAC |
| Wiring Configuration | : | 3-Wire |
- Invertible
- Bonding screw
- Visible neutrals
- Insta-wire
- Durable hook-rails
- Integrated neutral bus
